Brand new AS-PL Starter motor solenoid
STANDARD LINE
AS-PL
SAWAFUJI
Price:
NZ$ 330.03 including GST
NZ$ 286.98 excluding GST
or four payments of $82.51
with
Learn More
each
SS9287S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

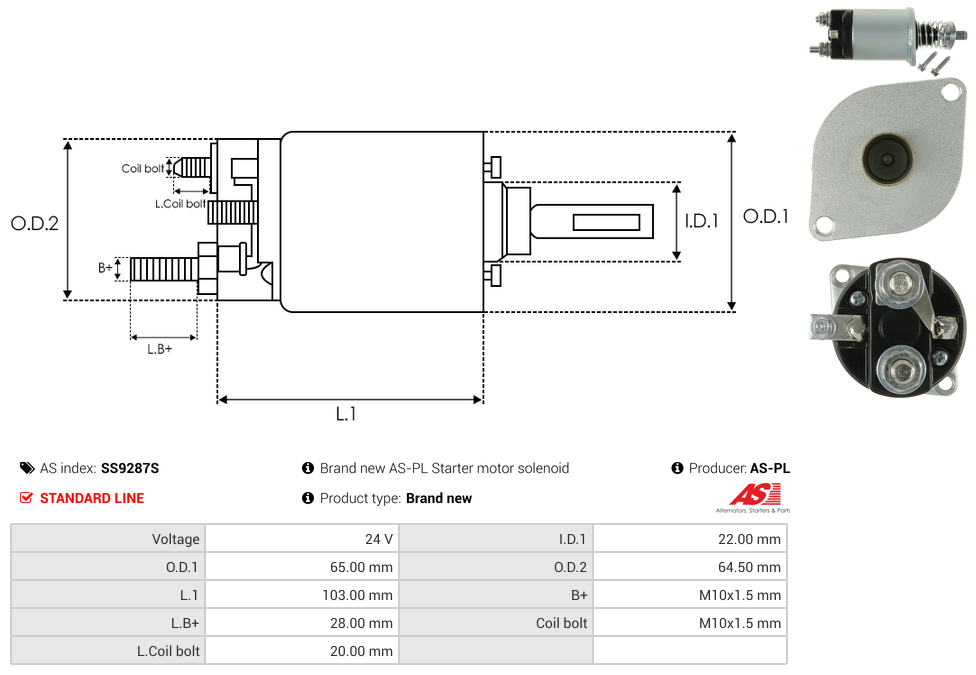

Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M10x1.5 mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M10x1.5 mm |
| Coil Bolt Length | 20 mm |
| Inside Diameter (I.D.1) | 22 mm |
| L.B+ | 28 mm |
| Length (L.1) | 103 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 65 mm |
| Outside Diameter (O.D.2) | 64.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Unit Type | SAWAFUJI |
| Voltage | 24 V |
Reference Information
| 02-0279 | ELG |
| 054.000.689.176 | PSH |
| 1350-101-10X9 | SAWAFUJI |
| 1350-101-11X8 | SAWAFUJI |
| 1350-101-11X9 | SAWAFUJI |
| 136174 | CARGO |
| 28180-1250 | HINO |
| 28180-1251 | HINO |
| 28180-1341 | HINO |
| 81014185 | POWERMAX |
| CQ2030348 | LAUBER |
| F032136174 | CARGO |
| F042011164 | BOSCH |
| SND12039 | WOODAUTO |
| SNLS734A | UNIPOINT |
| SOL9820 | ELECTROLOG |
| SS-2721 | NEW-ERA |
| SSW6174 | KRAUF |
| UD102017SS | AS-PL |
| WOOSND12039 | WOODAUTO |
