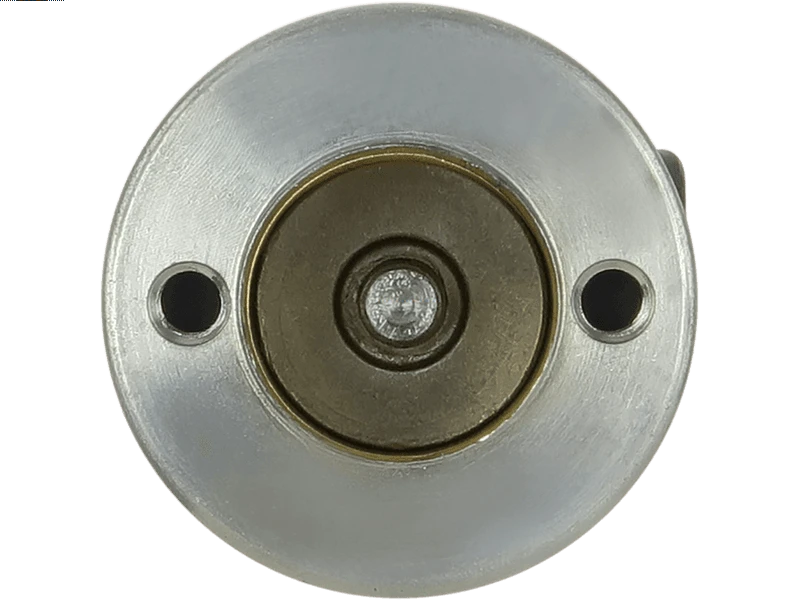

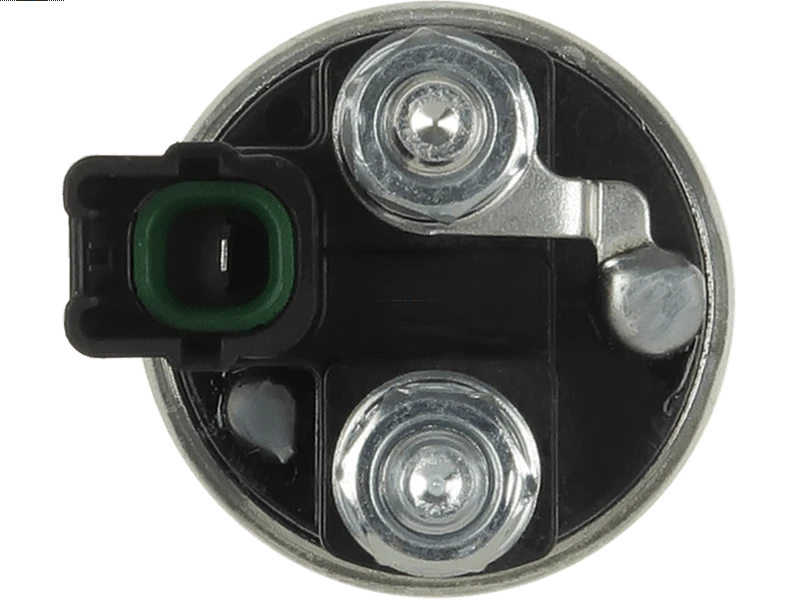

Brand new AS-PL Starter motor solenoid
PREMIUM LINE
AS-PL
DENSO
Price:
NZ$ 71.99 including GST
NZ$ 62.60 excluding GST
or four payments of $18.00
with
Learn More
UOM:
each
Product Code:
SS6016P
No stock in NZ currently
No stock in NZ currently

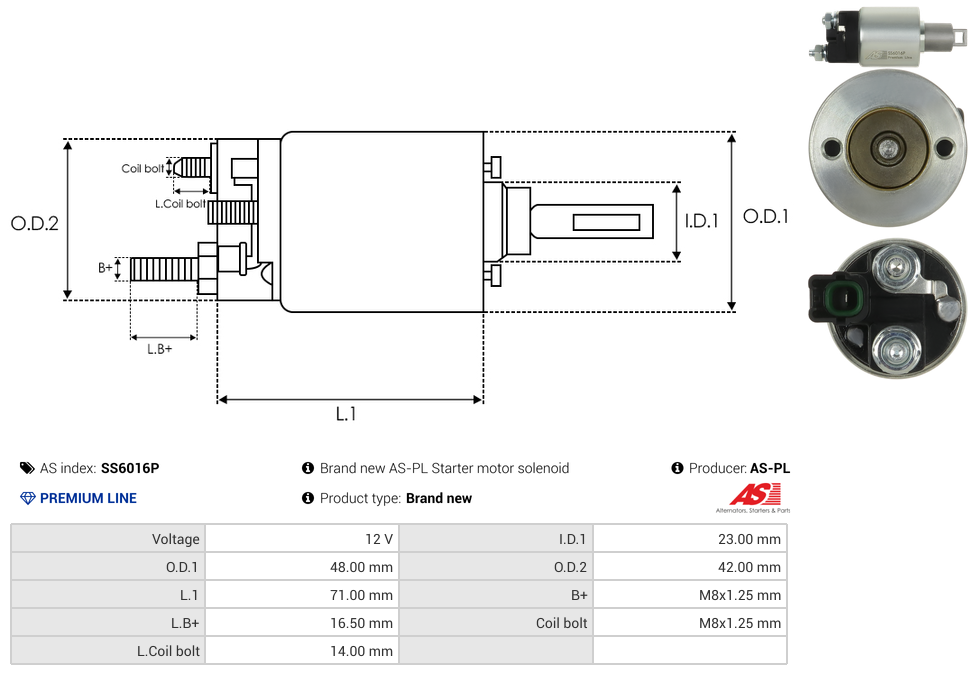

Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 14 mm |
| Inside Diameter (I.D.1) | 23 mm |
| L.B+ | 16.50 mm |
| Length (L.1) | 71 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 48 mm |
| Outside Diameter (O.D.2) | 42 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Unit Type | DENSO |
| Voltage | 12 V |
Reference Information
| 028099-9791 | DENSO |
| 054.001.117.056 | PSH |
| 054.001.117.590 | PSH |
| 153400-0000 | DENSO |
| 153400-8413 | DENSO |
| 28226-22060 | TOYOTA |
| 28226-22061 | TOYOTA |
| 28226-37120 | TOYOTA |
| 28226-38030 | TOYOTA |
| 332477 | CARGO |
| 425 | ZM |
| 6646-16102 | DIXIE |
| 66-8225 | WAI / TRANSPO |
| F032332477 | BOSCH |
| SOL6086 | ELECTROLOG |
| SSN8225 | KRAUF |
| UD814475SS | AS-PL |
| ZM425 | ZM |
