Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 582.22 including GST
NZ$ 506.28 excluding GST
or four payments of $145.56
with
Learn More
UOM:
each
Product Code:
A3758S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information

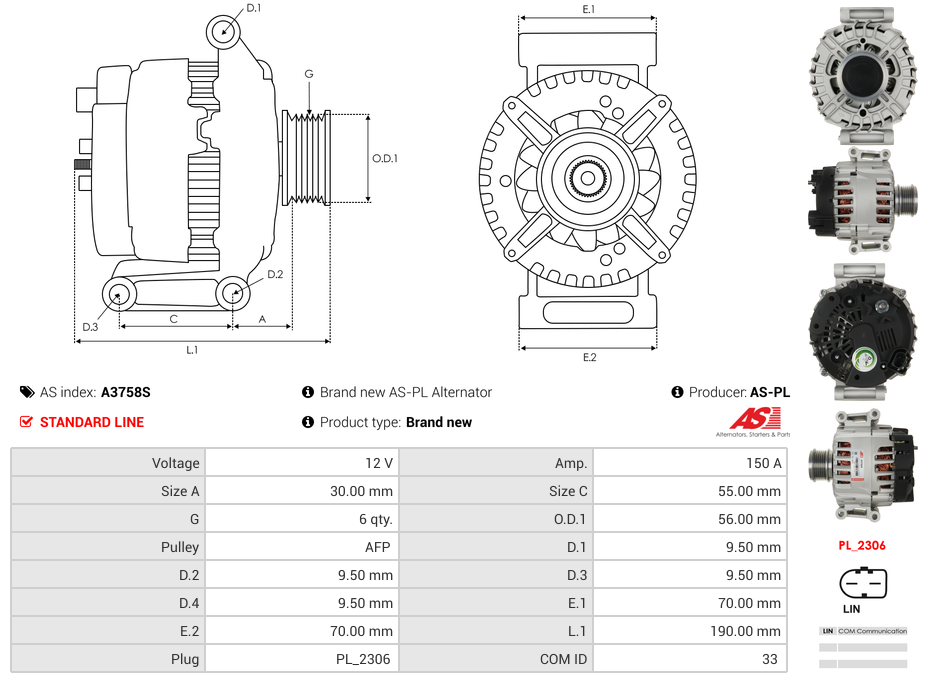

TG15C242Specifications
| Amp | 150 A |
| Diameter (D.1) | 9.50 mm |
| Diameter (D.2) | 9.50 mm |
| Diameter (D.3) | 9.50 mm |
| Diameter (D.4) | 9.50 mm |
| Length (L.1) | 190 mm |
| Mount Inside Length or Pad Mount C-C (C) | 55 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 70 mm |
| Pad mount thickness (E.2) | 70 mm |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.2) | 56 mm |
| Pulley to Mount Distance (A) | 30 mm |
| Pulley Type | Clutch |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A6 1.8 TFSi | [CYGA] | 09.2014-09.2018 |
| AUDI | A6 2.0 TFSi | [CYNB] | 09.2014-09.2018 |
| AUDI | A6 2.0 TFSi | [CYPA] | 09.2014-09.2018 |
| AUDI | A6 2.0 TFSi Quattro | [CYNB] | 05.2014-09.2018 |
| AUDI | A6 2.0 TFSi Quattro | [CYPA] | 05.2014-09.2018 |
| AUDI | A6 2.0 TFSi Quattro | [CYPA] | 05.2015-09.2018 |
| AUDI | A6 2.0 TFSi Quattro | [CYPB] | 05.2015-09.2018 |
| AUDI | A6 C7 (4G2, 4GC) 1.8 TFSI | CYGA | 09.2014-09.2018 |
| AUDI | A6 C7 (4G2, 4GC) 2.0 TFSI | CYNB | 09.2014-09.2018 |
| AUDI | A6 C7 (4G2, 4GC) 2.0 TFSI | CYPA | 09.2014-09.2018 |
| AUDI | A6 C7 (4G2, 4GC) 2.0 TFSI quattro | CYNB | 05.2014-09.2018 |
| AUDI | A6 C7 (4G2, 4GC) 2.0 TFSI quattro | CYPA | 05.2014-09.2018 |
| AUDI | A6 C7 (4G2, 4GC) 2.0 TFSI quattro | CYPB | 05.2015-09.2018 |
| AUDI | A6 C7 Avant (4G5, 4GD) 1.8 TFSI | CYGA | 09.2014-09.2018 |
| AUDI | A6 C7 Avant (4G5, 4GD) 2.0 TFSI | CYNB | 09.2014-09.2018 |
| AUDI | A6 C7 Avant (4G5, 4GD) 2.0 TFSI | CYPA | 09.2014-09.2018 |
| AUDI | A6 C7 Avant (4G5, 4GD) 2.0 TFSI quattro | CYPA | 05.2015-09.2018 |
| AUDI | A6 C7 Avant (4G5, 4GD) 2.0 TFSI quattro | CYPB | 05.2015-09.2018 |
| AUDI | A7 1.8 TFSi Sportback | [CYGA] | 04.2015-05.2018 |
| AUDI | A7 2.0 TFSi Quattro Sportback | [CYNB] | 05.2015-05.2018 |
| AUDI | A7 2.0 TFSi Quattro Sportback | [CYPA] | 05.2015-05.2018 |
| AUDI | A7 2.0 TFSi Sportback | [CYPA] | 09.2014-05.2018 |
| AUDI | A7 Sportback (4GA, 4GF) 1.8 TFSI | CYGA | 04.2015-05.2018 |
| AUDI | A7 Sportback (4GA, 4GF) 2.0 TFSI | CYPA | 09.2014-05.2018 |
| AUDI | A7 Sportback (4GA, 4GF) 2.0 TFSI quattro | CYNB | 05.2015-05.2018 |
| AUDI | A7 Sportback (4GA, 4GF) 2.0 TFSI quattro | CYPA | 05.2015-05.2018 |
| AUDI | A7 Sportback (4GA, 4GF) 2.0 TFSI quattro | CYPB | 05.2015-05.2018 |
| AUDI | S6 4.0 Quattro | [CTGE] | 10.2014-09.2018 |
Reference Information
| 06H903018D | VW |
| 06H903018DX | VW |
| 06H903018K | VW |
| 06H903018KX | VW |
| 06J903018KX | VW |
| 12090859 | EUROTEC |
| 205.575.150.500 | WAI |
| 2115771502 | DRI |
| 2620824A | VALEO |
| 2715178A | VALEO |
| 28-8543 | ELSTOCK |
| 3115038 | HENKEL PARTS |
| 4245 | CEVAM |
| 439958 | VALEO |
| 440714 | VALEO |
| 556077RI | KUHNER |
| 6H903018D | VW |
| 6H903018DX | VW |
| 6H903018K | VW |
| 6H903018KX | VW |
| 89216254 | POWERMAX |
| A146.077 | WAI |
| AEG1559 | AUTOELECTRO |
| AL04307 | TMI |
| ALT00825 | ELECTROLOG |
| ALTJ333 | 3EFFE |
| ALV9958 | KRAUF |
| LRA04434 | LUCAS |
| LRA4434 | LUCAS |
| TG15C201 | VALEO |
| TG15C242 | VALEO |
| UD102232A | AS-PL |
| VAL439958 | WOODAUTO |
