Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 521.51 including GST
NZ$ 453.49 excluding GST
or four payments of $130.38
with
Learn More
each
A3754S
3
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
SG10S078Associated Numbers
IAT A341172 Industry 21545 Lester PIC 208-1210 Valeo SG10S078 Tech C639773A Voltux 341172 Yanmar 128990-77250 12899077250 288542 Elstock 985514125 PSH
12899077250
Yanmar
21545N
WAI
639773
Valeo
985514125
PSH
LRA04433
Lucas
SG10S078
Valeo

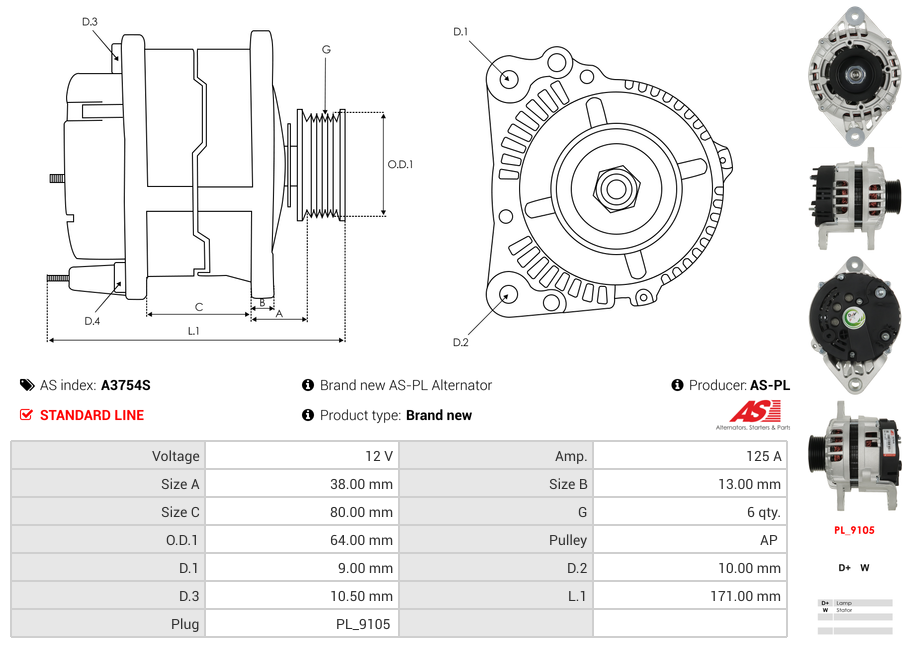

Specifications
| Amp | 125 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | 9 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 10.50 mm |
| Length (L.1) | 171 mm |
| Mount Inside Length or Pad Mount C-C (C) | 80 mm |
| OEM Product | No |
| Plug Code | PL_9105 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 64 mm |
| Pulley to Mount Distance (A) | 38 mm |
| Pulley Type | Solid |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| YANMAR | Engine | [3YM30] |
Reference Information
| 115426 | FARCOM |
| 128990-77250 | YANMAR |
| 20015A20OV | ITAB AUTOMOTIVE |
| 2015A20.1 | SANDO |
| 2017902AOE | REAL |
| 230-20255NOE | ROBERT'S |
| 28-8542 | ELSTOCK |
| 3124866 | HENKEL PARTS |
| 5821261252 | DRI |
| 985.514.125.000 | PSH |
| A136.204 | PSH |
| AL04306 | TMI |
| ALT01215 | ELECTROLOG |
| ALT17A200 | SIOM |
| CAL15A20GS | CASCO |
| CS39773A | VALEO |
| LRA04433 | LUCAS |
| SG10S078 | VALEO |
| UD90999A | AS-PL |
Video/Publications
