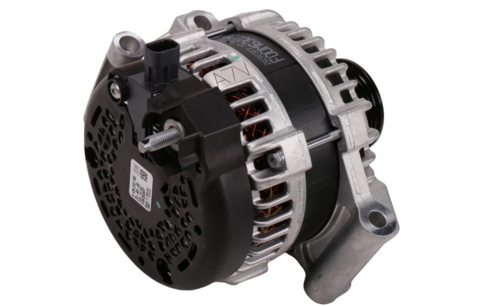

Brand new OEM SEG / BOSCH
PREMIUM LINE
BOSCH
Bosch
Price:
NZ$ 935.81 including GST
NZ$ 813.75 excluding GST
or four payments of $233.95
with
Learn More
each
A0945S
AGB-C5224
No stock in NZ currently
No stock in NZ currently
Associated Numbers
11919 AGBC6224 AGB-C5224
42219
22127
13535007
13522660, 13535007, 84118122, 84335421
13522660, 13535007, 84118122, 84335421
84118122, 84335421
0126312087 BOSCH
84118122
0126312087 BOSCH
0126312088 BOSCH
84118122
UD102223A AS-PL
0126312166 BOSCH
13522660 GM
220-30362NOE
Specifications
| Amp | 150 A |
| Diameter (D.1) | 9.5 mm |
| Diameter (D.2) | 9.8 mm |
| Diameter (D.3) | 12.5 mm |
| Length (L.1) | 185 mm |
| Mount Inside Length or Pad Mount C-C (C) | 54 mm |
| OEM Product | Yes |
| Pad mount thickness (E.1) | 79 mm |
| Pad mount thickness (E.2) | 79 mm |
| Pad mount thickness (E.3) | 79 mm |

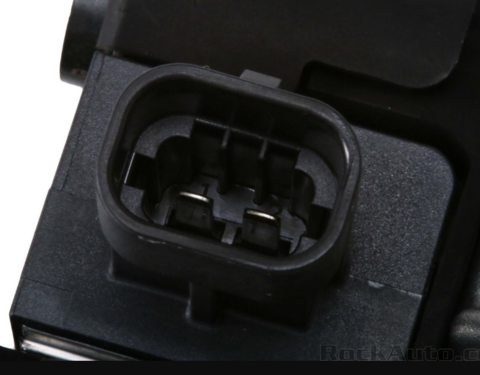

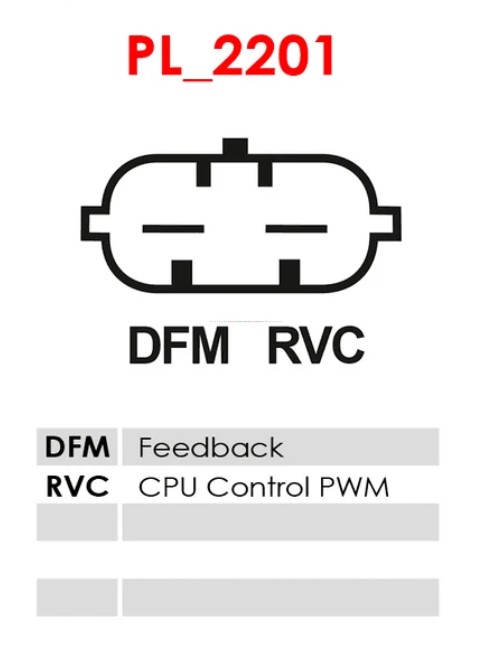

| Plug Code | PL_2201 |
| Product Line | Premium Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 54 mm |
| Pulley to Mount Distance (A) | 39 mm |
| Pulley Type | Clutch |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BUICK | ENVISION | 2018 | |
| CHEVROLET | EQUINOX | 2018- | |
| HOLDEN | EQUINOX | 2018- |
Reference Information
13522660, 13535007, 84118122, 84335421
A0945S
