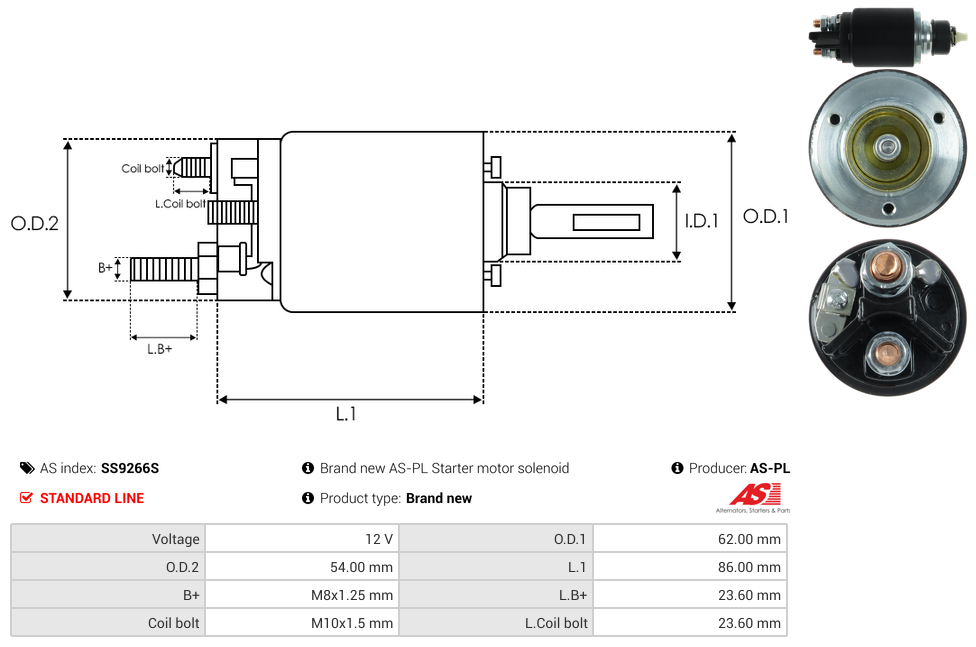

Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M10x1.5 mm |
| Coil Bolt Length | 23.6 mm |
| L.B+ | 23.6 mm |
| Length (L.1) | 86 mm |
| Outside Diameter (O.D.1) | 62 mm |
| Outside Diameter (O.D.2) | 54 mm |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 12 V |
Reference Information
MSX1176 72739671 UD48748SS 16.915.717 MSX1176KIT MAHMSX1176KIT SOL79233Video/Publications
AZE4247 11132010 11132193 S9284S AZE4255 16915717 AZE4217 11132165Add Your Number
