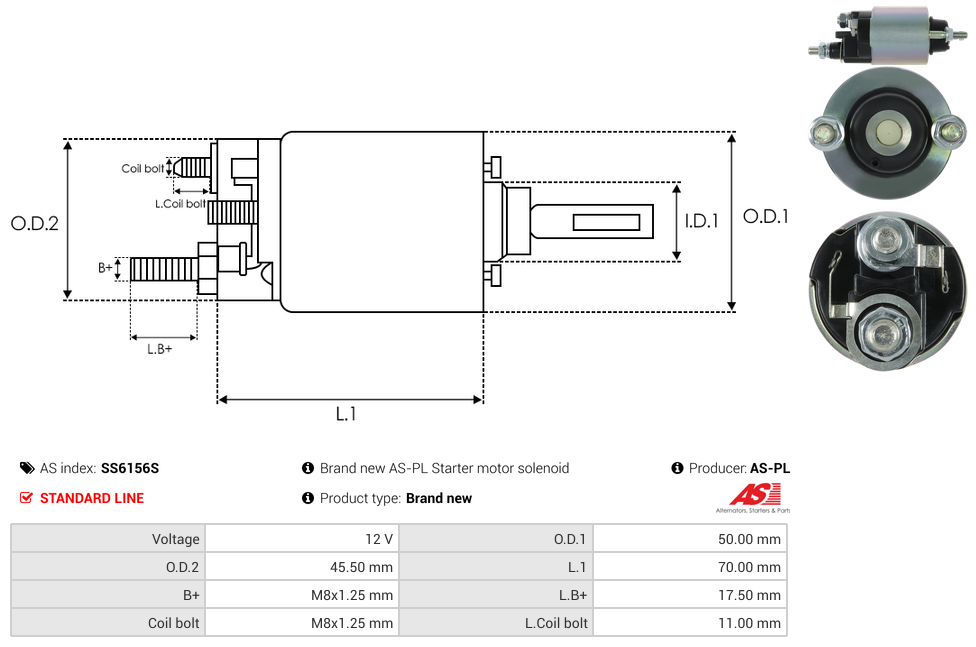

Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 .mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 11 mm |
| L.B+ | 17.5 mm |
| Length (L.1) | 70 mm |
| Outside Diameter (O.D.1) | 50 mm |
| Outside Diameter (O.D.2) | 45.5 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Reference Information
UD54236SS SSN7003Video/Publications
4280007470 S6056Add Your Number
