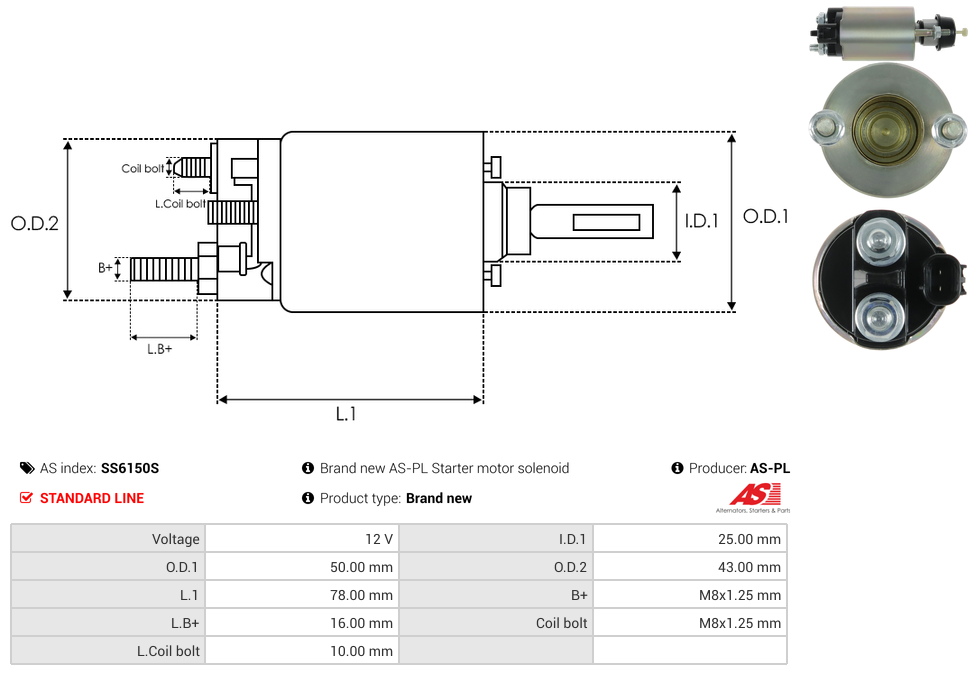

Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 .mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 10 mm |
| Inside Diameter (I.D.1) | 25 mm |
| L.B+ | 16 mm |
| Length (L.1) | 78 mm |
| Outside Diameter (O.D.1) | 50 mm |
| Outside Diameter (O.D.2) | 43 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Reference Information
UD21467SS SSN1176 054.001.389.056Video/Publications
4280009581 4280009580 S6480S 4380003120Add Your Number
