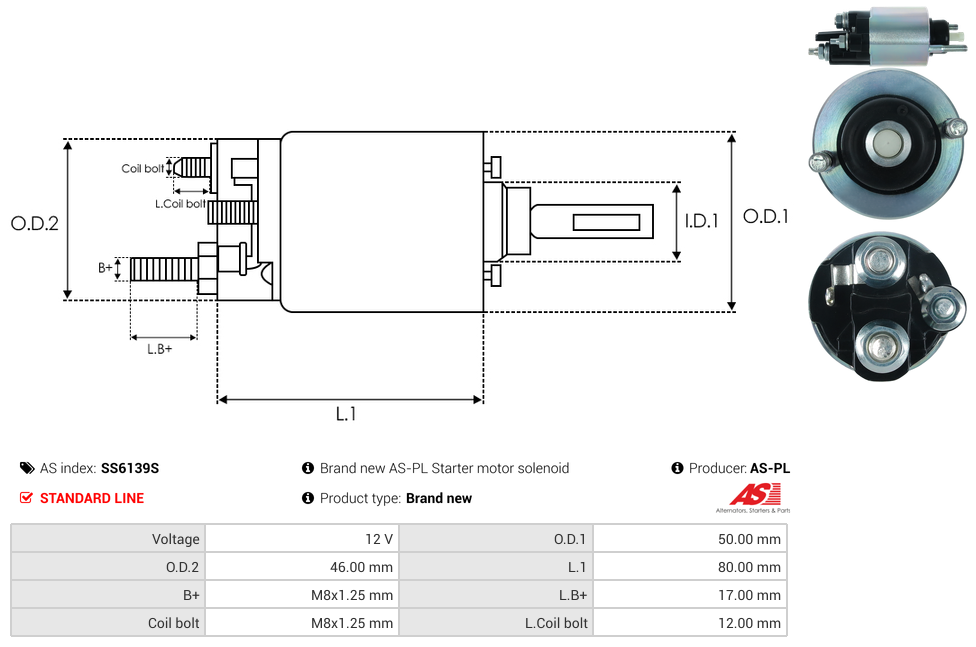

Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 .mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 12 mm |
| L.B+ | 17 mm |
| Length (L.1) | 80 mm |
| Outside Diameter (O.D.1) | 50 mm |
| Outside Diameter (O.D.2) | 46 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Reference Information
UD101210SSVideo/Publications
4380001510 S6511SAdd Your Number
