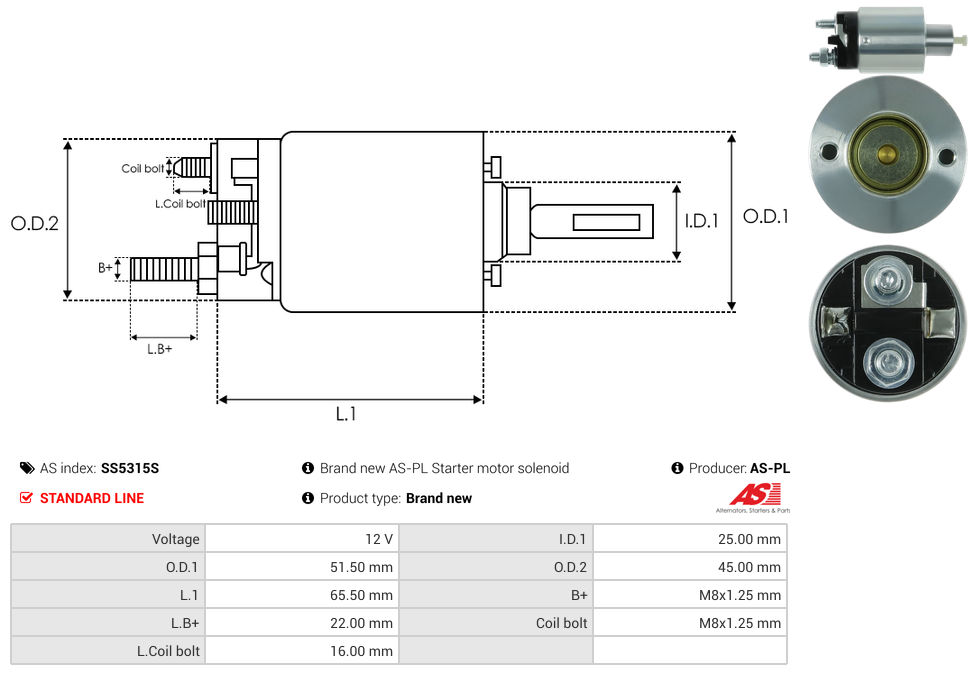

Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 .mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 16 mm |
| Inside Diameter (I.D.1) | 25 mm |
| L.B+ | 22 mm |
| Length (L.1) | 65.5 mm |
| Outside Diameter (O.D.1) | 51.5 mm |
| Outside Diameter (O.D.2) | 45 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Reference Information
UD48270SSVideo/Publications
M000T31471 M0T31572ZC M0T20972 S5344S S5366S M000T20972 S5233 M0T31471Add Your Number
