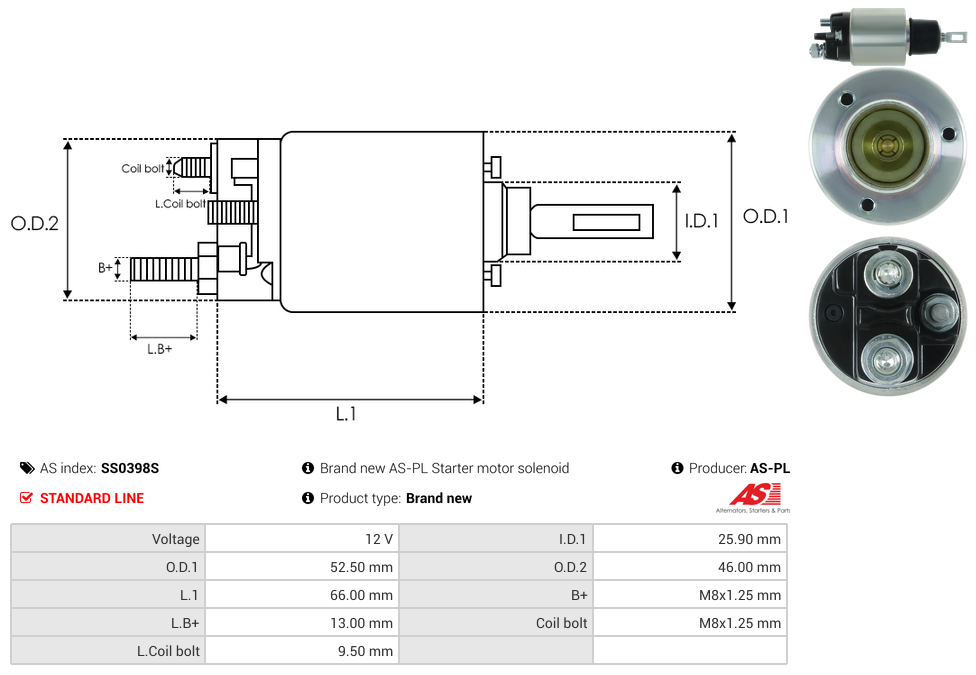

Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 .mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 9.5 mm |
| Inside Diameter (I.D.1) | 25.9 mm |
| L.B+ | 13 mm |
| Length (L.1) | 66 mm |
| Outside Diameter (O.D.1) | 52.5 mm |
| Outside Diameter (O.D.2) | 46 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Reference Information
81019317 UD53746SS 2339305317 SSB1118Video/Publications
0001170201 0001170200 S0743SAdd Your Number
