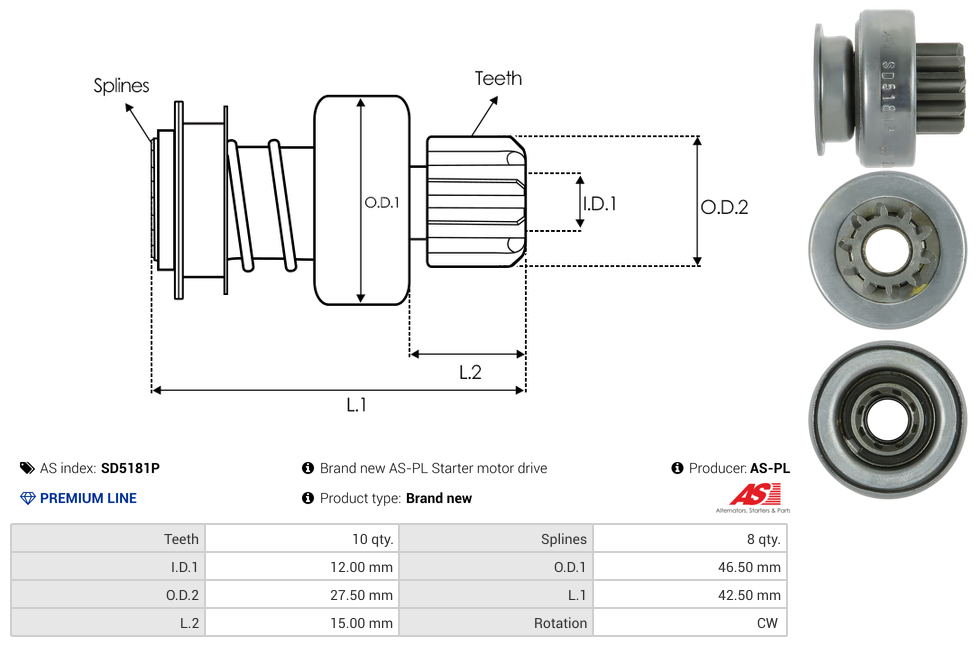

Specifications
Inside Diameter (I.D.1) | 12 mm |
Length (L.1) | 42.5 mm |
Length (L.2) | 15 mm |
No./Splines | 8 qty |
No./Teeth | 10 qty |
Outside Diameter (O.D.1) | 46.5 mm |
Outside Diameter (O.D.2) | 27.5 mm |
Rotation | CW |
Unit Type | MITSUBISHI |
Reference Information
M191X41271 69-71-77 ZN1909 6398 060.000.709.830 1909 M191T41271 19506 SDM5774Video/Publications
M0T31671 M0TD0971 M0T31675 M000T31675 1810A008 M000T31671 M000T33671ZT M000TD0971 1810A026 M0T33671ZT 1810A378Add Your Number
