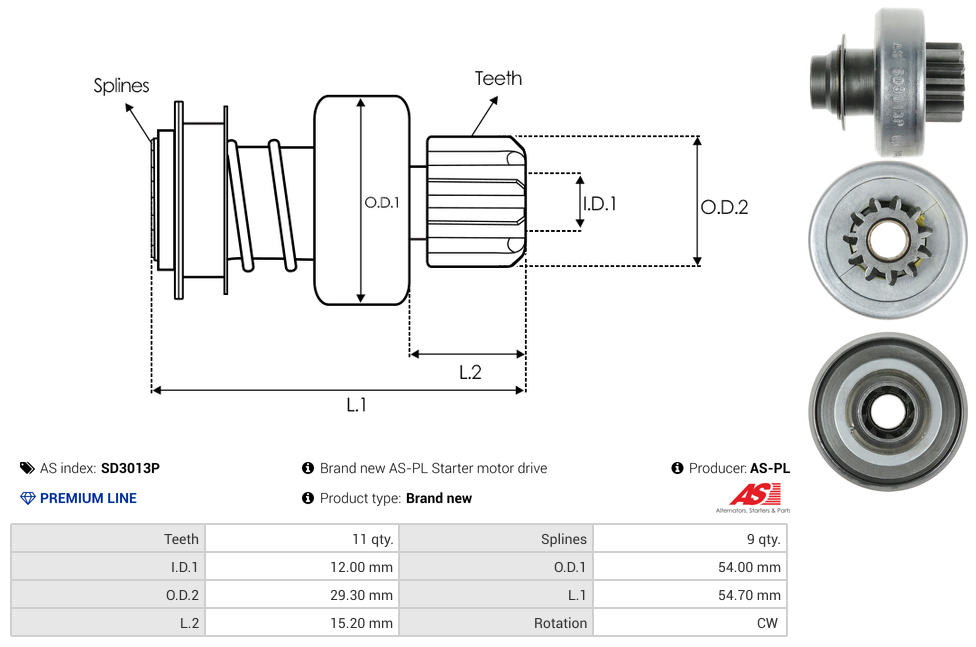

Specifications
Inside Diameter (I.D.1) | 12 mm |
Length (L.1) | 54.7 mm |
Length (L.2) | 15.2 mm |
No./Splines | 9 qty |
No./Teeth | 11 qty |
Outside Diameter (O.D.1) | 54 mm |
Outside Diameter (O.D.2) | 29.2 mm |
Rotation | CW |
Unit Type | VALEO |
Reference Information
3610029000 SDV7389 D7R32 DRV7826 22479401BN D7RP123 MD329260 1810A048 9.40113E+11 1015246 22479401OE 47010 D7R25 D7R26 D7R27 CDR15104GS D7R28 81015246 D7R127 ZN1023 D7R40 185915 SDV37618 D7R43 D7R44 SD0008 225481 UD16826SD 1023 060.000.071.006 D7R35 D7R281 54-9441 05-022 188839 CDR15104AS 584185 D7R51 135389 SDV9389 D7R9 D7R8 060.000.071.830 D7R7 D7R5 D7R2 AMB0347 1953 940113020347 DELETE CQ2010120 D7R46 D7R47 D7R48 549185 D7R49 4.5020.1 1810A111 D7R20 36-46-09 NE834 UD15625SD 1.01.1023.0 594185 335230 D7R12 D7R13 SDR15104.0 SDR15104.1 D8R27 D7R16 D8R28 D8R29 D7R18 D7R19Video/Publications
3610029000 D7R32 SDV7389 D7RP123 MD329260 1810A048 1015246 D7R25 D7R26 D7R27 D7R28 81015246 D7R127 ZN1023 D7R40 185915 D7R43 SDV37618 D7R44 225481 UD16826SD D7R35 D7R281 54-9441 05-022 188839 D7R51 135389 D7R9 SDV9389 D7R8 D7R7 D7R5 D7R2 1953 D7R46 D7R47 D7R48 D7R49 549185 1810A111 D7R20 36-46-09 NE834 1.01.1023.0 UD15625SD 594185 335230 D7R12 D7R13 D8R27 D7R16 D8R28 D8R29 D7R18 D7R19Add Your Number
