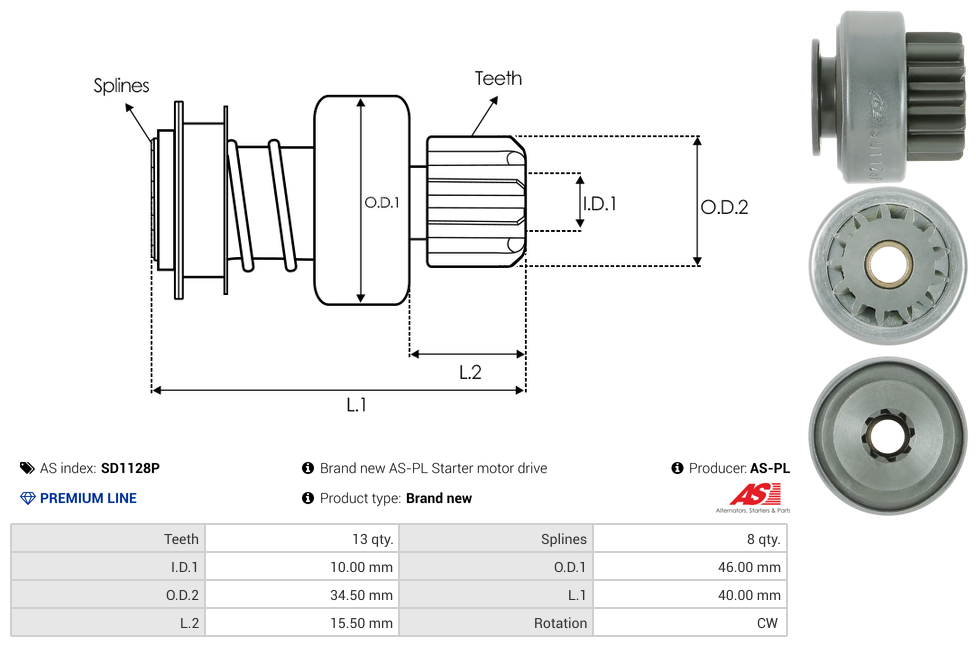

Specifications
| Inside Diameter (I.D.1) | 10 mm |
| Length (L.1) | 40 mm |
| Length (L.2) | 15.5 mm |
| No./Splines | 8 qty |
| No./Teeth | 13 qty |
| Outside Diameter (O.D.1) | 46 mm |
| Outside Diameter (O.D.2) | 34.5 mm |
| Rotation | CW |
| Unit Type | DELCO |
Reference Information
61005583 ZN2054 2054 DRV2067Video/Publications
61020063Add Your Number
