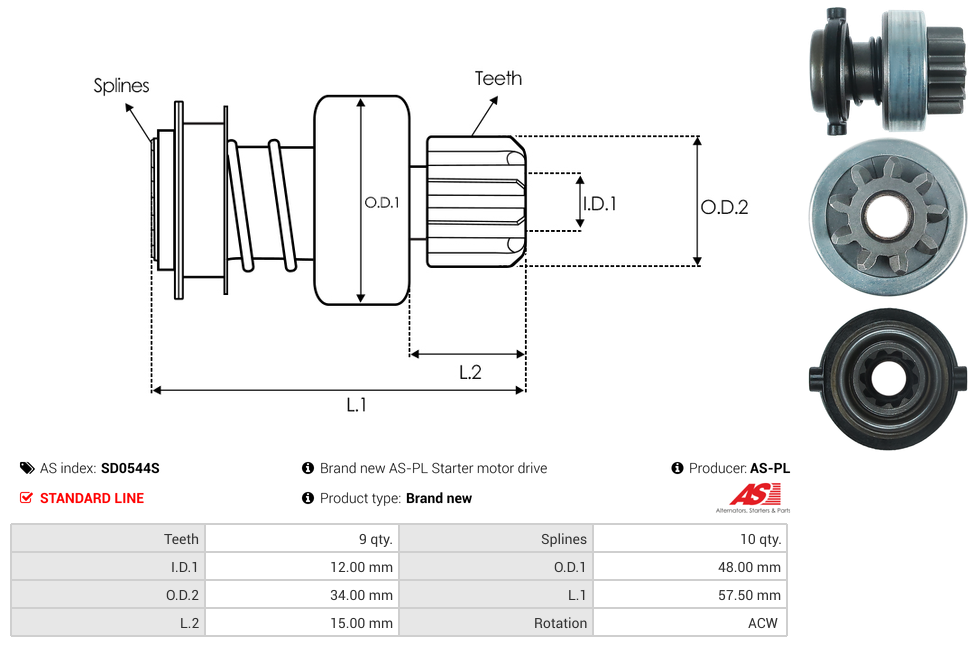

Specifications
Inside Diameter (I.D.1) | 12 mm |
Length (L.1) | 57.5 mm |
Length (L.2) | 15 mm |
No./Splines | 10 qty |
No./Teeth | 9 qty |
Outside Diameter (O.D.1) | 48 mm |
Outside Diameter (O.D.2) | 34 mm |
Rotation | ACW |
Unit Type | BOSCH |
Reference Information
1006209620 SDV32205 060.001.003.010 2112 81010378 UD48250SD 230349 SDB0349 52-42-72 18834Video/Publications
S0603 0001109032 0001109012 0001109047Add Your Number
