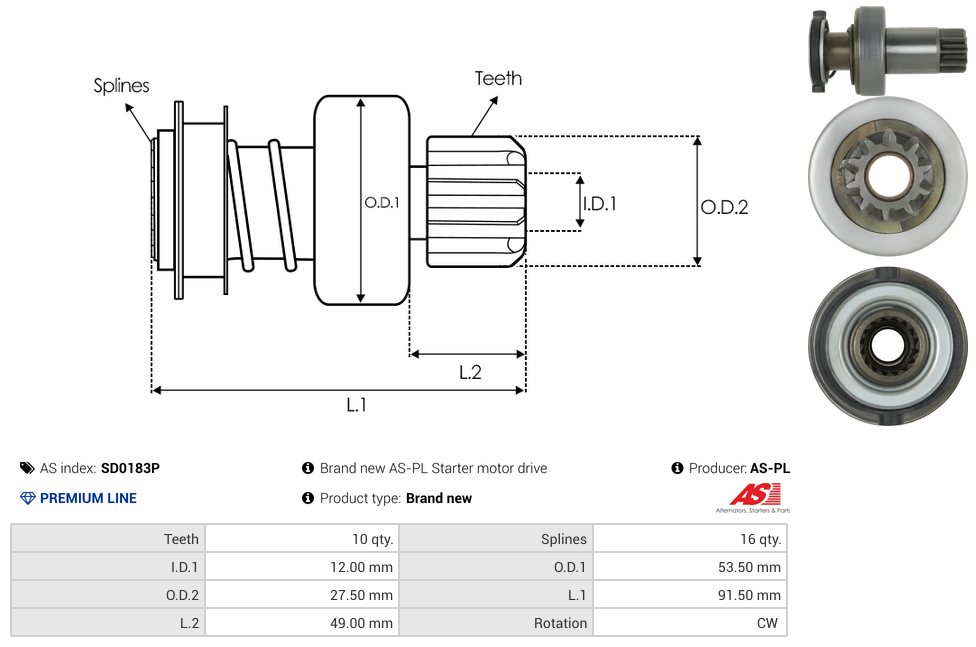

Specifications
| Inside Diameter (I.D.1) | 12 mm |
| Length (L.1) | 91.5 mm |
| Length (L.2) | 49 mm |
| No./Splines | 16 qty |
| No./Teeth | 10 qty |
| Outside Diameter (O.D.1) | 53.5 mm |
| Outside Diameter (O.D.2) | 27.5 mm |
| Rotation | CW |
| Unit Type | BOSCH |
Reference Information
UD21506SD 6033AD0275 IA2952 6033AD0474 060.000.372.010 SDB0474 13-474 11515513 333835 F032333835 A0011515513 81019279Video/Publications
S0203 0986020360 0001223006Add Your Number
