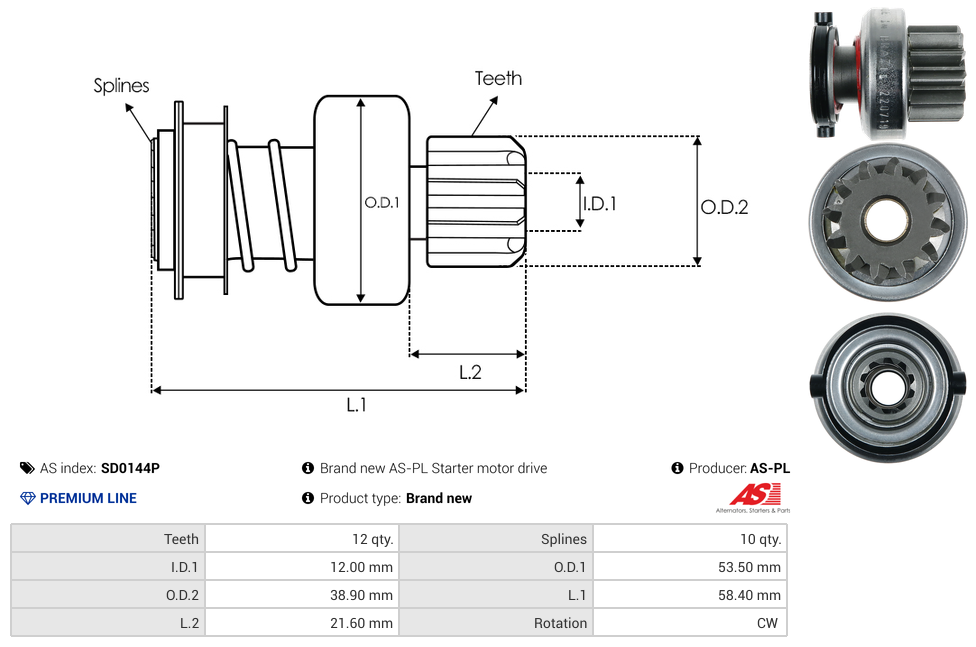

Specifications
Inside Diameter (I.D.1) | 12 mm |
Length (L.1) | 58.4 mm |
Length (L.2) | 21.6 mm |
No./Splines | 10 qty |
No./Teeth | 12 qty |
Outside Diameter (O.D.1) | 53.5 mm |
Outside Diameter (O.D.2) | 38.9 mm |
Rotation | CW |
Unit Type | BOSCH |
Reference Information
SDB9365 1.01.1642.0 4.5127.1 225700 BOS1006210146 330265 9.40113E+11 333188 SDB1365 1013444 81013444 1006210146 54-91195 ZN1642 SDV32787 DRV1159 6049 11-824 1006210128 UD15601SD 62-42-40 1642 335231 CQ2011000 1006209824 1006209966Video/Publications
0001109328 0001109391 1385378 1574338 1372739 6C1T11000AE 0001109387 0001109388 1669558 0001109324 0001109325 6C1T11000AB 0001109205 0001109304 6C1T11000AC 0001109305 6C1T11000ADAdd Your Number
