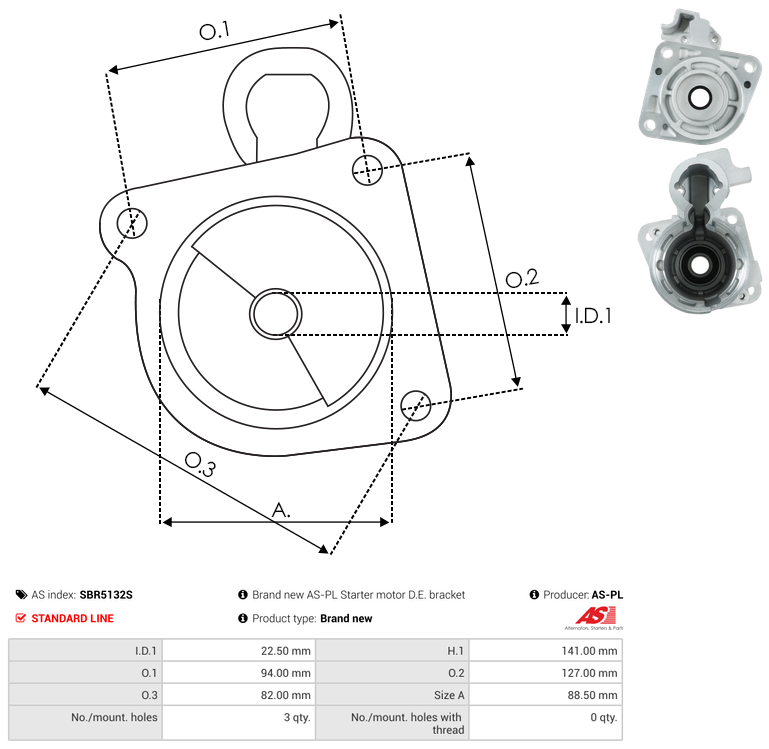

Specifications
Height (H.1) | 141 mm |
Inside Diameter (I.D.1) | 22.5 mm |
Mount Hole Center - Center (O.1) | 94 mm |
Mount Hole Center - Center (O.2) | 127 mm |
Mount Hole Center - Center (O.3) | 82 mm |
No./Mount holes | 3 qty |
No./Mount holes with thread | 0 qty |
Spigot Diameter (A) | 88.5 mm |
Unit Type | MITSUBISHI |
Reference Information
UD47741SBR 51.26215-0020 SBM42336Video/Publications
M008T62671 S5187 M8T62671 M008T55871 M8T63271 M8T55871 M008T63271Add Your Number
