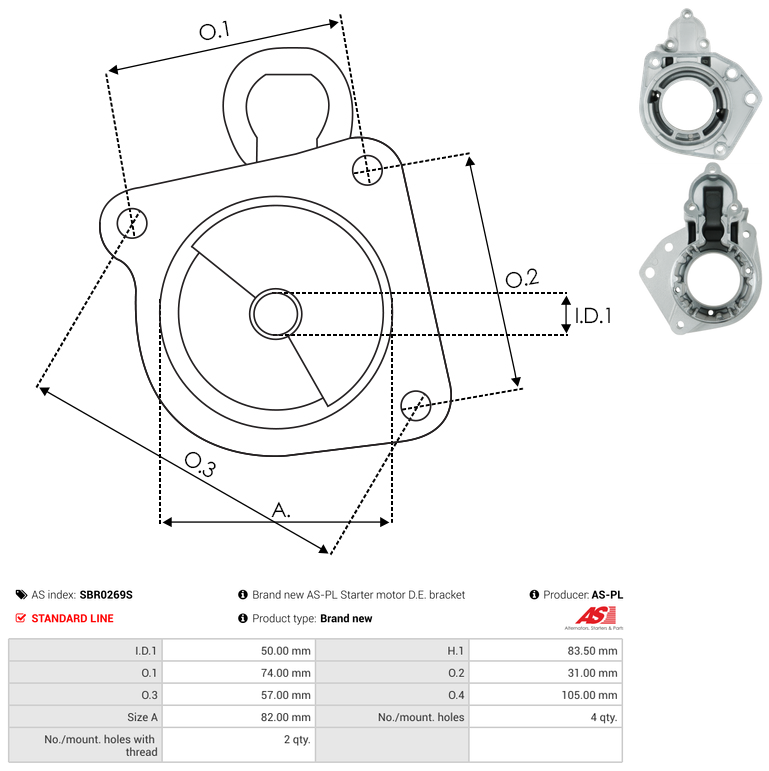

Specifications
Height (H.1) | 83.5 mm |
Inside Diameter (I.D.1) | 50 mm |
Mount Hole Center - Center (O.1) | 74 mm |
Mount Hole Center - Center (O.2) | 31 mm |
Mount Hole Center - Center (O.3) | 57 mm |
Mount Hole Center - Center (O.4) | 105 mm |
No./Mount holes | 4 qty |
No./Mount holes with thread | 2 qty |
Spigot Diameter (A) | 82 mm |
Unit Type | BOSCH |
Reference Information
UD51595SBR 81014062 BOS1005821632 231791 070.001.061.210 036911255H BKT44649 1005821632 SBB1791Video/Publications
S0104 0001107104 0001107026 0001107103 0001107025Add Your Number
