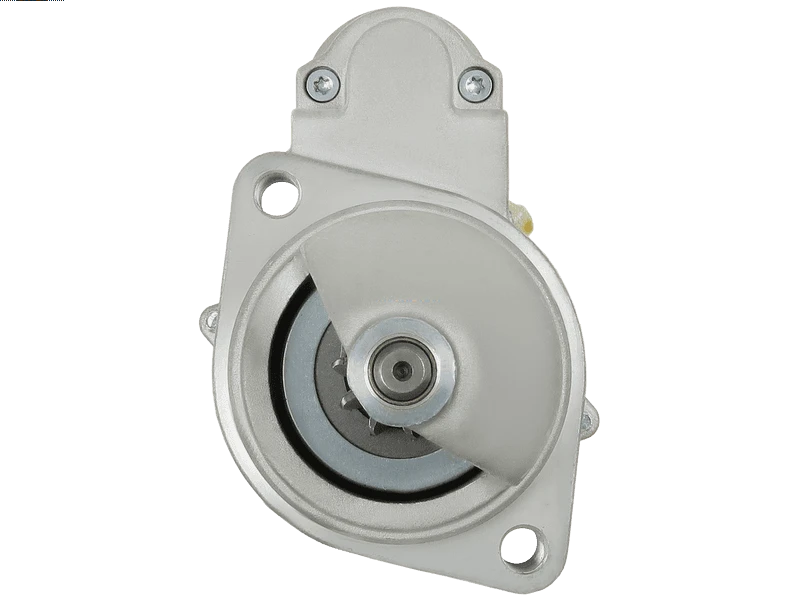

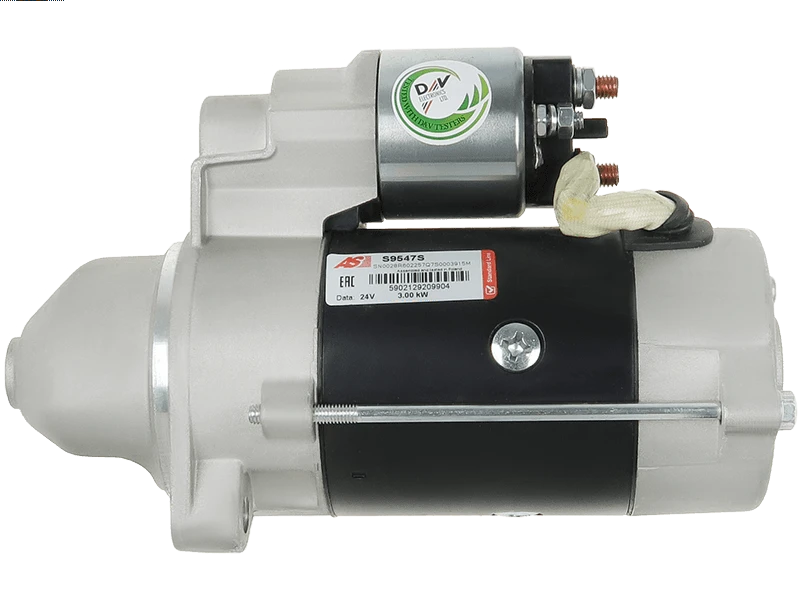

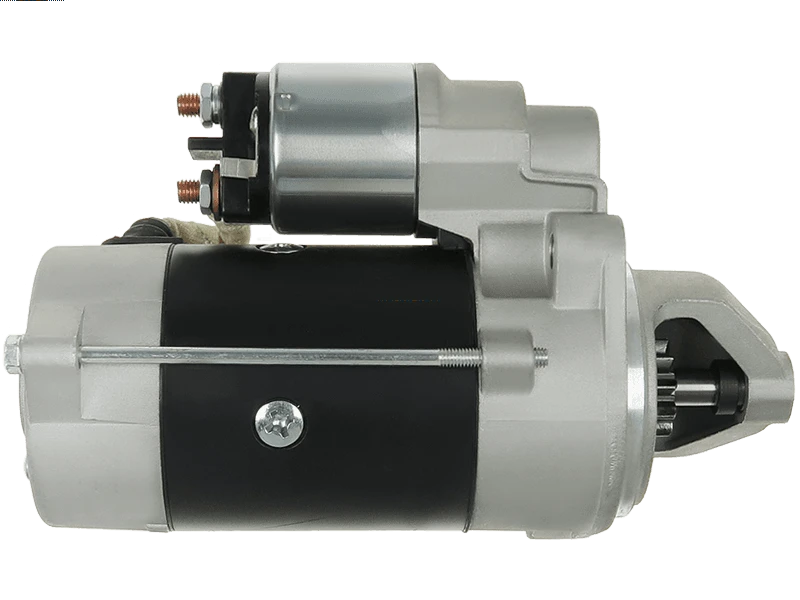

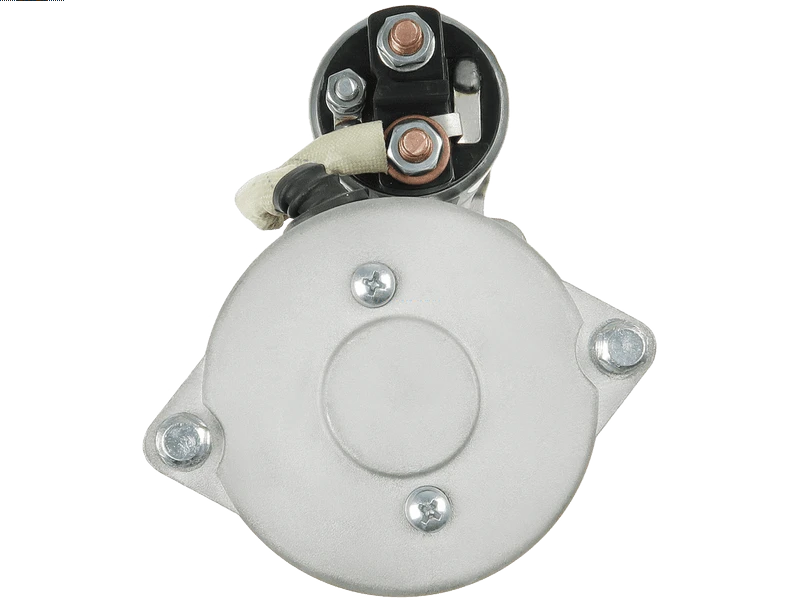

S9547S - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 648.83 including GST

NZ$ 564.20 excluding GST
each
S9547S
No stock in NZ
Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional
Purchase Qty:

Kilowatt3 kW
Length (L.1)241.7 mm
Mount Hole Center - Center (O.1)105 mm
Mount Hole Diameter (C.1)M12X1.75 mm
Mount Hole Diameter (C.2)M12X1.75 mm
No./Mount holes2 qty
No./Mount holes with thread2 qty
No./Teeth10 qty
Pinion at Rest (B)22 mm
RotationCW
Spigot Diameter (A)82 mm
Unit TypeISKRA / LETRIKA
Voltage24 V
Make Model Type Year
STEYR Engine 3.2 [M16SCI]
STEYR Engine 3.2 [M16VTI]
581.503.102.090 WG2044903 AZE6541 3122625 UD19739S 72735774 MS146 10438300 11.131.724 STI2613 IS1312 107955 22017420 STR79245
