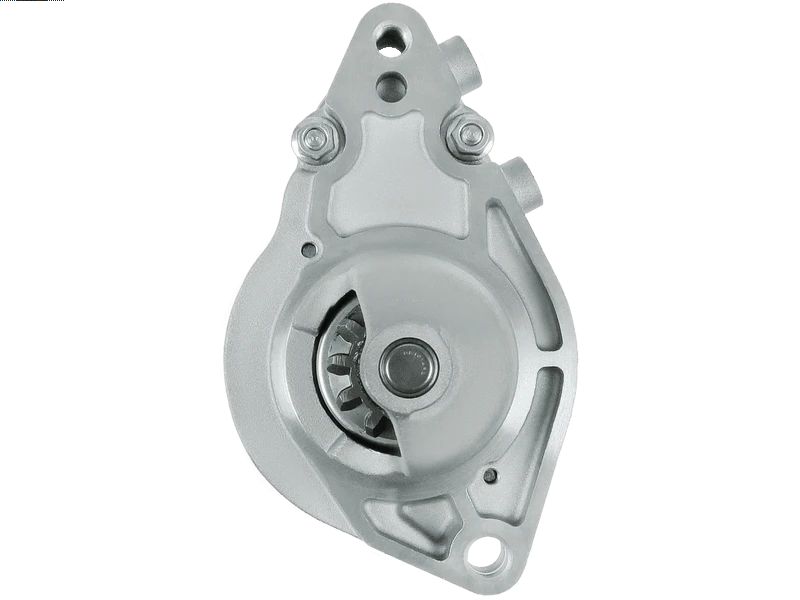

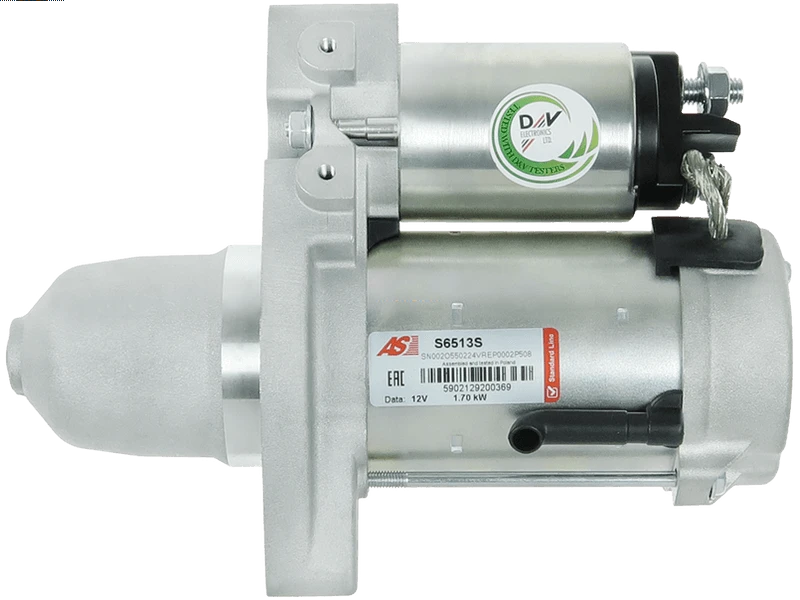

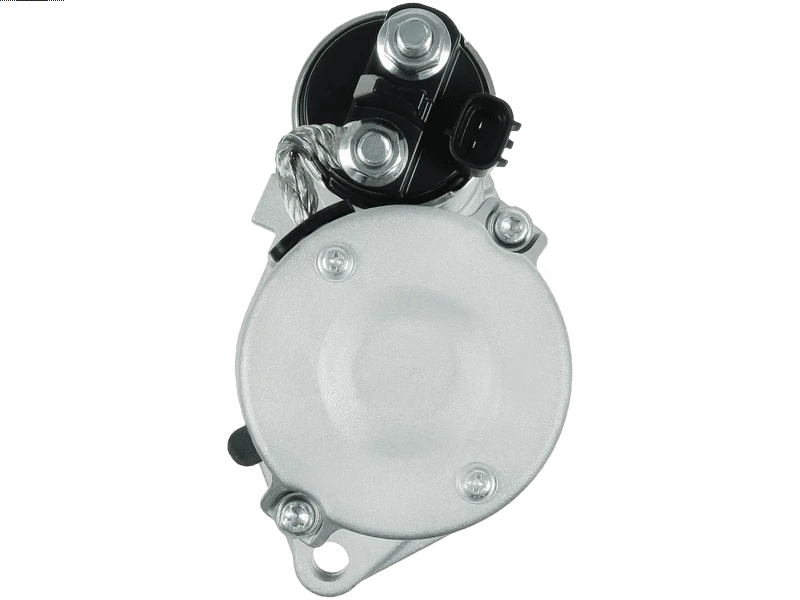

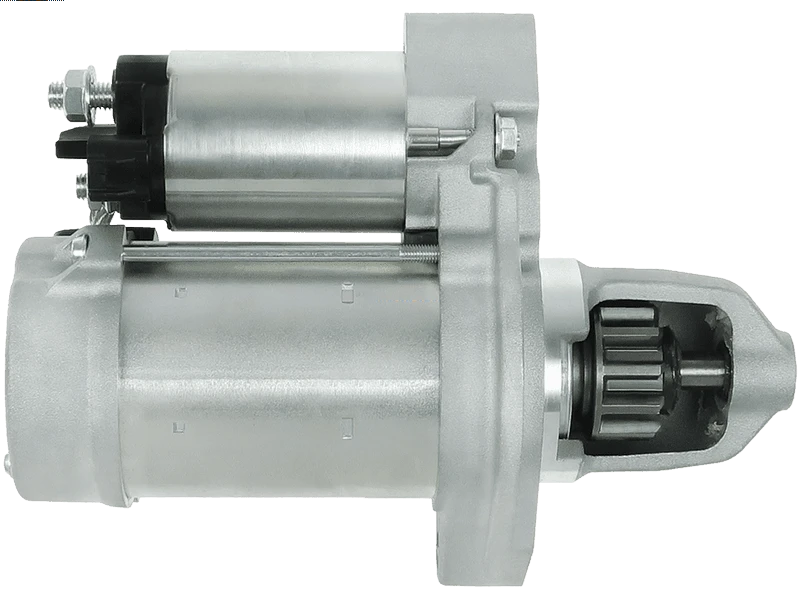

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 377.65 including GST
NZ$ 328.39 excluding GST
or four payments of $94.41
with
Learn More
each
S6513S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
428000-9610Specifications
| Kilowatt | 1.70 kW |
| Length (L.1) | 215 mm |
| Mount Hole Center - Center (O.1) | 143 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 34 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 62 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JAGUAR | F-Type 3.0 SCV6 | [306PS(AJ126)] | 10.2012- |
| JAGUAR | F-Type 3.0 SCV6 | [306PS(AJ126)] | 10.2013- |
| JAGUAR | F-Type 3.0 SCV6 S | [306PS(AJ126)] | 10.2012- |
| JAGUAR | F-Type 3.0 SCV6 S | [306PS(AJ126)] | 10.2013- |
| JAGUAR | F-Type 3.0 SCV6 S AWD | [306PS(AJ126)] | 12.2014- |
| JAGUAR | F-Type 5.0 SCV8 P575 R | [508PS(AJ133)] | 12.2015- |
| JAGUAR | F-Type 5.0 SCV8 P575 R AWD | [508PS(AJ133)] | 12.2015- |
| JAGUAR | F-Type 5.0 SCV8 R | [508PS(AJ133)] | 10.2013- |
| JAGUAR | F-Type 5.0 SCV8 R AWD | [508PS(AJ133)] | 12.2014- |
| JAGUAR | F-Type 5.0 SCV8 S | [508PS(AJ133)] | 10.2012- |
| JAGUAR | F-Type 5.0 SCV8 SVR | [508PS(AJ133)] | 12.2015- |
| JAGUAR | XF 3.0 | [306PS(AJ126)] | 03.2012-04.2015 |
| JAGUAR | XF 3.0 AWD | [306PS(AJ126)] | 10.2012-04.2015 |
| JAGUAR | XF 5.0 Kompressor | [508PS(AJ133)] | 01.2009-04.2015 |
| JAGUAR | XF 5.0 Kompressor | [508PS(AJ133)] | 03.2009-04.2015 |
| JAGUAR | XF 5.0 XFR-S | [508PS(AJ133)] | 10.2012-04.2015 |
| JAGUAR | XF 5.0 XFR-S Sportbrake | [508PS(AJ133)] | 02.2013-04.2014 |
| JAGUAR | XJ 3.0 SCV6 | [306PS(AJ126)] | 03.2012- |
| JAGUAR | XJ 3.0 SCV6 AWD | [306PS(AJ126)] | 10.2012- |
| JAGUAR | XJ 5.0 SCV8 | [508PS(AJ133)] | 06.2013- |
| JAGUAR | XJ 5.0 SCV8 | [508PS(AJ133)] | 10.2009- |
| JAGUAR | XJ 5.0 V8 | [508PN(AJ133)] | 10.2009- |
Reference Information
| 10978 | LESTER |
| 10978N | WAI / TRANSPO |
| 20432464BN | REAL |
| 20432464OE | REAL |
| 25-5219 | ELSTOCK |
| 255264D | KUHNER |
| 3690 | CEVAM |
| 428000-9610 | DENSO |
| 6040464.0 | SANDO |
| 6040464.1 | SANDO |
| 840.508.112.050 | PSH |
| 840.508.112.260 | PSH |
| 840.508.112.261 | PSH |
| 88213889 | POWERMAX |
| C2D19968 | JAGUAR |
| CGB-55219 | AINDE |
| CST40464AS | CASCO |
| CST40464GS | CASCO |
| DENDSN1412 | WOODAUTO |
| DSN1412 | DENSO |
| DX23-11001-BC | FORD |
| DX23-11001-BD | FORD |
| LRS04056 | LUCAS |
| LRS4056 | LUCAS |
| MAV424640 | SIOM |
| MAV424640A | SIOM |
| S135.702 | PSH |
| S143.836 | PSH |
| SG2140 | GHIBAUDI |
| STM1456 | ROLLCO |
| STN9610 | KRAUF |
| STR70399 | WOODAUTO |
| UD101817S | AS-PL |
| UD104468S | AS-PL |
