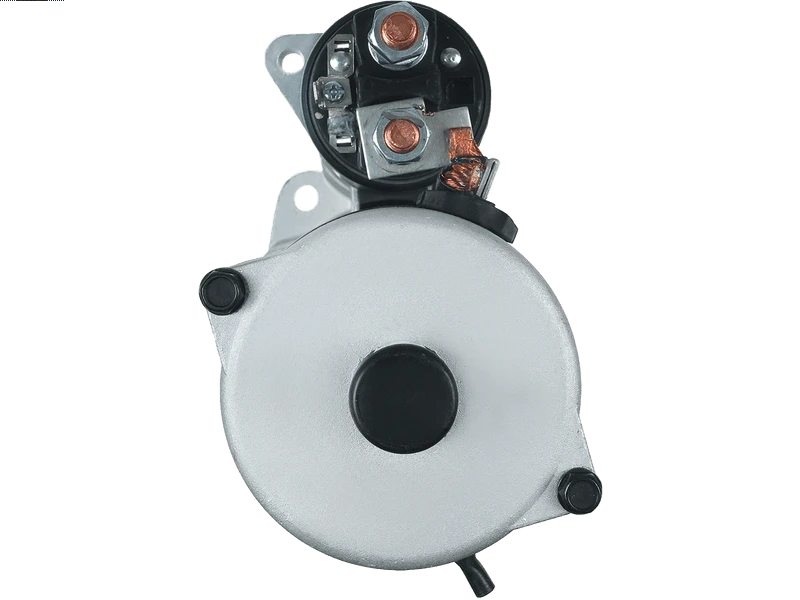

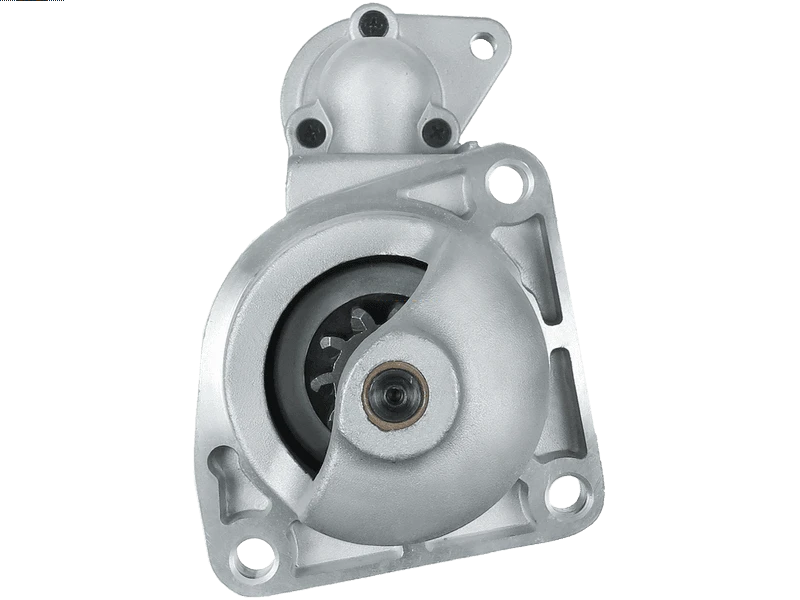

Brand new OEM BOSCH Starter motor
PREMIUM LINE
Bosch
BOSCH
Price:
NZ$ 885.44 including GST
NZ$ 769.95 excluding GST
or four payments of $221.36
with
Learn More
each
S0787(BOSCH)
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 4 kW |
| Length (L.1) | 313 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | Yes |
| Pinion at Rest (B) | 27 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DAF | CF 65.180 5.9 | [CE136C] | 01.2001-05.2013 |
| DAF | CF 65.220 5.9 | [CE162C] | 01.2001-05.2013 |
| DAF | CF 65.220 6.7 | [GR165S1] | 05.2006-05.2013 |
| DAF | CF 65.250 5.9 | [CE184C] | 01.2001-05.2013 |
| DAF | CF 65.250 6.7 | [GR184S1] | 05.2006-05.2013 |
| DAF | CF 65.280 6.7 | [GR210S1] | 05.2006-05.2013 |
| DAF | CF 65.300 6.7 | [GR220] | 01.2009-05.2013 |
| DAF | LF 45.130 3.9 | [BE99C] | 12.2005- |
| DAF | LF 45.140 4.5 | [FR103S1] | 05.2006- |
| DAF | LF 45.150 3.9 | [BE110C] | 01.2001- |
| DAF | LF 45.160 4.5 | [FR118S1] | 05.2006- |
| DAF | LF 45.170 3.9 | [BE123C] | 01.2001- |
| DAF | LF 45.180 4.5 | [FR136S1] | 05.2006- |
| DAF | LF 45.180 5.9 | [CE136C] | 01.2001- |
| DAF | LF 45.210 4.5 | [FR152] | 01.2009- |
| DAF | LF 45.220 5.9 | [CE162C] | 01.2001- |
| DAF | LF 45.220 6.7 | [GR165S1] | 05.2006- |
| DAF | LF 45.250 6.7 | [GR184S1] | 03.2006- |
| DAF | LF 55.180 4.5 | [FR136S1] | 05.2006- |
| DAF | LF 55.180 5.9 | [CE136C] | 01.2001- |
| DAF | LF 55.180 5.9 | [CE136C] | 05.2006- |
| DAF | LF 55.210 4.5 | [FR152] | 01.2009- |
| DAF | LF 55.220 5.9 | [CE162C] | 01.2001- |
| DAF | LF 55.220 5.9 | [CE162C] | 05.2006- |
| DAF | LF 55.220 6.7 | [GR165S1] | 05.2006- |
| DAF | LF 55.250 5.9 | [CE184C] | 01.2001- |
| DAF | LF 55.250 5.9 | [CE184C] | 05.2006- |
| DAF | LF 55.250 6.7 | [GR184S1] | 05.2006- |
| DAF | LF 55.280 6.7 | [GR210S1] | 05.2006- |
| DAF | LF 55.290 6.7 | [GR210S1] | 05.2006- |
| DAF | LF 55.300 6.7 | [GR220] | 01.2009- |
Reference Information
| 0001231017 | BOSCH |
| 0001231045 | BOSCH |
| 0001263001 | BOSCH |
| 0001263001-R | BOSCH |
| 0001263002 | BOSCH |
| 01.180.8504.000 | ST-TEMPLIN |
| 052.262 | SAMPA |
| 0986021190 | BOSCH |
| 10010681AV | ITAB AUTOMOTIVE |
| 10010681OV | ITAB AUTOMOTIVE |
| 10439784 | ALANKO |
| 105470 | FARCOM |
| 11021190 | EUROTEC |
| 11.139.608 | ISKRA / LETRIKA |
| 113760 | CARGO |
| 120-20146 | ROBERT'S |
| 1387381 | DAF |
| 1387383 | DAF |
| 1387383R | DAF |
| 1528599 | DAF |
| 1703434 | DAF |
| 1704911 | DAF |
| 1704911R | DAF |
| 19084017 | DELCO |
| 19084209 | DELCO |
| 1986S10074 | BOSCH |
| 203036 | VALEO |
| 20401186BN | REAL |
| 20401186OE | REAL |
| 2165363R | DAF |
| 2165364R | DAF |
| 30129N | WAI / TRANSPO |
| 31284N | WAI / TRANSPO |
| 330527 | MEC-DIESEL |
| 331788 | LOGISTIK |
| 438540 | VALEO |
| 45-3350 | ELSTOCK |
| 458329 | VALEO |
| 48969 | FEBI BILSTEIN |
| 5110025 | MEAT & DORIA |
| 5.47008 | DT SPARE PARTS |
| 6010681.0 | SANDO |
| 6010681.1 | SANDO |
| 646009104 | DRI |
| 6.7045.1 | IKA |
| 72442886 | MAHLE |
| 8166 | CEVAM |
| 860815 | PRESTOLITE |
| 8821190 | FRIESEN |
| 88212999 | POWERMAX |
| 8EA012586-341 | HELLA |
| 8EA738258-081 | HELLA |
| 901.503.103 | PSH |
| 901.503.103.011 | PSH |
| 901.503.103.018 | PSH |
| 901.503.103.213 | PSH |
| 901.503.103.216 | PSH |
| 901.503.103.280 | PSH |
| 901.503.103.310 | PSH |
| 91201 | AUGER |
| A21190 | ATL AUTOTECHNIK |
| AC-CBS1382 | ACAUTO |
| AELD021 | LEYLAND |
| AELF189 | LEYLAND |
| AELF405 | LEYLAND |
| AFLF189 | LEYLAND |
| ALEF189 | LEYLAND |
| ANM23410 | ANDEL |
| ANM23410X | ANDEL |
| AZF4403 | ISKRA / LETRIKA |
| BOS0001231017 | WOODAUTO |
| BOS0001231045 | WOODAUTO |
| BOS0001263001 | WOODAUTO |
| BOS0001263002 | WOODAUTO |
| BST32048 | BORG & BECK |
| CGB-91190 | AINDE |
| CS1382 | HC PARTS |
| CST10681AS | CASCO |
| CST10681GS | CASCO |
| DRT1190 | DELCO |
| DT2300 | DELCO |
| F032113760 | CARGO |
| IS9460 | ISKRA / LETRIKA |
| LES0457 | LE PART |
| LRS02176 | LUCAS |
| LRS2176 | LUCAS |
| M93R3105SE | PRESTOLITE |
| MAV126810 | SIOM |
| MS766 | MAHLE |
| PRSL227 | 3EFFE |
| PTC-4023 | POWER TRUCK |
| QRS2665 | QUINTON HAZELL |
| S135.897 | PSH |
| S144.507 | PSH |
| S-22124 | DTS |
| S24BH0115 | SIDAT |
| S24BH0115A2 | SIDAT |
| SBO681 | AUTOTEAM |
| SBO681A | AUTOTEAM |
| SG0536 | GHIBAUDI |
| ST02659 | TMI |
| STB1382 | KRAUF |
| STR10202 | ELECTROLOG |
| STR22124 | WOODAUTO |
| STR50673 | WOODAUTO |
| STR79695 | ELECTROLOG |
| STRL227 | 3EFFE |
| UD803026(BOSCH)S | AS-PL |
| WG2045393 | WILMINK GROUP |
| WG2192611 | WILMINK GROUP |
