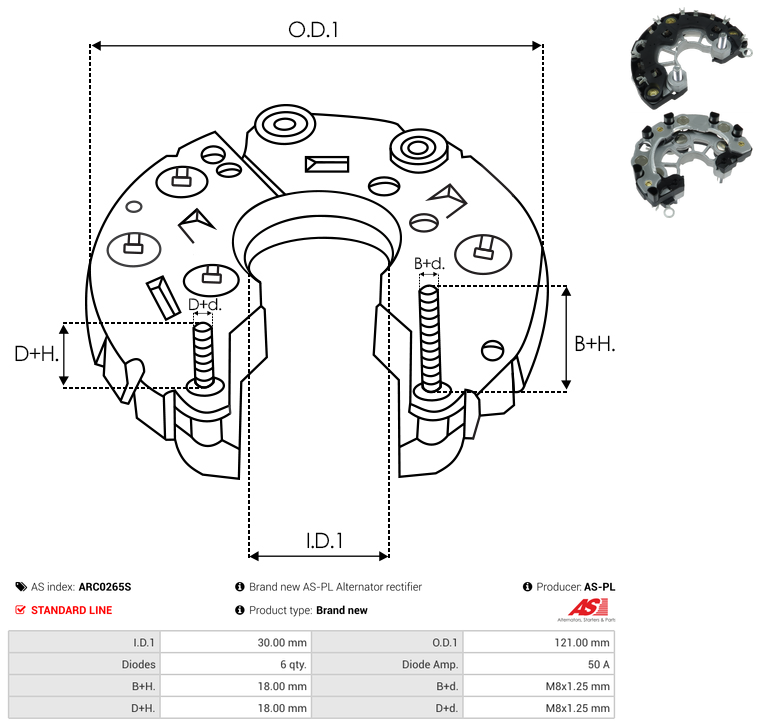

Specifications
| B+ Stud Diameter & Thread Pitch (B+d) | M8x1.25 mm |
| B+ Thread Length (B+H) | 18 mm |
| Diode Amp Rating | 50 A |
| Diodes (Main) | 6 qty |
| D+ Stud Diameter & Thread Pitch (D+d) | M8x1.25 mm |
| D+ Thread Height (D+H) | 18 mm |
| Inside Diameter (I.D.1) | 30 mm |
| Outside Diameter (O.D.1) | 121 mm |
| Reg/Rec Combo | No |
| Unit Type | BOSCH |
| With Attached Bracket | No |
Reference Information
UD51604ARC F00M113202 1541316 93178177 053.000.056.210 F00M123209 BOSF00M123313 93183888 81116252 IBR230 1116252 42559489 A0001541316 AMP1469 F00M123230 11543216 9.40016E+11 42557731 F00M123316 235567 F00M123236 F00M123313 A0011543216Video/Publications
0124325175 0124325024 0124325031 0124325053 0124325185 0124325184 A0563S 0124325191 0124325158 0124325157 A0411 0124325027Add Your Number
