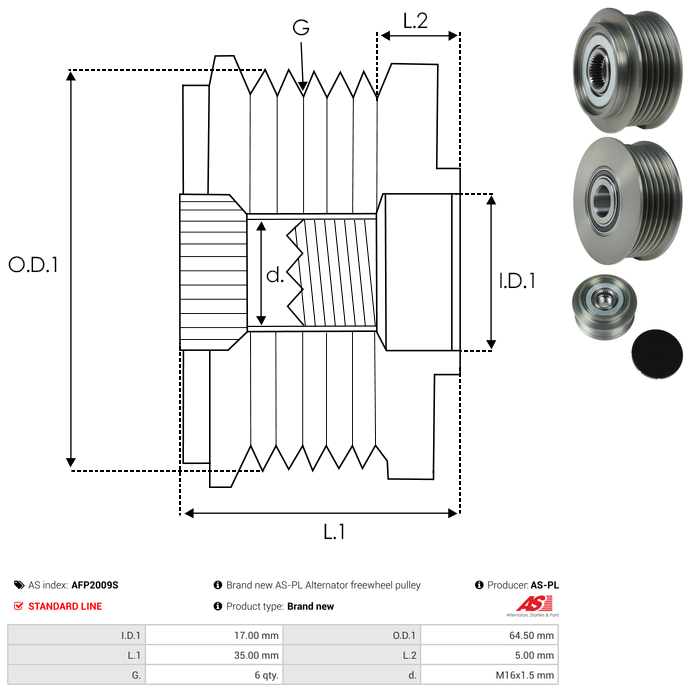

Specifications
Grooves | 6 qty |
Inside Diameter (I.D.1) | 17 mm |
Length (L.1) | 35 mm |
Length (L.2) | 5 mm |
Outside Diameter (O.D.1) | 64.5 mm |
Thread size & pitch (d.) | M16x1.5 mm |
Unit Type | HITACHI |
Reference Information
UD101435AFP GD115958 535025010 87-74-65 455244 45244 ZN5739 535025000 P0227 F-568796 06E903119T 28836 CCP90292AS 5739 81120491 051.000.250.810 CCP90292GS 8098292 APH3119 INA535025010 F-568796.01 885546MVideo/Publications
LR1180858 LR1180851Add Your Number
