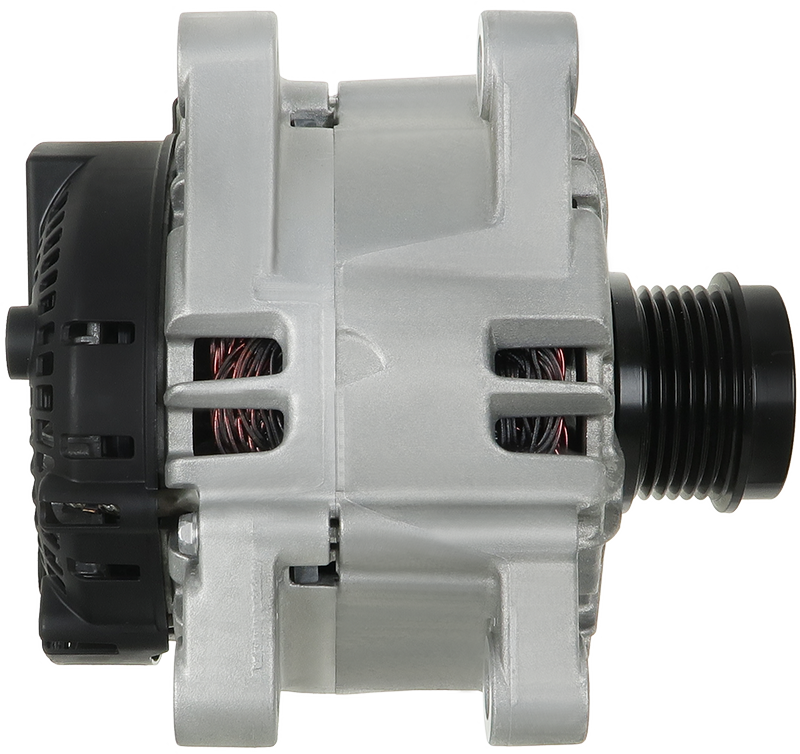

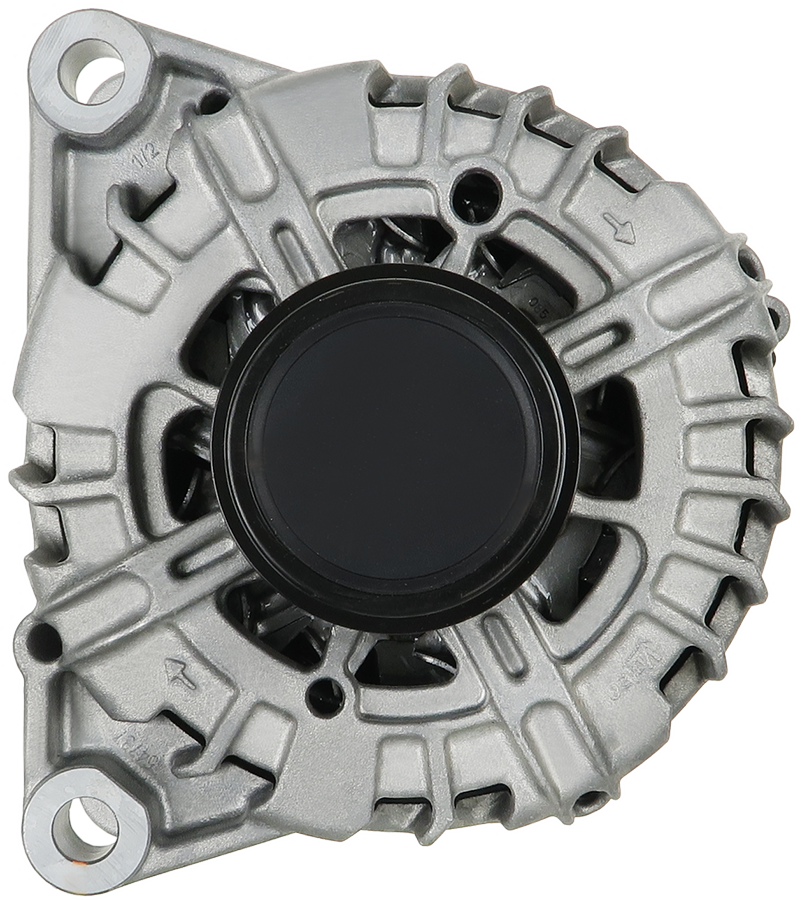

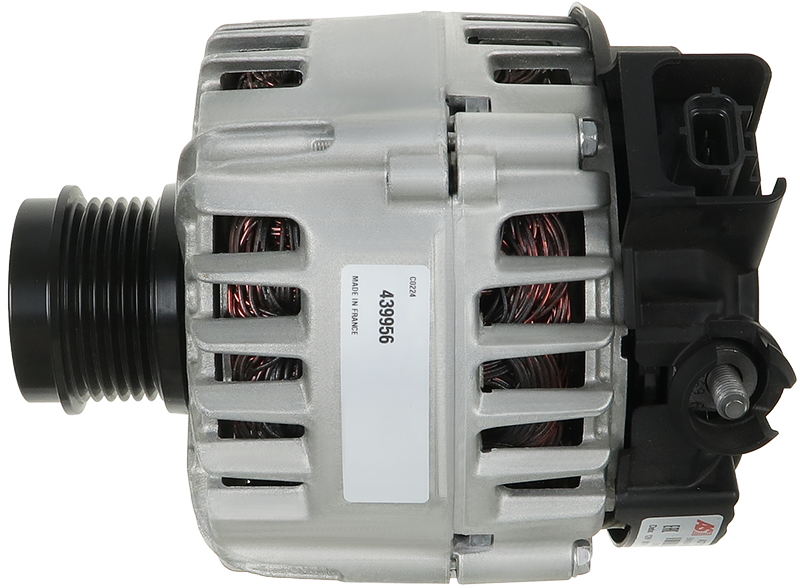

Specifications
Amp | 180 A |
Bottom Mounting Foot Width (B) | 21 mm |
Diameter (D.1) | 11.5 mm |
Diameter (D.2) | 11.5 mm |
Diameter (D.3) | M10x1.5 mm |
Diameter (D.4) | M10x1.5 mm |
Grooves | 6 qty |
Length (L.1) | 184 mm |
Mount Inside Length or Pad Mount C-C (C) | 45.5 mm |
Outside Diameter (O.D.1) | 54 mm |
Plug Code | PL_3402 |
Product Line | Premium Line |
Product Type | Brand new |
Pulley to Mount Distance (A) | 43 mm |
Pulley Type | CLUTCH |
Unit Type | VALEO |
Voltage | 12 V |
Reference Information
AVA089 LRA4040 21014N 595.910.180.000 2015089.1 595.910.180.500 595.910.180.004 440712 9083 LRA04040 ALT170890 209682A 28-7649 115362 ALV3687 UD816251(VALEO)A DS7T10300LB DS7T10300LC FG18T113 CAL15089AS 21014-OS 32003010 DS7T10300LD 2015089 AL03586 1806091 439956 89216506 ALTJ110 1801617 554677RIV VAL439956 20179980OE 617800 2193321802 20179980BN ALT170890A CAL15089GS 595.910.180.008 1865467 28-7649CTAdd Your Number
