Brand new +Plus Line Pro Alternator
STANDARD LINE
ASG-NZ
DENSO
Price:
NZ$ 443.11 including GST
NZ$ 385.31 excluding GST
or four payments of $110.78
with
Learn More
UOM:
each
Alternative Item:
AAM-S6103,A6905S
Product Code:
AAM-S6108
2
Associated Numbers
06311P5M003RM Honda 0986CR0839 Bosch ruil 0986UR0839 1012119760 Denso show 1022111040 1022111710 125592090 PSH 284766 Elstock 31100P5M003 31100P5M0030 31100P5M013 31100P5M013RM 31100P5MG02 31100PCBA0130 AL1279X (USA) ALT30710 Wood Auto CJU74 CJU76 CJV04 CJV71 CJV72 LRA02285 Lucas RNL9760ND RNL RNL9760NDT WOOALT30710 101211-9760 102211-1710 HONDA LESTER 13722 ANJ237 DXA574 ACDelco 334-1281 Reman Service Europe 0-986-UR0-839 DENSO 101211-976 102211-104 102211-1040 Parts 210-0197 9761219-976 0631-1P5-M003 06311-P5M-003RM 31100-P5M-003 31100-PCB-A0130 IAT A13722 Lester NAPA 13-9113 213-9113 NSA ALT-5108 PIC 290-5028 Remy 13384 Unipoint 3341281 DELCO REMY 3341324 1012119740 (NIPPON DENSO) 1022111020 1022111021 1022111030 9761219976 9762219102 31100PEA003 31100PEAA01 31100PEAA01RM CJV02 CJV03 5862061630 ISUZU 13776 LEA0474 LUCAS 138699 / RAYLOC 139113 1N9113 2138699 2139113 90295402 WILSON 90295402N 90295405 90295405N AIM AH-0081R Amsco VA-13722 Arrowhead AND0175 BBB Industries Dixie Electric Ltd A-8558 A-8740 HC CARGO 113612 Hollander 58722 Industry J N 400-52675 MPA New Advantage N13722 Romaine 13776N USA A1173 Voltux V2-13722 WAI 1-2083-01ND 13722N Whatcom 23866 Wilson 90-29-5402 030382 Da Silva Exchange 1012119760SEL +line 10443574 Alanko Cargo 1208301ND old 13722R 2221561002 DRI 443574 554947RI DAS 89214031 PowerMax A129870 Short code A157720 A161158 AL02378 TMI CAL40006 Casco CGB84766 Ainde L80160 ATL dxa574 658462 anj237 0986CN0825 0986CR0845 0986UR0845 1002118740 1002118740R 1012115480 1012115490 1012119110 1012119111 1012119112 1012119113 1012119120 1012119130 1012119140 1012119140R 112032 HC-Cargo 1197001ND 125510095 13538N 13538R 13684N 31100P0AA0030 31100P0AA01 31100P13013 31100P13013RM 31100P1EA01 5862025850 Isuzu 5862052600 A002TA3191 Mitsubishi A2TA3191 A8455 AHA421 ATK AL1264N AL1288X ALT30310 ALT5058B CJP75 CJS49 CJU11 CJU13 DRA0764 Delco DRA0906 F042302047 JA1408IR HC-Parts LRA02196 LRA03713 LRA2196 LRA3713 RNL5490ND RNL8740ND TNA035 TWA WOOALT30310 WOOALT5058B LRA2285 31100PCB003Specifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 56 mm |
| Diameter (D.1) | 10.5 mm |
| Diameter (D.2) | 8.5 mm |
| Length (L.1) | 165 mm |
| OEM Product | No |

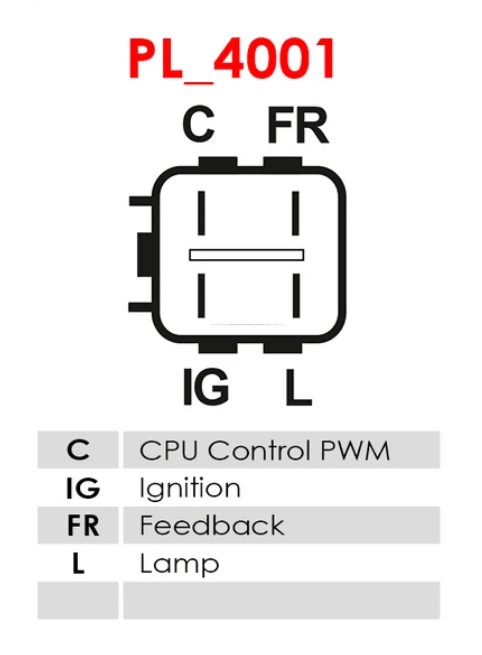

| Plug Code | PL_4001 . |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 62 mm |
| Pulley to Mount Distance (A) | 86 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ACURA | |||
| HONDA |
Reference Information
| 30382 | Da Silva |
| 06311P5M003RM | Honda |
| 0986CR0839 | Bosch Exchange |
| 0986UR0839 | Bosch Exchange |
| 1012119760 | Denso |
| 1012119760SEL | +line |
| 1022111020 | Denso |
| 1022111021 | Denso |
| 1022111040 | Denso |
| 1022111710 | Denso |
| 10443574 | Alanko |
| 113612 | Cargo |
| 1208301ND | WAI old |
| 125592090 | PSH |
| 13722 | Lester |
| 13722N | WAI |
| 13722R | WAI |
| 2221561002 | DRI |
| 284766 | Elstock |
| 31100P5M003 | Honda |
| 31100P5M0030 | Honda |
| 31100P5M013 | Honda |
| 31100P5M013RM | Honda |
| 31100P5MG02 | Honda |
| 31100PCBA0130 | Honda |
| 443574 | Alanko |
| 554947RI | DAS |
| 89214031 | PowerMax |
| A129870 | Short code |
| A157720 | Short code |
| A161158 | Short code |
| AL02378 | TMI |
| AL1279X | Bosch (USA) |
| ALT30710 | Wood Auto |
| CAL40006 | Casco |
| CGB84766 | Ainde |
| CJU74 | Honda |
| CJU76 | Honda |
| CJV04 | Honda |
| CJV71 | Honda |
| CJV72 | Honda |
| L80160 | ATL |
| LRA02285 | Lucas |
| RNL9760ND | RNL |
| RNL9760NDT | RNL |
| WOOALT30710 | Wood Auto |
