Brand new OEM DENSO Alternator
PREMIUM LINE
Denso
MAGNETI MARELLI
Price:
NZ$ 520.81 including GST
NZ$ 452.88 excluding GST
or four payments of $130.20
with
Learn More
each
AGD-S5077
2
Associated Numbers
| 1042113980 | Denso | |
| 1042113981 | Denso | |
| 1042114050 | Denso | |
| 185540130 | PSH | |
| 288578 | Elstock | |
| 288592 | Elstock | |
| 3140060R00 | Suzuki | |
| 3140060R01 | Suzuki | |
| 3140060R10 | Suzuki | |
| 314006R0 | Suzuki | |
| DRA1928 | Remy | |
| LRA04469 | Lucas |
ms1042113980 ms1042103981 ms1042114050 ms1042114051
Specifications
| Amp | 130 A |
| Bottom Mounting Foot Width (B) | 11.8 mm |
| Diameter (D.1) | 10.5 mm |
| Diameter (D.2) | M8x1.25 mm |
| Diameter (D.3) | M10x1.25 mm |
| Mount Inside Length or Pad Mount C-C (C) | 52.5 mm |
| OEM Product | Yes |

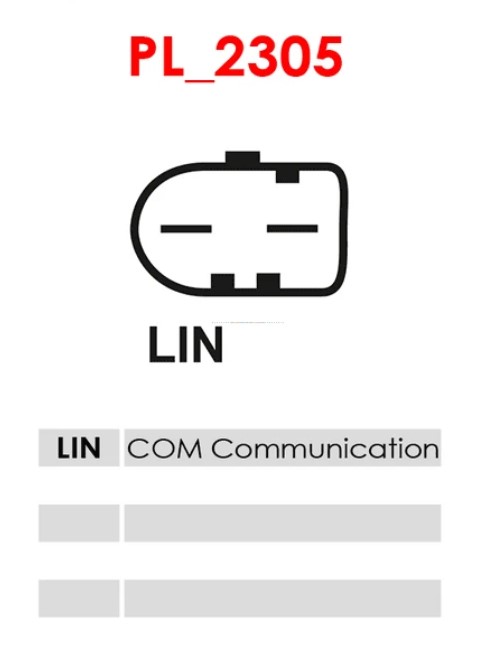

| Plug Code | PL_2305 |
| Product Line | Premium Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 58 mm |
| Pulley to Mount Distance (A) | 23 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SUZUKI |
Reference Information
| 1042113980 | Denso | |
| 1042113981 | Denso | |
| 1042114050 | Denso | |
| 185540130 | PSH | |
| 288578 | Elstock | |
| 288592 | Elstock | |
| 3140060R00 | Suzuki | |
| 3140060R01 | Suzuki | |
| 3140060R10 | Suzuki | |
| 314006R0 | Suzuki | |
| DRA1928 | Remy | |
| LRA04469 | Lucas |
