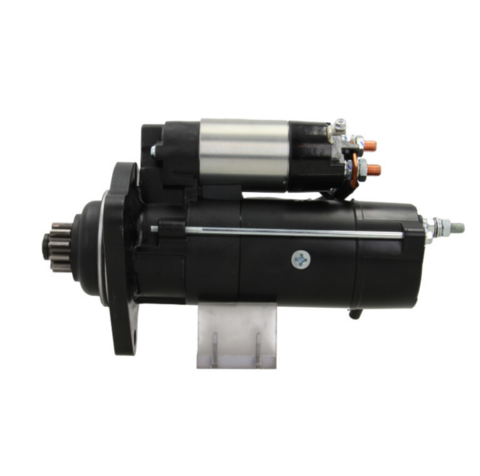

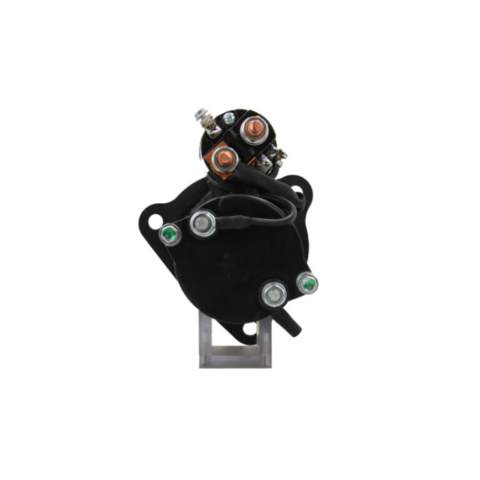

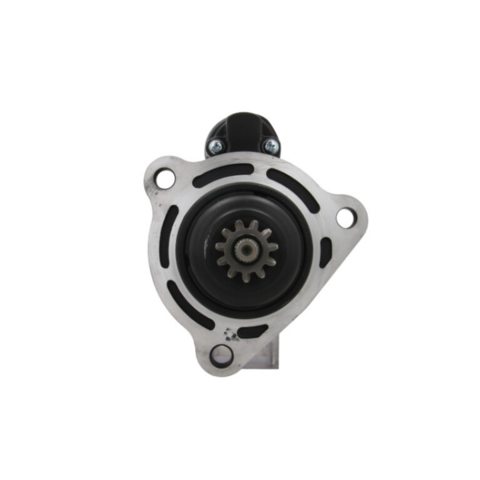

Brand new ASG-NZ Starter motor
STANDARD LINE
ASG-NZ
CAV
Price:
NZ$ 1,391.82 including GST
NZ$ 1,210.28 excluding GST
or four payments of $347.96
with
Learn More
UOM:
each
Product Code:
SAM-C11036
1
Associated Numbers
| 700032113 | PSH | |
| CA45C1227 | CAV |
700032113 PSH
CA45C1227 CAV
Specifications
| Kilowatt | 3.6 kW |
| Length (L.1) | 301 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 13.5 mm |
| Mount Hole Diameter (C.2) | 13.5 mm |
| Mount Hole Diameter (C.3) | 13.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 52 mm |
| Rotation | CW |
| Spigot Diameter (A) | 92.3 mm |
| Unit Type | PRESTOLITE |
| Voltage | 12 V |
| Wet Clutch | Yes |
Reference Information
CA45C1227
