Associated Numbers
- ARROWHEAD ACR0004, ACR0005
- BOSCH AL502X
- CHRYSLER MOTORS 3438179, 3438180, 3438184
- DELCO 10463274, 10463278, 334-2212
- J&N ELECTRICAL PRODUCTS 400-10007
- LESTER 7019, 7021, 7509
Specifications
60A Version
* this alternator can be converted to a single wire alternator by using the regulator 230-10005
** Please note the Pivot Inside Length (C) measurement includes the spacer as per picture, The distance between the aluminium brackets is 60 mm**
| Amp | 60 Amp |
| Diameter (D.1) | 10.5 mm |
| Diameter (D.2) | 10.5 mm |
| Grooves | 2 qty |
| Length (L.1) | 170 mm |
| Outside Diameter (O.D.1) | 45 mm |
| Pivot Foot Length (B) | 12.5 mm |
| Pivot Inside Length (C) | 7.5 mm |

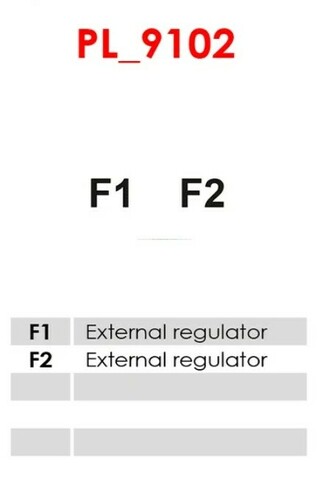

| Plug Code | PL_9102 |
| Pulley Type | SOLID |
| Pulley to Mount Distance (A) | 30 mm |
| Unit Type | CHRYSLER |
| Voltage | 12 V |
Reference Information
3438179, 3438180, 3438184
