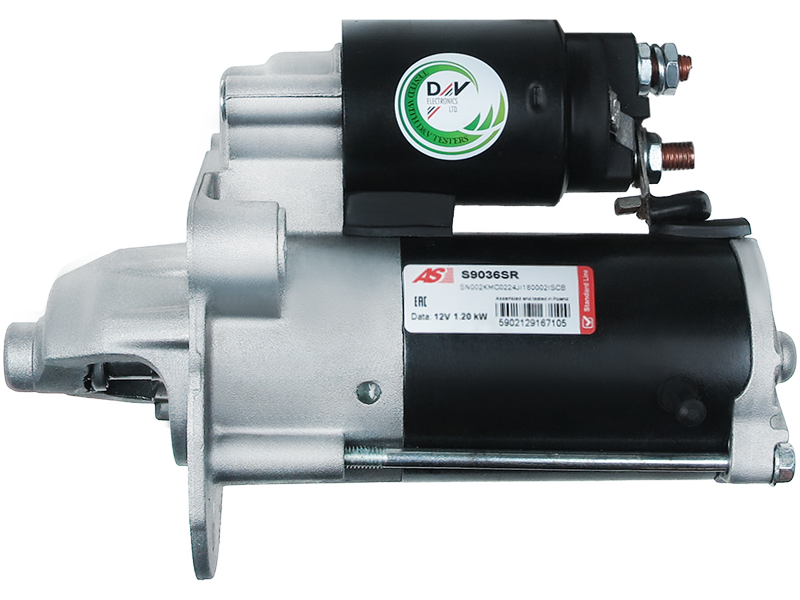

S9036SR - Remanufactured AS-PL Starter motor

Name: Remanufactured AS-PL Starter motor
Brand: AS GROUP NZ
SKU: S9036SR
Price: 225.42 NZD
Availability: InStock

Remanufactured AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

FORD

Price:

NZ$ 225.42 including GST

NZ$ 196.02 excluding GST

UOM:

each

Product Code:

S9036SR

Quantity In Stock Nationally:

No stock in NZ

Availability:

Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional

Specifications
Vehicle Applications
Reference Information
Add Your Number

Kilowatt	1.2 kW
Length (L.1)	217 mm
Mount Hole Center - Center (O.1)	116.5 mm
Mount Hole Center - Center (O.2)	74.5 mm
Mount Hole Center - Center (O.3)	83.5 mm
Mount Hole Diameter (C.1)	9.5 mm
Mount Hole Diameter (C.2)	M10x1.5 mm
Mount Hole Diameter (C.3)	M8x1.25 mm
No./Mount holes	3 qty
No./Mount holes with thread	2 qty
No./Teeth	11 qty
Pinion at Rest (B)	13 mm
Rotation	CW
Unit Type	FORD
Voltage	12 V

Make	Model	Type	Year
FORD	C-Max 1.6 TDCi		02.2007-
FORD	Focus 1.6 TDCi	[G8DA]	11.2004-
FORD	Focus 1.6 TDCi	[G8DB]	11.2004-
FORD	Focus 1.6 TDCi	[HHDA]	05.2005-
FORD	Focus 1.6 TDCi C-Max	[G8DA]	10.2003-03.2007
FORD	Focus 1.6 TDCi C-Max	[G8DB]	10.2003-03.2007
FORD	Focus 1.6 TDCi C-Max	[HHDA]	06.2005-03.2007
FORD	Focus 1.6 TDCi C-Max	[HHDB]	06.2005-03.2007
MAZDA	3 1.6 TD	[Y601]	06.2004-
MAZDA	3 1.6 Turbo Di	[Y601]	06.2004-
VOLVO	C30 1.6 Diesel	[D4164T]	10.2006-
VOLVO	S40 1.6 Diesel	[D4164T]	01.2005-
VOLVO	V50 1.6 Diesel	[D4164T]	01.2005-

3M5T-11000-CC BS51-11000-AA 3M5T-11000-CB 220371A 3M5T-11000-CE 3M5T-11000-CD 3M5T-11000-CG 3M5T-11000-CF LRS2219 1707507 3123 446522 EAA-121099 GS001029-A 1762872 BG9T-11000-AA LRS002219 30667060 590.539.113.020 8EA738258-091 8603690 DRS3968 1986S01017 1254222 F042S0H069 BS5111000AA MAV161090A 88213302 MAV161090 30667739 101341V 2S0124 101341VA 2S0124X 20450901BN 000986022131 0001986S01017 2073366 42022131 20450901OE 590.539.113.028 AEY2219 GS001029VI-R BG9T11000AA 32508N SG0388 RM3M5T-11000-CF 25-3390 6014109 6014109.1 Y601-18-400C 9.43213E+11 Y601-18-400A Y601-18-400B 2109635 1368970 STR61812 590.539.113.235 FL1WA STF1341 5014010 590.539.113.231 S12VS0193A2 63280029 1469712 20-100-01029 30644972 986022131 458650 DRS3968N LRS02219 CST14109GS MSN8029 RE3M5T-11000-CF MSRC1341 8EA011610-271 CST14109AS 101341 113908 S12VS0193 63280029010 1229427 STR8914 RE3M5T11000CF CS1341 220371 STM1060 36013613 1233234 30795406 36003219 1715776 RM3M5T11000CF AI-80035 116062
