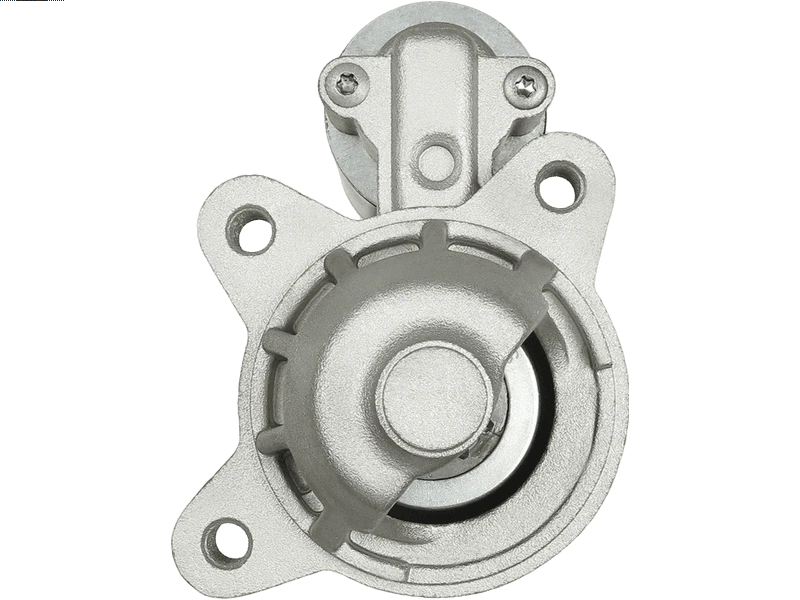

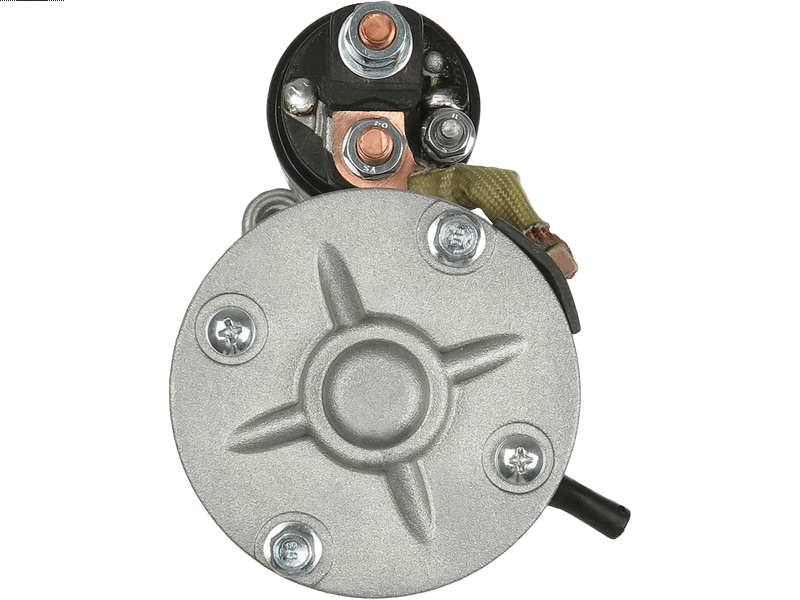

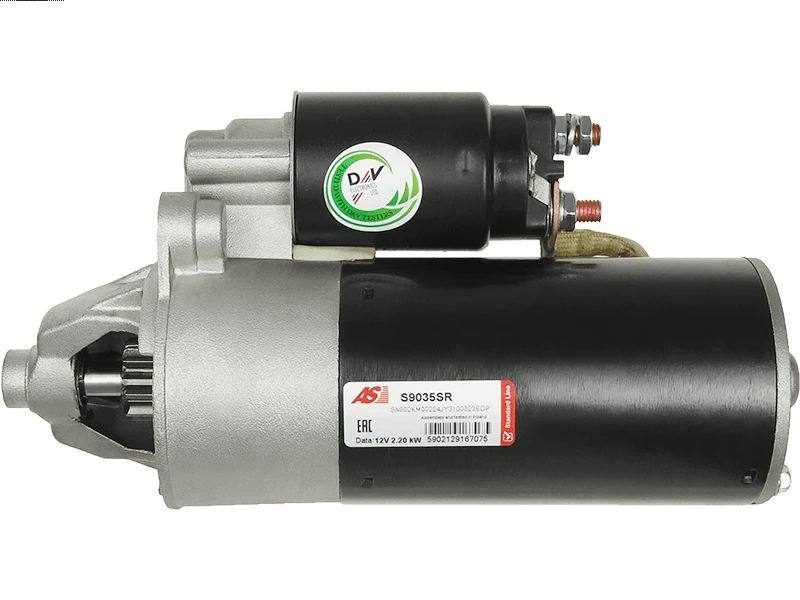

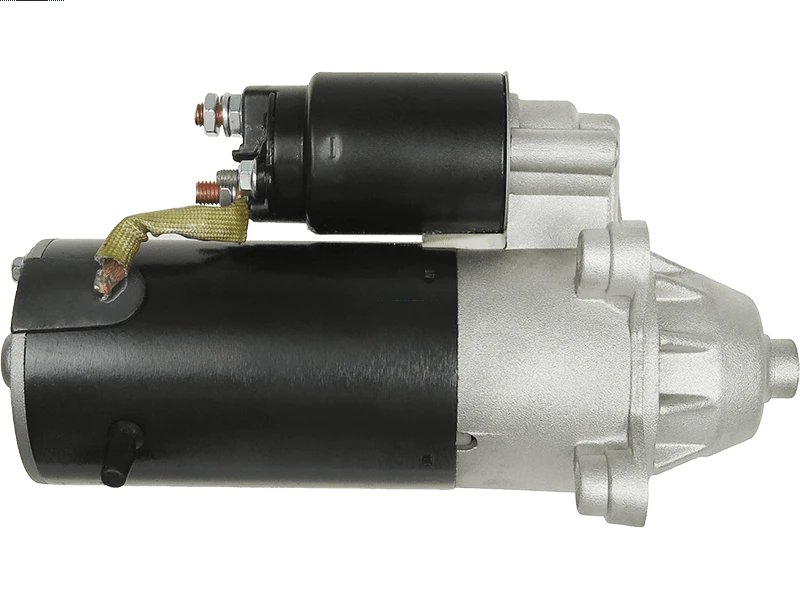

S9035SR - Remanufactured AS-PL Starter motor

Name: Remanufactured AS-PL Starter motor
Brand: AS GROUP NZ
SKU: S9035SR
Price: 307.40 NZD
Availability: InStock

Remanufactured AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

FORD

Price:

NZ$ 307.40 including GST

NZ$ 267.30 excluding GST

UOM:

each

Product Code:

S9035SR

Quantity In Stock Nationally:

No stock in NZ

Availability:

Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional

Specifications
Vehicle Applications
Reference Information
Add Your Number

Kilowatt	2.2 kW
Length (L.1)	260 mm
Mount Hole Center - Center (O.1)	103 mm
Mount Hole Center - Center (O.2)	67 mm
Mount Hole Center - Center (O.3)	67 mm
Mount Hole Diameter (C.1)	M10x1.5 mm
Mount Hole Diameter (C.2)	M10x1.5 mm
Mount Hole Diameter (C.3)	M10x1.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	3 qty
No./Teeth	10 qty
Pinion at Rest (B)	14.5 mm
Rotation	CW
Spigot Diameter (A)	76 mm
Unit Type	FORD
Voltage	12 V

Make	Model	Type	Year
FORD	Escort 1.8 TD	[RFD]	01.1995-02.1999
FORD	Escort 1.8 TD	[RFD]	01.1995-10.1998
FORD	Escort 1.8 TD	[RFD]	02.1999-07.2000
FORD	Escort 1.8 TD	[RFD]	09.1995-08.1998
FORD	Escort 1.8 TD	[RFK]	01.1995-02.1999
FORD	Escort 1.8 TD	[RFK]	01.1995-10.1998
FORD	Escort 1.8 TD	[RFK]	02.1999-07.2000
FORD	Escort 1.8 TD	[RFK]	09.1995-08.1998
FORD	Escort 1.8 Turbo D	[RVA]	10.1996-08.1999
FORD	Escort 1.8 Turbo D	[RVA]	12.1995-02.1999
FORD	Escort 1.8 Turbo D	[RVA]	12.1995-10.1998
FORD	Fiesta 1.8 D	[RTJ]	08.1995-04.2000
FORD	Fiesta 1.8 D	[RTK]	08.1995-04.2000
FORD	Fiesta 1.8 Di	[RTN]	04.2000-01.2002
FORD	Fiesta 1.8 Di	[RTN]	09.2000-08.2003
FORD	Fiesta 1.8 Di	[RTP]	04.2000-01.2002
FORD	Fiesta 1.8 Di	[RTP]	09.2000-08.2003
FORD	Fiesta 1.8 Di	[RTQ]	04.2000-01.2002
FORD	Fiesta D 1.8	[RTJ]	05.1998-04.2002
FORD	Fiesta D 1.8	[RTK]	05.1998-04.2002
FORD	Fiesta TD 1.8	[RTN]	03.2000-08.2003
FORD	Fiesta TD 1.8	[RTP]	03.2000-08.2003
FORD	Fiesta TD 1.8	[RTQ]	03.2000-08.2003
FORD	Focus 1.8 Di	[BHDA]	08.1999-11.2004
FORD	Focus 1.8 Di	[BHDB]	08.1999-11.2004
FORD	Focus 1.8 TDCi	[F9DA]	03.2001-11.2004
FORD	Focus 1.8 TDCi	[F9DB]	03.2001-11.2004
FORD	Focus 1.8 TDCi	[FFDA]	08.2002-11.2004
FORD	Focus 1.8 TDDi	[BHDA]	08.1999-11.2004
FORD	Focus 1.8 TDDi	[BHDB]	08.1999-11.2004
FORD	Focus 1.8 TDDi	[C9DA]	02.1999-11.2004
FORD	Focus 1.8 TDDi	[C9DA]	10.1998-11.2004
FORD	Focus 1.8 TDDi	[C9DB]	02.1999-11.2004
FORD	Focus 1.8 TDDi	[C9DB]	10.1998-11.2004
FORD	Focus 1.8 TDDi	[C9DC]	02.1999-11.2004
FORD	Focus 1.8 TDDi	[C9DC]	10.1998-11.2004
FORD	Focus 1.8 Turbo Di	[C9DA]	02.1999-11.2004
FORD	Focus 1.8 Turbo Di	[C9DA]	10.1998-11.2004
FORD	Focus 1.8 Turbo Di	[C9DB]	02.1999-11.2004
FORD	Focus 1.8 Turbo Di	[C9DB]	10.1998-11.2004
FORD	Focus 1.8 Turbo Di	[C9DC]	02.1999-11.2004
FORD	Focus 1.8 Turbo Di	[C9DC]	10.1998-11.2004
FORD	Mondeo 1.8 TD	[RFN]	08.1996-09.2000

1133994 MAV3570 6014104.1 101396 STRL104B 3122 STRL104D 112290 1061267 AES1263 6167032 97BB11000B3D PRSL786VI 1416235 89AB11000BA 5023593 42015090 STRL104 20450311OE R86AB11000A2A CST14104GS 6683311 1806690 6177073 458118 MAV161130 91AB11000BA 1008813 5014001 PRSL786 331884 6174535 MAV3570A 5023587 96AB11000AD SG0385 89AB11000AA 1073093 1416248 92AB11000KA DRS3676 R86AB11000A1A 63721396010 LRT163 6147936 6014104 CST14113AS R92AB11000HB 97BB-11000-BC R92AB11000HA 8EA011610-321 S12VS0023A2 8EA738258-311 LRT00163 5016235 590.537.103.028 7003146 220015 7003145 R91AX11000HB1 MQS1396 PRSL104D 6158978 STR50235 1118336 R91AB11000FA 220015A 20450401BN 91AB11000HB 91AB11000HA 5029141 R89AB11000AA 98AB11000AA 98AB11000AC 98AB11000AD 1008835 590.537.103.311 6130216 EAA-121044 98AB11000AD1 1S4U-11000-AB 1229425 1652470 98AB-11000-AC 89AB11000CA STF1396Ð— 91AB11000PA CST14113GS 97BB11000BD 101396V 97BB11000BC 5027121 97BB11000BB 1S4U-11000-AA 97BB11000BA MSRC1396 GS001025-A 20450311BN 92AX11000HA 20-100-01008 986022631 438148 S12VS0023 STRL786 R98AB11000AD 1027300 6129114 R98AB11000AC 1126987 5023431 30164N CST14104AS 30164R 86AB11000TA 91AB11000FB 91AB11000FA 91AB11000FD R89AB11000CA STRL104VI R91AB11000HA 1416207 STF1396 6203379 1061627 PRSL104 590.537.103.020 5023549 1416204 11672 5026136 STRL104NE 84AB11000AA 84AB11000AC 84AB11000AB CS613 DRS3676N MAV161130A 1058429 92AB11000HB 590.537.103.230 CS1396 6203381 92AB11000HA 6014113 9.43214E+11 1644028 5028540 25-2491 CGB-23676 91AB11000KB 88212353 6014113.1 GS001025VI-R 20450401OE STM517 114119 590.537.103.235 86AB11000A2A 86AB11000AA 000986022631 7412672 91AX11000HB 91AX11000HA 86AB11000A1A 20-100-01053 30163N
