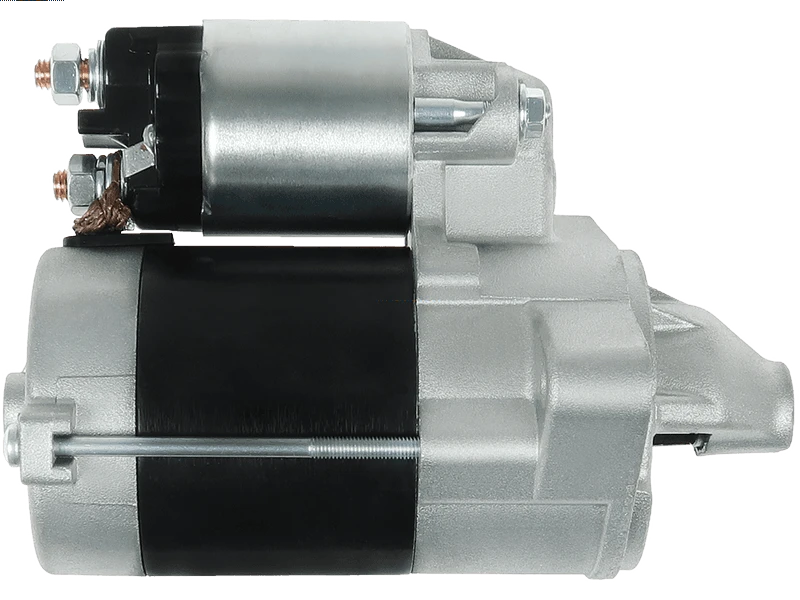

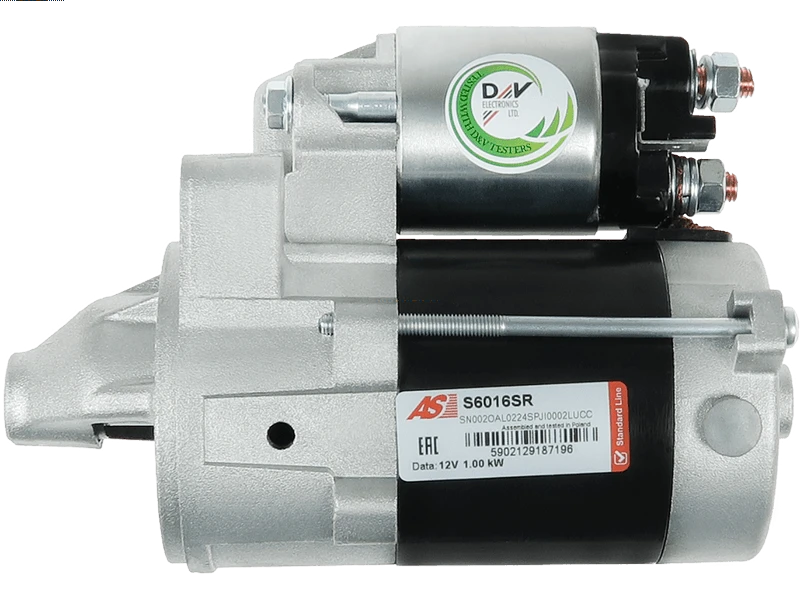

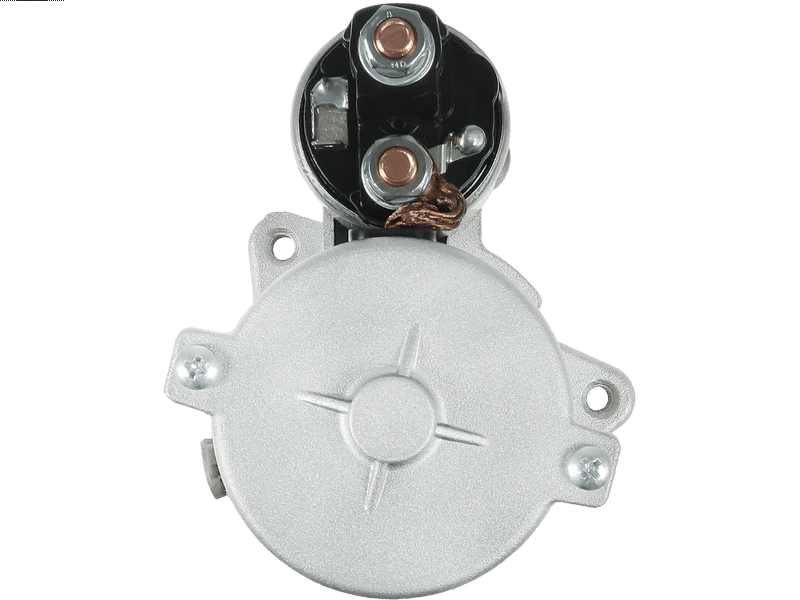

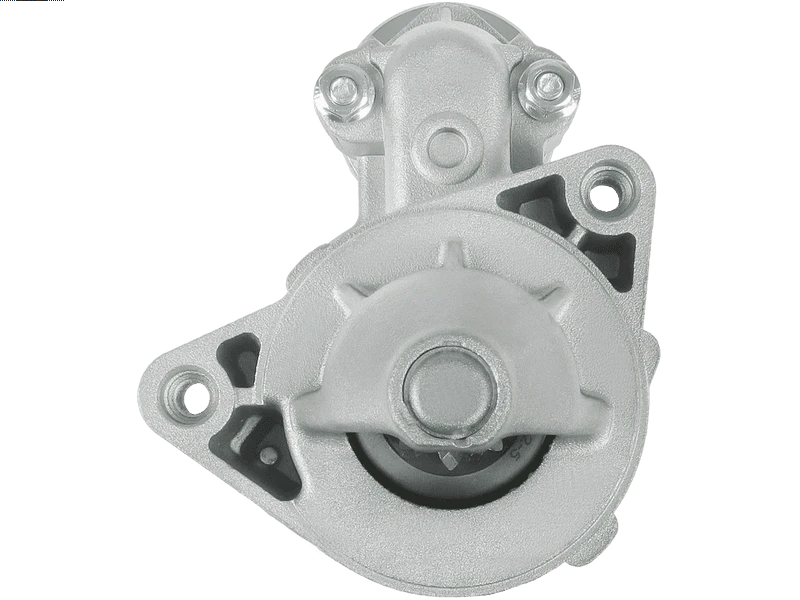

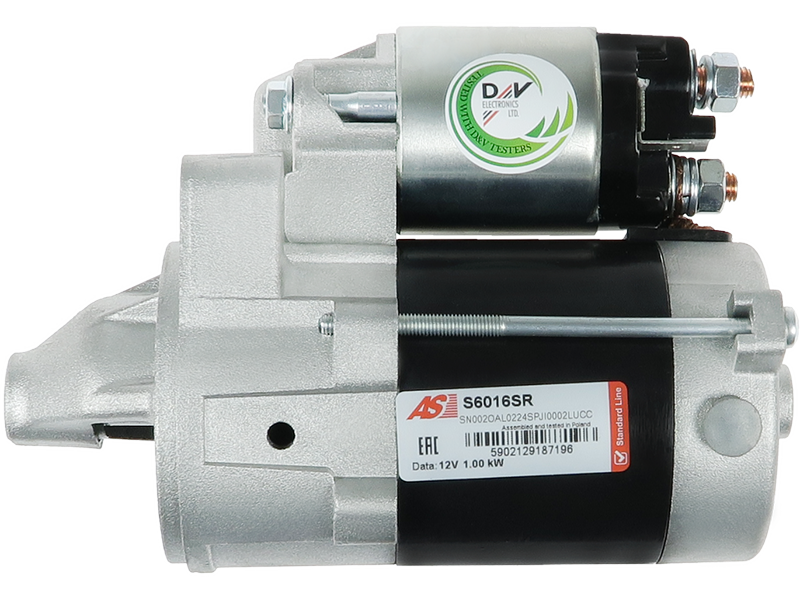

Remanufactured AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 233.17 including GST
NZ$ 202.76 excluding GST
or four payments of $58.29
with
Learn More
UOM:
each
Product Code:
S6016SR
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 1 kW |
| Length (L.1) | 180 mm |
| Mount Hole Center - Center (O.1) | 94 mm |
| Mount Hole Diameter (C.1) | M8x1.25 mm |
| Mount Hole Diameter (C.2) | M8x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 8 qty |
| OEM Product | No |
| Pinion at Rest (B) | 7 mm |
| Product Line | Standard Line |
| Product Type | Remanufactured |
| Rotation | CW |
| Spigot Diameter (A) | 75 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHEVROLET | Matiz 0.8 | [LBF(49CUL3)] | 03.2005-12.2013 |
| CHEVROLET | Matiz 0.8 | [LQ2(49CUL3)] | 03.2005-12.2013 |
| CHEVROLET | Matiz 0.8 LPG | [LBF(49CUL3)] | 03.2005-12.2007 |
| CHEVROLET | Matiz 0.8 LPG | [LQ2(49CUL3)] | 03.2005-12.2007 |
| CHEVROLET | Matiz 1.0 | [LQ4(61CUL4)] | 03.2005- |
| CHEVROLET | Matiz 1.0 | [LQ4(61CUL4)] | 03.2005-12.2007 |
| CHEVROLET | MATIZ (M200, M250) 0.8 | LBF(49CUL3) | 03.2005-12.2013 |
| CHEVROLET | MATIZ (M200, M250) 0.8 | LQ2(49CUL3) | 03.2005-12.2013 |
| CHEVROLET | MATIZ (M200, M250) 0.8 LPG | LBF(49CUL3) | 03.2005-12.2007 |
| CHEVROLET | MATIZ (M200, M250) 0.8 LPG | LQ2(49CUL3) | 03.2005-12.2007 |
| CHEVROLET | MATIZ (M200, M250) 1.0 | LQ4(61CUL4) | 03.2005- |
| CHEVROLET | MATIZ (M200, M250) 1.0 | LQ4(61CUL4) | 03.2005-12.2007 |
| CHEVROLET | Rezzo 1.6 | [L44(96CUL4)] | 03.2005- |
| CHEVROLET | Rezzo 1.6 | [L44(96CUL4)] | 08.2005- |
| CHEVROLET | Spark 0.8 | [LBF(49CUL3)] | 05.2005-02.2010 |
| CHEVROLET | Spark 0.8 | [LQ2(49CUL3)] | 05.2005-02.2010 |
| CHEVROLET | SPARK 0.8 | LBF(49CUL3) | 05.2005-02.2010 |
| CHEVROLET | SPARK 0.8 | LQ2(49CUL3) | 05.2005-02.2010 |
| CHEVROLET | SPARK (M150) 0.8 | F8CV | 09.2000-12.2006 |
| DAEWOO | Matiz 0.8 | [F8CV] | 01.2005-06.2010 |
| DAEWOO | Matiz 0.8 | [F8CV] | 08.1998-08.2002 |
| DAEWOO | Matiz 0.8 | [F8CV] | 09.1998- |
| DAEWOO | Matiz 1.0 | [B10S] | 01.2003- |
| DAEWOO | MATIZ Hatchback Van (KLA4) 0.8 | F8CV | 08.1998-08.2002 |
| DAEWOO | MATIZ (M100, M150) 0.8 | F8CV | 09.1998- |
| DAEWOO | MATIZ (M100, M150) 1.0 | B10S | 01.2003- |
| DAEWOO | MATIZ (M100, M150) 1.0 | B10S | 04.2003-12.2004 |
| DAEWOO | MATIZ (M200, M250) 0.8 | F8CV | 01.2005-06.2010 |
| DAEWOO | MATIZ (M200, M250) 1.0 | LA2(61CUL4) | 03.2005-12.2008 |
| DAEWOO | MATIZ (M200, M250) 1.0 | LQ4(61CUL4) | 03.2005-12.2008 |
| DAEWOO | Tico 0.8 | [F8C] | 02.1995-12.2000 |
| DAEWOO | Tico 0.8 | [F8CV] | 01.1996-12.2000 |
| DAEWOO | TICO (KLY3) 0.8 | F8C | 02.1995-12.2000 |
| DAEWOO | TICO (KLY3) 0.8 | F8CV | 01.1996-12.2000 |
| SUZUKI | Wagon R 1.0 | [K10A] | 09.1997-05.2000 |
| SUZUKI | Wagon R+ 1.2 | [K12A] | 02.1998-05.2000 |
| SUZUKI | Wagon R+ 1.2 4WD | [K12A] | 02.1998-05.2000 |
| SUZUKI | Wagon R+ 1.2 i | [K12A] | 02.1998-05.2000 |
| SUZUKI | WAGON R+ Hatchback (EM) 1.0 (RC410, SR410, SR412) | K10A | 02.1998-05.2000 |
| SUZUKI | WAGON R+ Hatchback (EM) 1.2 4WD (SR412) | K12A | 02.1998-05.2000 |
| SUZUKI | WAGON R+ Hatchback (EM) 1.2 (SR412) | K12A | 02.1998-05.2000 |
| SUZUKI | WAGON R+ (MA) 1.3 4WD (RB413) | G13BB | 10.2001- |
| SUZUKI | WAGON R+ (MA) 1.3 (RB413) | G13BB | 05.2000-12.2004 |
| SUZUKI | WAGON R+ (MA) 1.3 (RB413) | M13A | 09.2003-08.2006 |
Reference Information
| 040038 | DA SILVA |
| 0986JR0343 | BOSCH |
| 18910N | WAI |
| 228000-6830 | DENSO |
| 3129498 | HENKEL PARTS |
| 400.404.082.050 | WAI |
| S101982 | BTS TURBO |
| S132.814 | WAI |
| STR6735 | ELECTROLOG |
| STR70552 | WOODAUTO |
| STX201422R | STARDAX |
