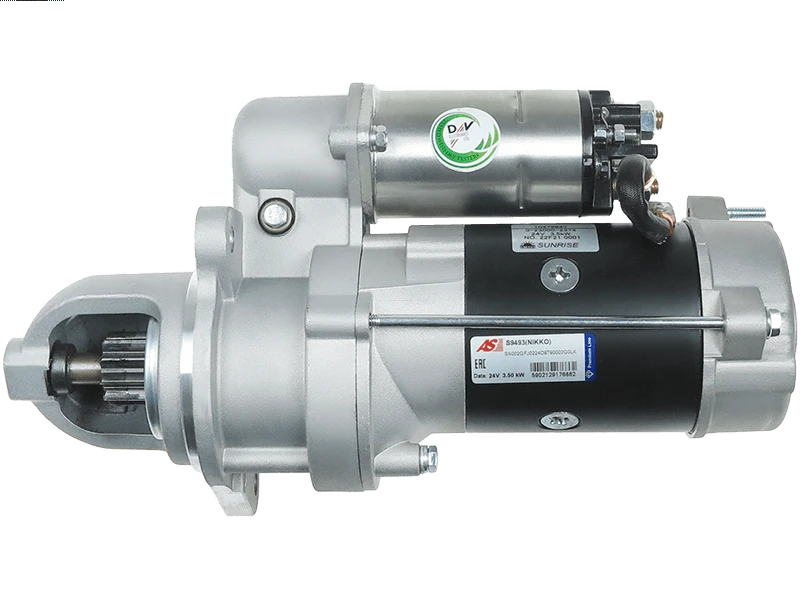

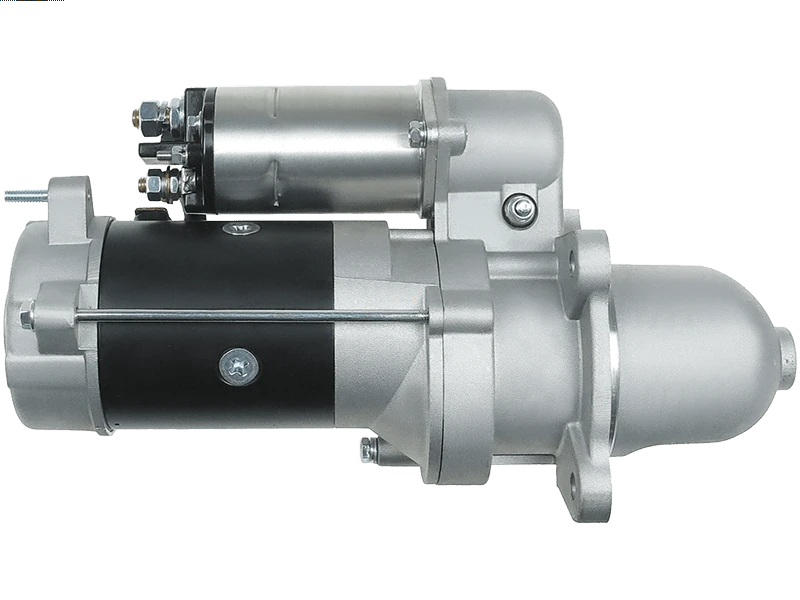

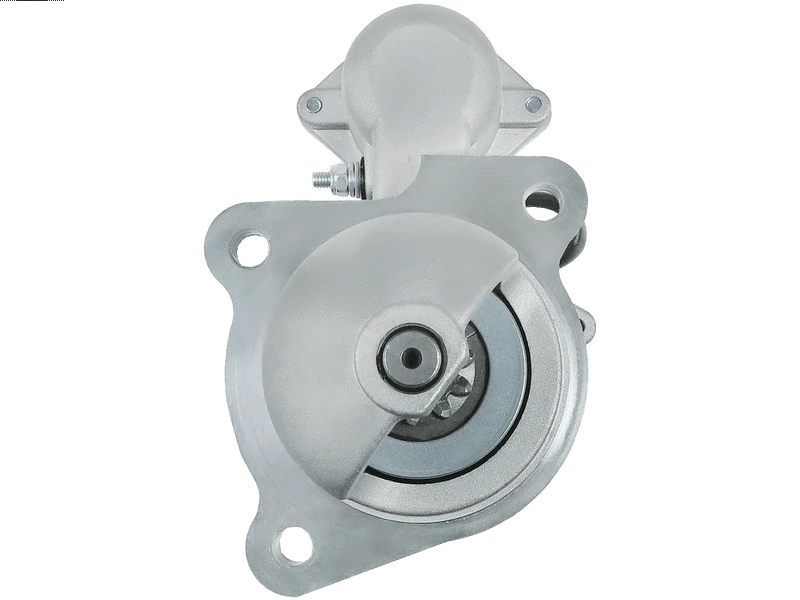

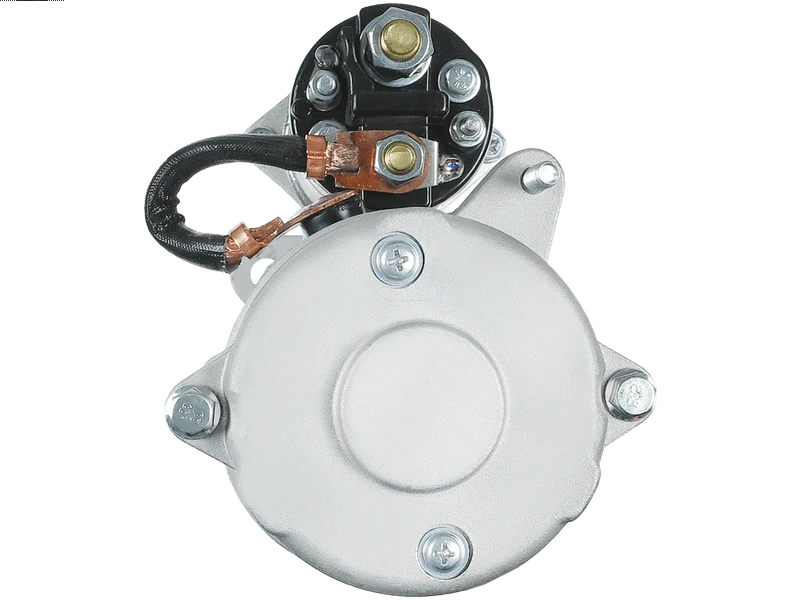

Specifications
Kilowatt | 3.5 kW |
Length (L.1) | 338 mm |
Mount Hole Center - Center (O.1) | 88 mm |
Mount Hole Center - Center (O.2) | 126 mm |
Mount Hole Center - Center (O.3) | 90 mm |
Mount Hole Diameter (C.1) | 11 mm |
Mount Hole Diameter (C.2) | 11 mm |
Mount Hole Diameter (C.3) | 11 mm |
No./Mount holes | 3 qty |
No./Mount holes with thread | 0 qty |
No./Teeth | 10 qty |
Pinion at Rest (B) | 46 mm |
Rotation | CW |
Spigot Diameter (A) | 88.7 mm |
Unit Type | NIKKO |
Voltage | 24 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
CUMMINS | 6BTA 5.9 | ||
NEW HOLLAND | D150 |
Reference Information
3282731 STRL717 0-23000-2373 0-23000-2374 STR80171 20409436BN 0-23000-2371 0-23000-2372 0-23000-2370 254481N 641.511.103.030 10465405 91-01-4452 UD100822(NIKKO)S 10479647 MS4-400 76193688 0-61000-0330 10479629 HM95R3011SE 3285750 254481 114710 6060634 641.511.103.510 STD9629 PRSL717 3675207 3675207RX CST60634ASAdd Your Number
