Specifications
Kilowatt | 5.5 kW |
Length (L.1) | 321 mm |
Mount Hole Center - Center (O.1) | 90 mm |
Mount Hole Center - Center (O.2) | 127 mm |
Mount Hole Center - Center (O.3) | 90 mm |
Mount Hole Diameter (C.1) | 11 mm |
Mount Hole Diameter (C.2) | 11 mm |
Mount Hole Diameter (C.3) | 11 mm |
No./Mount holes | 3 qty |
No./Mount holes with thread | 0 qty |

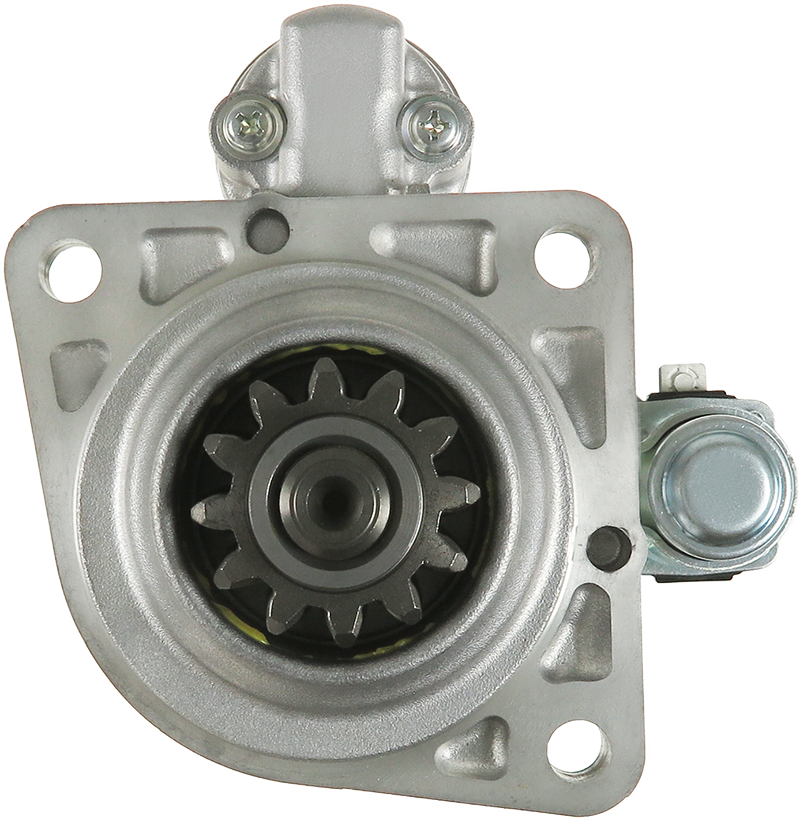

No./Teeth | 12 qty |
Pinion at Rest (B) | 48 mm |
Rotation | CW |
Spigot Diameter (A) | 89 mm |

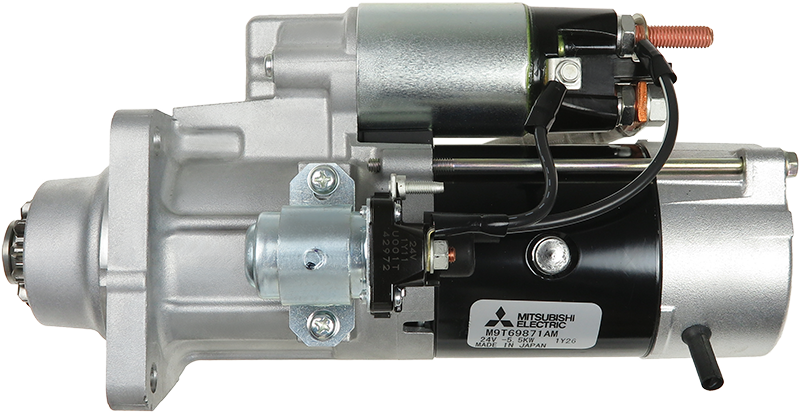

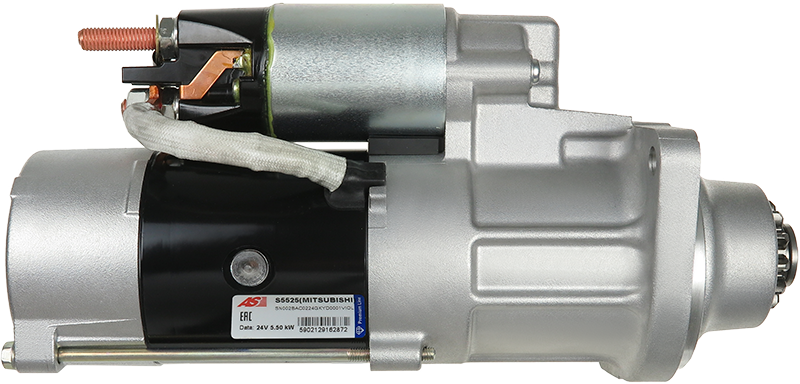

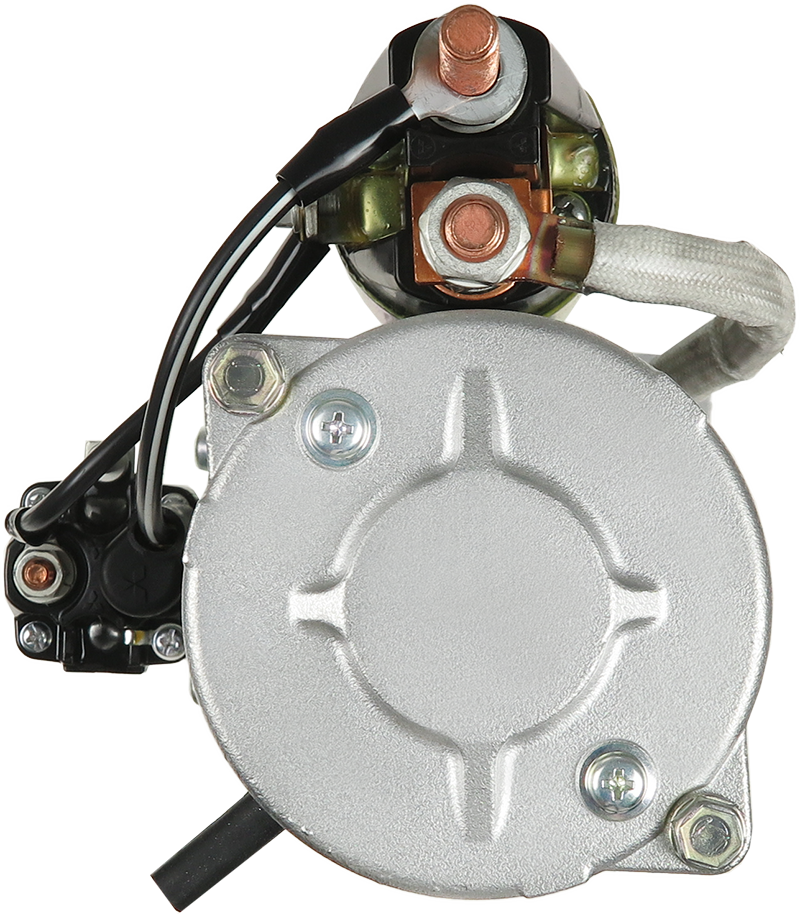

Unit Type | MITSUBISHI |
Voltage | 24 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
CUMMINS | Various Models |
Reference Information
CST35710GS MITM9T69871 6035710.1 M9T69871AM M009T69871AM 701.538.123.370 20437017OE M9T69871 M009T69871A UD100078(MITSUBISHI)S M009T69871 5344130 M9T69871AAdd Your Number
