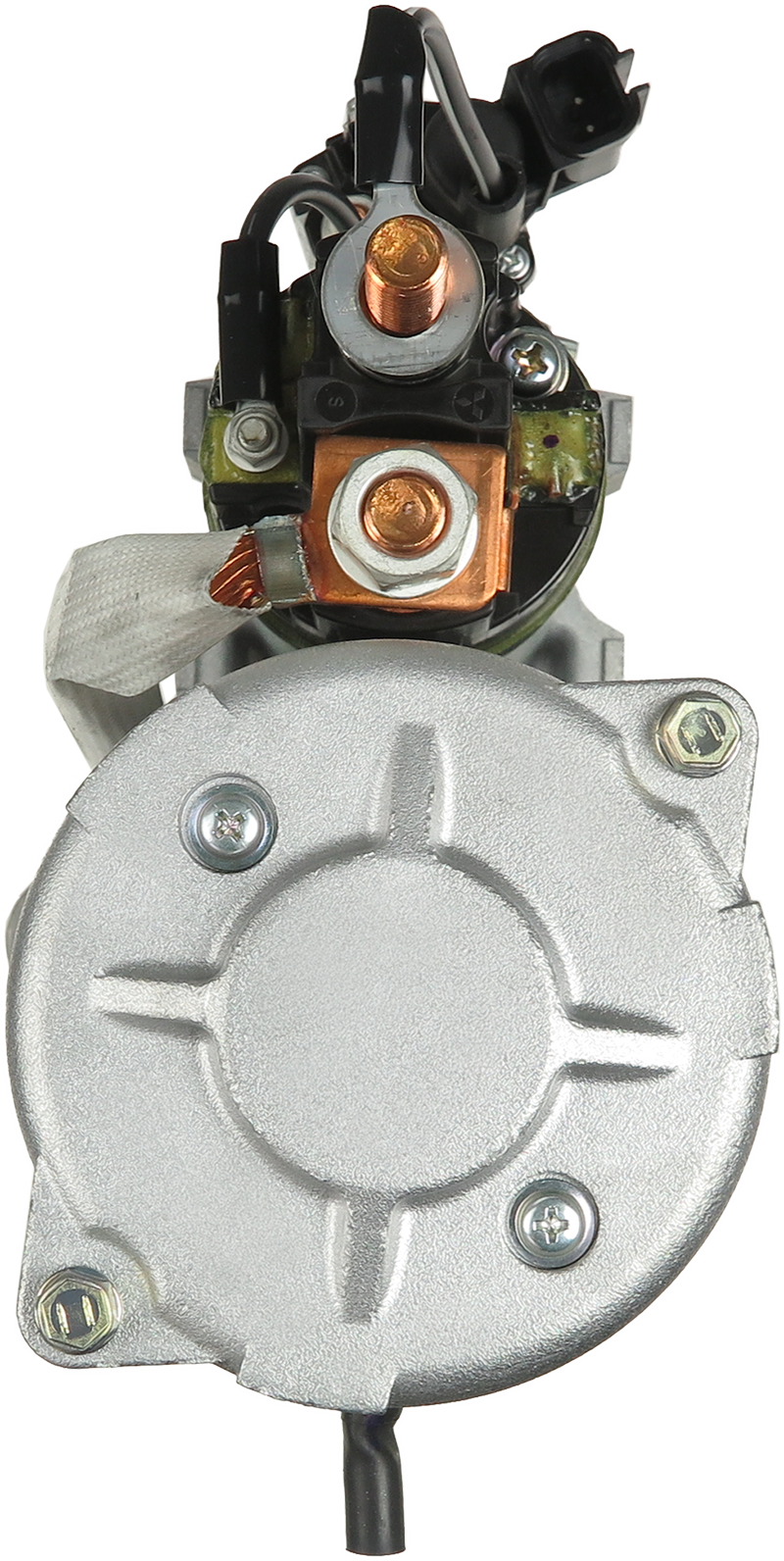

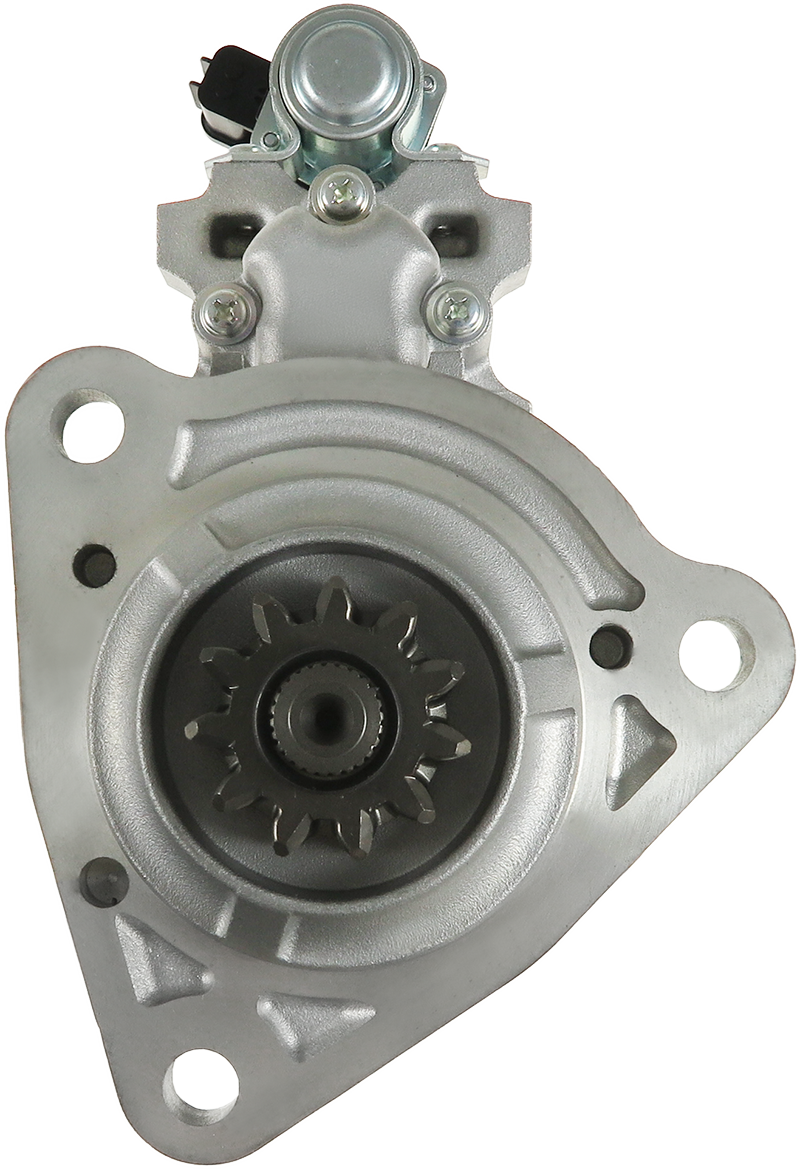

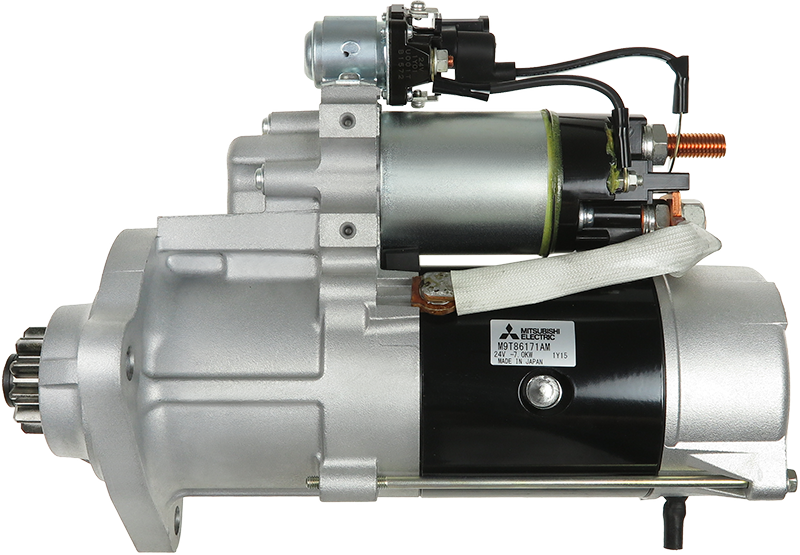

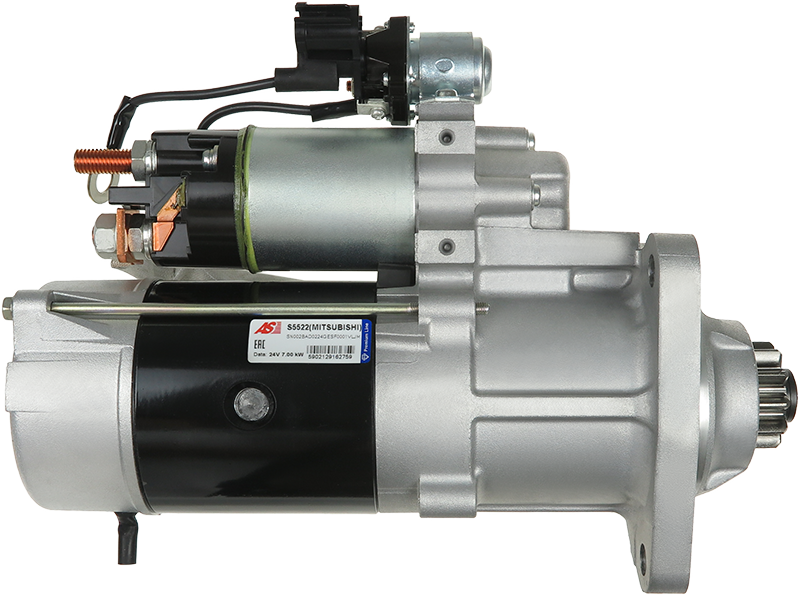

Brand new OEM MITSUBISHI Starter motor
PREMIUM LINE
Mitsubishi
MITSUBISHI
Price:
NZ$ 2,425.49 including GST
NZ$ 2,109.12 excluding GST
or four payments of $606.37
with
Learn More
UOM:
each
Product Code:
S5522(MITSUBISHI)
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
M9T86171Specifications
| Kilowatt | 7 kW |
| Length (L.1) | 339 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 14 mm |
| Mount Hole Diameter (C.2) | 14 mm |
| Mount Hole Diameter (C.3) | 14 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | Yes |
| Pinion at Rest (B) | 48 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | MITSUBISHI |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MAN | TG-S | ||
| MAN | TGS II 18.540 | D3876LF12 | 02.2020- |
| MAN | TGS II 18.540 | D3876LF12 | 02.2020- |
| MAN | TGS II 18.540 | D3876LF12 | 02.2020- |
| MAN | TGS II 18.580 | D3876LF11 | 02.2020- |
| MAN | TGS II 18.580 | D3876LF11 | 02.2020- |
| MAN | TGS II 18.580 | D3876LF11 | 02.2020- |
| MAN | TGS II 18.640 | D3876LF10 | 02.2020- |
| MAN | TGS II 18.640 | D3876LF10 | 02.2020- |
| MAN | TGS II 18.640 | D3876LF10 | 02.2020- |
| MAN | TGS II 24.540 | D3876LF12 | 02.2020- |
| MAN | TGS II 24.540 | D3876LF12 | 02.2020- |
| MAN | TGS II 24.540 | D3876LF12 | 02.2020- |
| MAN | TGS II 24.580 | D3876LF11 | 02.2020- |
| MAN | TGS II 24.580 | D3876LF11 | 02.2020- |
| MAN | TGS II 24.580 | D3876LF11 | 02.2020- |
| MAN | TGS II 24.640 | D3876LF10 | 02.2020- |
| MAN | TGS II 24.640 | D3876LF10 | 02.2020- |
| MAN | TGS II 24.640 | D3876LF10 | 02.2020- |
| MAN | TGS II 26.540 | D3876LF12 | 02.2020- |
| MAN | TGS II 26.540 | D3876LF12 | 02.2020- |
| MAN | TGS II 26.540 | D3876LF12 | 02.2020- |
| MAN | TGS II 26.540 | D3876LF12 | 02.2020- |
| MAN | TGS II 26.540 | D3876LF12 | 02.2020- |
| MAN | TGS II 26.540 | D3876LF12 | 02.2020- |
| MAN | TGS II 26.540 | D3876LF12 | 02.2020- |
| MAN | TGS II 26.580 | D3876LF11 | 02.2020- |
| MAN | TGS II 26.580 | D3876LF11 | 02.2020- |
| MAN | TGS II 26.580 | D3876LF11 | 02.2020- |
| MAN | TGS II 26.580 | D3876LF11 | 02.2020- |
| MAN | TGS II 26.580 | D3876LF11 | 02.2020- |
| MAN | TGS II 26.580 | D3876LF11 | 02.2020- |
| MAN | TGS II 26.580 | D3876LF11 | 02.2020- |
| MAN | TGS II 26.640 | D3876LF10 | 02.2020- |
| MAN | TGS II 26.640 | D3876LF10 | 02.2020- |
| MAN | TGS II 26.640 | D3876LF10 | 02.2020- |
| MAN | TGS II 26.640 | D3876LF10 | 02.2020- |
| MAN | TGS II 26.640 | D3876LF10 | 02.2020- |
| MAN | TGS II 26.640 | D3876LF10 | 02.2020- |
| MAN | TGS II 26.640 | D3876LF10 | 02.2020- |
| MAN | TGS II 28.540 | D3876LF12 | 02.2020- |
| MAN | TGS II 28.580 | D3876LF11 | 02.2020- |
| MAN | TGS II 28.640 | D3876LF10 | 02.2020- |
| MAN | TGS II 33.540 | D3876LF12 | 02.2020- |
| MAN | TGS II 33.540 | D3876LF12 | 02.2020- |
| MAN | TGS II 33.540 | D3876LF12 | 02.2020- |
| MAN | TGS II 33.580 | D3876LF11 | 02.2020- |
| MAN | TGS II 33.580 | D3876LF11 | 02.2020- |
| MAN | TGS II 33.580 | D3876LF11 | 02.2020- |
| MAN | TGS II 33.640 | D3876LF10 | 02.2020- |
| MAN | TGS II 33.640 | D3876LF10 | 02.2020- |
| MAN | TGS II 33.640 | D3876LF10 | 02.2020- |
| MAN | TGS II 35.540 | D3876LF12 | 02.2020- |
| MAN | TGS II 35.580 | D3876LF11 | 02.2020- |
| MAN | TGS II 35.640 | D3876LF10 | 02.2020- |
| MAN | TG-X | ||
| MAN | TGX I 18.520 | D3876LF02 | 01.2014-09.2021 |
| MAN | TGX I 18.520 | D3876LF02 | 09.2014-09.2021 |
| MAN | TGX I 18.520 | D3876LF05 | 01.2014-09.2021 |
| MAN | TGX I 18.540 | D3876LF08 | 09.2016-09.2021 |
| MAN | TGX I 18.540 | D3876LF08 | 09.2016-09.2021 |
| MAN | TGX I 18.560 | D3876LF01 | 01.2014-09.2021 |
| MAN | TGX I 18.560 | D3876LF01 | 09.2014-09.2021 |
| MAN | TGX I 18.560 | D3876LF04 | 01.2014-09.2021 |
| MAN | TGX I 18.580 | D3876LF07 | 09.2016-09.2021 |
| MAN | TGX I 18.580 | D3876LF07 | 09.2016-09.2021 |
| MAN | TGX I 18.640 | D3876LF09 | 09.2016-09.2021 |
| MAN | TGX I 24.520 | D3876LF02 | 01.2014-09.2021 |
| MAN | TGX I 24.560 | D3876LF01 | 01.2014-09.2021 |
| MAN | TGX I 26.520 | D3876LF02 | 01.2014-09.2021 |
| MAN | TGX I 26.520 | D3876LF02 | 01.2014-09.2021 |
| MAN | TGX I 26.520 | D3876LF02 | 01.2014-09.2021 |
| MAN | TGX I 26.520 | D3876LF02 | 01.2014-09.2021 |
| MAN | TGX I 26.520 | D3876LF02 | 01.2014-09.2021 |
| MAN | TGX I 26.520 | D3876LF02 | 01.2014-09.2021 |
| MAN | TGX I 26.520 | D3876LF02 | 01.2014-09.2021 |
| MAN | TGX I 26.520 | D3876LF05 | 01.2014-09.2021 |
| MAN | TGX I 26.520 | D3876LF05 | 01.2014-09.2021 |
| MAN | TGX I 26.520 | D3876LF05 | 01.2014-09.2021 |
| MAN | TGX I 26.540 | D3876LF08 | 09.2016-09.2021 |
| MAN | TGX I 26.540 | D3876LF08 | 09.2016-09.2021 |
| MAN | TGX I 26.540 | D3876LF08 | 09.2016-09.2021 |
| MAN | TGX I 26.540 | D3876LF08 | 09.2016-09.2021 |
| MAN | TGX I 26.540 | D3876LF08 | 09.2016-09.2021 |
| MAN | TGX I 26.540 | D3876LF08 | 09.2016-09.2021 |
| MAN | TGX I 26.540 | D3876LF08 | 09.2016-09.2021 |
| MAN | TGX I 26.560 | D3876LF01 | 01.2014-09.2021 |
| MAN | TGX I 26.560 | D3876LF01 | 01.2014-09.2021 |
| MAN | TGX I 26.560 | D3876LF01 | 01.2014-09.2021 |
| MAN | TGX I 26.560 | D3876LF01 | 01.2014-09.2021 |
| MAN | TGX I 26.560 | D3876LF01 | 01.2014-09.2021 |
| MAN | TGX I 26.560 | D3876LF01 | 01.2014-09.2021 |
| MAN | TGX I 26.560 | D3876LF01 | 01.2014-09.2021 |
| MAN | TGX I 26.560 | D3876LF04 | 01.2014-09.2021 |
| MAN | TGX I 26.560 | D3876LF04 | 01.2014-09.2021 |
| MAN | TGX I 26.560 | D3876LF04 | 01.2014-09.2021 |
| MAN | TGX I 26.580 | D3876LF07 | 09.2016-09.2021 |
| MAN | TGX I 26.580 | D3876LF07 | 09.2016-09.2021 |
| MAN | TGX I 26.580 | D3876LF07 | 09.2016-09.2021 |
| MAN | TGX I 26.580 | D3876LF07 | 09.2016-09.2021 |
| MAN | TGX I 26.580 | D3876LF07 | 09.2016-09.2021 |
| MAN | TGX I 26.580 | D3876LF07 | 09.2016-09.2021 |
| MAN | TGX I 26.580 | D3876LF07 | 09.2016-09.2021 |
| MAN | TGX I 26.640 | D3876LF09 | 09.2016-09.2021 |
| MAN | TGX I 26.640 | D3876LF09 | 09.2016-09.2021 |
| MAN | TGX I 26.640 | D3876LF09 | 09.2016-09.2021 |
| MAN | TGX I 26.640 | D3876LF09 | 09.2016-09.2021 |
| MAN | TGX I 26.640 | D3876LF09 | 09.2016-09.2021 |
| MAN | TGX I 26.640 | D3876LF09 | 09.2016-09.2021 |
| MAN | TGX I 28.520 | D3876LF02 | 01.2014-09.2021 |
| MAN | TGX I 28.520 | D3876LF02 | 01.2014-09.2021 |
| MAN | TGX I 28.520 | D3876LF05 | 01.2014-09.2021 |
| MAN | TGX I 28.540 | D3876LF08 | 09.2016-09.2021 |
| MAN | TGX I 28.540 | D3876LF08 | 09.2016-09.2021 |
| MAN | TGX I 28.560 | D3876LF01 | 01.2014-09.2021 |
| MAN | TGX I 28.560 | D3876LF01 | 01.2014-09.2021 |
| MAN | TGX I 28.560 | D3876LF04 | 01.2014-09.2021 |
| MAN | TGX I 28.580 | D3876LF07 | 09.2016-09.2021 |
| MAN | TGX I 28.580 | D3876LF07 | 09.2016-09.2021 |
| MAN | TGX I 33.520 | D3876LF02 | 01.2014-09.2021 |
| MAN | TGX I 33.520 | D3876LF02 | 01.2014-09.2021 |
| MAN | TGX I 33.520 | D3876LF02 | 01.2014-09.2021 |
| MAN | TGX I 33.520 | D3876LF05 | 01.2014-09.2021 |
| MAN | TGX I 33.540 | D3876LF08 | 09.2016-09.2021 |
| MAN | TGX I 33.540 | D3876LF08 | 09.2016-09.2021 |
| MAN | TGX I 33.540 | D3876LF08 | 09.2016-09.2021 |
| MAN | TGX I 33.560 | D3876LF01 | 01.2014-09.2021 |
| MAN | TGX I 33.560 | D3876LF01 | 01.2014-09.2021 |
| MAN | TGX I 33.560 | D3876LF01 | 01.2014-09.2021 |
| MAN | TGX I 33.560 | D3876LF04 | 01.2014-09.2021 |
| MAN | TGX I 33.580 | D3876LF07 | 09.2016-09.2021 |
| MAN | TGX I 33.580 | D3876LF07 | 09.2016-09.2021 |
| MAN | TGX I 33.580 | D3876LF07 | 09.2016-09.2021 |
| MAN | TGX I 33.640 | D3876LF09 | 09.2016-09.2021 |
| MAN | TGX I 33.640 | D3876LF09 | 09.2016-09.2021 |
| MAN | TGX I 35.520 | D3876LF02 | 01.2014-09.2021 |
| MAN | TGX I 35.520 | D3876LF05 | 01.2014-09.2021 |
| MAN | TGX I 35.540 | D3876LF08 | 09.2016-09.2021 |
| MAN | TGX I 35.560 | D3876LF01 | 01.2014-09.2021 |
| MAN | TGX I 35.560 | D3876LF04 | 01.2014-09.2021 |
| MAN | TGX I 35.580 | D3876LF07 | 09.2016-09.2021 |
| MAN | TGX I 35.640 | D3876LF09 | 09.2016-09.2021 |
| MAN | TGX I 41.560 | D3876LF01 | 01.2014-09.2021 |
| MAN | TGX I 41.580 | D3876LF07 | 09.2016-09.2021 |
| MAN | TGX I 41.640 | D3876LF03 | 09.2014-09.2021 |
| MAN | TGX II 18.540 | D3876LF12 | 02.2020- |
| MAN | TGX II 18.540 | D3876LF12 | 02.2020- |
| MAN | TGX II 18.580 | D3876LF11 | 02.2020- |
| MAN | TGX II 18.580 | D3876LF11 | 02.2020- |
| MAN | TGX II 18.640 | D3876LF10 | 02.2020- |
| MAN | TGX II 18.640 | D3876LF10 | 02.2020- |
| MAN | TGX II 24.540 | D3876LF12 | 02.2020- |
| MAN | TGX II 24.540 | D3876LF12 | 02.2020- |
| MAN | TGX II 24.580 | D3876LF11 | 02.2020- |
| MAN | TGX II 24.580 | D3876LF11 | 02.2020- |
| MAN | TGX II 24.640 | D3876LF10 | 02.2020- |
| MAN | TGX II 24.640 | D3876LF10 | 02.2020- |
| MAN | TGX II 26.540 | D3876LF12 | 02.2020- |
| MAN | TGX II 26.540 | D3876LF12 | 02.2020- |
| MAN | TGX II 26.540 | D3876LF12 | 02.2020- |
| MAN | TGX II 26.540 | D3876LF12 | 02.2020- |
| MAN | TGX II 26.540 | D3876LF12 | 02.2020- |
| MAN | TGX II 26.540 | D3876LF12 | 02.2020- |
| MAN | TGX II 26.540 | D3876LF12 | 02.2020- |
| MAN | TGX II 26.580 | D3876LF11 | 02.2020- |
| MAN | TGX II 26.580 | D3876LF11 | 02.2020- |
| MAN | TGX II 26.580 | D3876LF11 | 02.2020- |
| MAN | TGX II 26.580 | D3876LF11 | 02.2020- |
| MAN | TGX II 26.580 | D3876LF11 | 02.2020- |
| MAN | TGX II 26.580 | D3876LF11 | 02.2020- |
| MAN | TGX II 26.580 | D3876LF11 | 02.2020- |
| MAN | TGX II 26.640 | D3876LF10 | 02.2020- |
| MAN | TGX II 26.640 | D3876LF10 | 02.2020- |
| MAN | TGX II 26.640 | D3876LF10 | 02.2020- |
| MAN | TGX II 26.640 | D3876LF10 | 02.2020- |
| MAN | TGX II 26.640 | D3876LF10 | 02.2020- |
| MAN | TGX II 26.640 | D3876LF10 | 02.2020- |
| MAN | TGX II 26.640 | D3876LF10 | 02.2020- |
| MAN | TGX II 28.540 | D3876LF12 | 02.2020- |
| MAN | TGX II 28.580 | D3876LF11 | 02.2020- |
| MAN | TGX II 28.640 | D3876LF10 | 02.2020- |
| MAN | TGX II 33.540 | D3876LF12 | 02.2020- |
| MAN | TGX II 33.540 | D3876LF12 | 02.2020- |
| MAN | TGX II 33.540 | D3876LF12 | 02.2020- |
| MAN | TGX II 33.580 | D3876LF11 | 02.2020- |
| MAN | TGX II 33.580 | D3876LF11 | 02.2020- |
| MAN | TGX II 33.580 | D3876LF11 | 02.2020- |
| MAN | TGX II 33.640 | D3876LF10 | 02.2020- |
| MAN | TGX II 33.640 | D3876LF10 | 02.2020- |
| MAN | TGX II 33.640 | D3876LF10 | 02.2020- |
| MAN | TGX II 35.540 | D3876LF12 | 02.2020- |
| MAN | TGX II 35.580 | D3876LF11 | 02.2020- |
| MAN | TGX II 35.640 | D3876LF10 | 02.2020- |
| MAN | TGX II 41.540 | D3876LF12 | 02.2020- |
| MAN | TGX II 41.580 | D3876LF11 | 02.2020- |
| MAN | TGX II 41.640 | D3876LF10 | 02.2020- |
| MAN | TGX II 42.540 | D3876LF12 | 02.2020- |
| MAN | TGX II 42.580 | D3876LF11 | 02.2020- |
| MAN | TGX II 42.640 | D3876LF10 | 02.2020- |
Reference Information
| 109125 | FARCOM |
| 336610 | LOGISTIK |
| 51.26201-7261 | MAN |
| 51.26201-7288 | MAN |
| 551.571.113.130 | WAI |
| 551.571.113.370 | WAI |
| M009T86171 | MITSUBISHI |
| M009T86171AM | MITSUBISHI |
| M9T86171 | MITSUBISHI |
| M9T86171AM | MITSUBISHI |
| MITM9T86171 | WOODAUTO |
| S143.445 | WAI |
| S144.941 | WAI |
| SMI698 | AUTOTEAM |
| STM2564 | KRAUF |
| STR5630 | ELECTROLOG |
| UD100079(MITSUBISHI)S | AS-PL |
Video/Publications
S5522(MITSUBISHI)View your shopping basket or Browse other items in Starter Motors.
