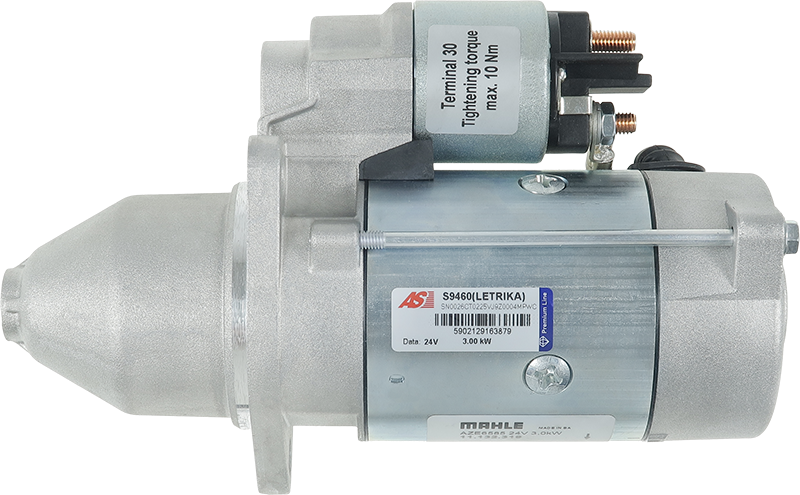

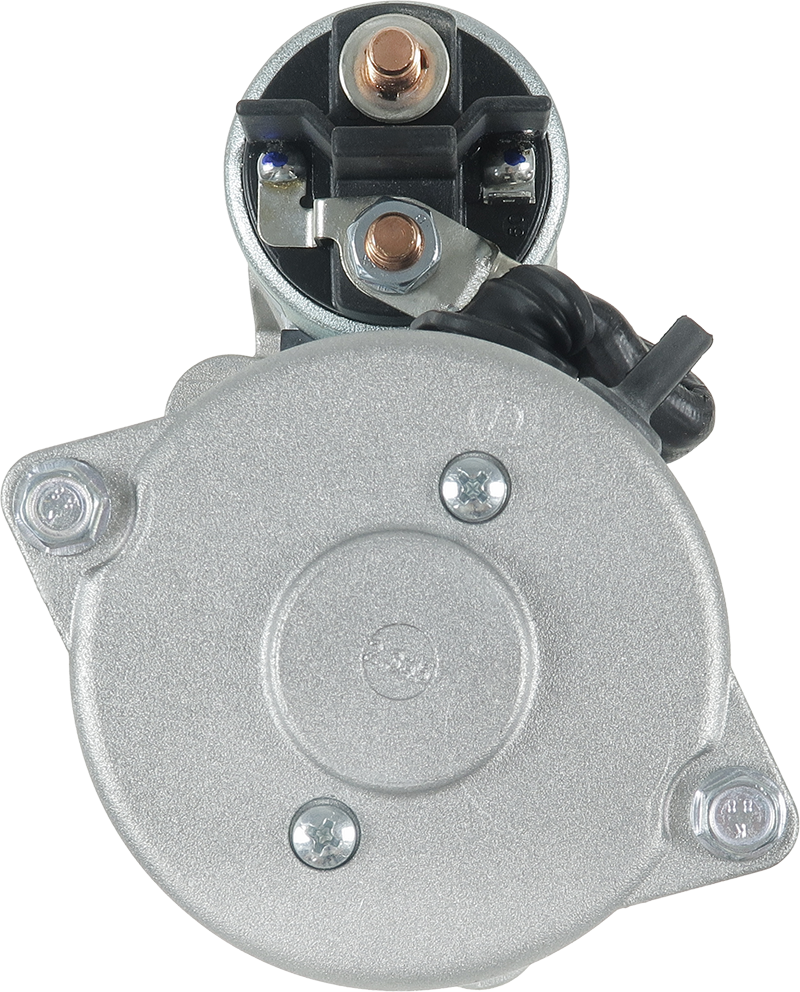

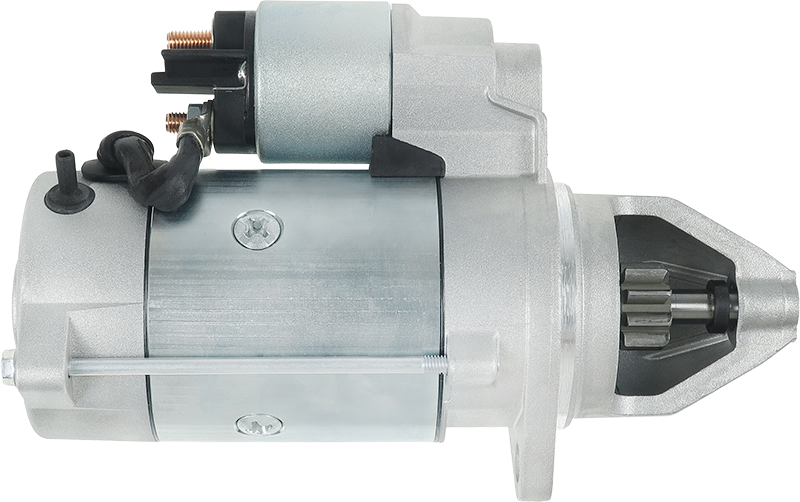

Specifications
Kilowatt | 3 kW |
Length (L.1) | 257 mm |
Mount Hole Center - Center (O.1) | 104 mm |
Mount Hole Diameter (C.1) | 13 mm |
Mount Hole Diameter (C.2) | 13 mm |
No./Mount holes | 2 qty |
No./Mount holes with thread | 0 qty |
No./Teeth | 9 qty |
Pinion at Rest (B) | 40.5 mm |
Rotation | CW |
Spigot Diameter (A) | 82.5 mm |
Unit Type | ISKRA / LETRIKA |
Voltage | 24 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
AUSA | D 150 RMA X4 | [1D90Z] | |
AUSA | D 150 RMG X4 | [1D90Z] | |
AUSA | D 150 RM X4 | [1D90Z] | |
AUSA | D 175 RMS X4 | [1D90Z] | |
AUSA | X 500 RM X4 | [1D90Z] | |
HATZ | Engine 0.7 | [1D81] | |
HATZ | Engine 0.7 | [1D81C] | |
HATZ | Engine 0.7 | [1D81Z] | |
HATZ | Engine 0.7 | [1D90] | |
HATZ | Engine 0.7 | [1D90V] | |
HATZ | Engine 0.7 | [1D90W] | |
HATZ | Engine 0.7 | [1D90Z] |
Reference Information
11.132.319 MAHMS162 6021608.1 MS162 331747 STR78022 AZE6585 MAV236080 PRSE280 CST21608GS STRE280L UD811936(LETRIKA)S 50585900 72735790 5.05859E+11 731.503.102.311 IS1431 1981700 254802M 20419806OEAdd Your Number
