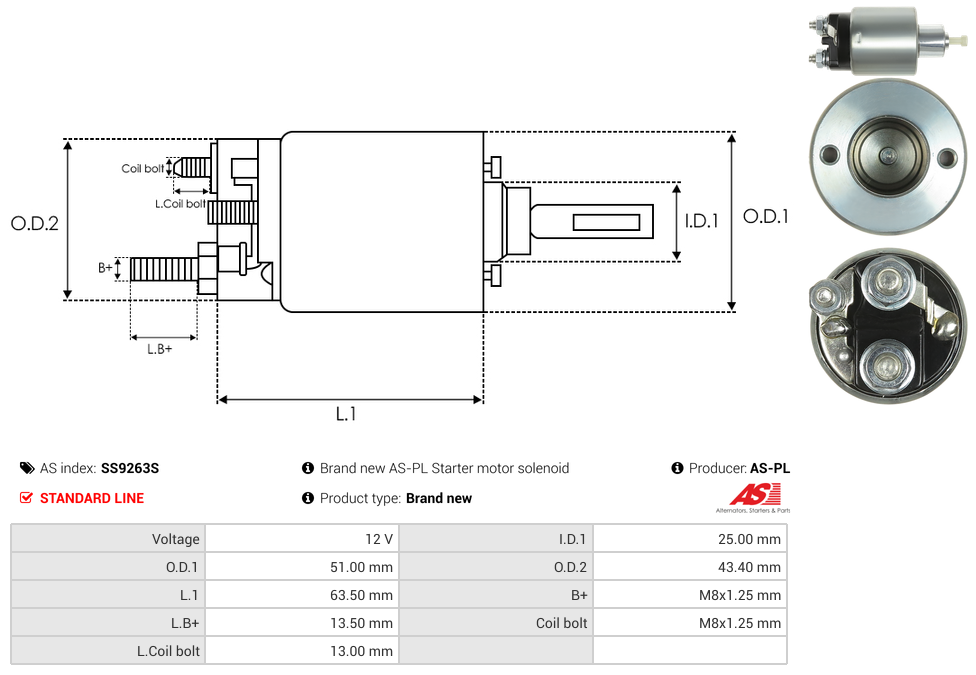

Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 13 mm |
| Inside Diameter (I.D.1) | 25 mm |
| L.B+ | 13.5 mm |
| Length (L.1) | 63.5 mm |
| Outside Diameter (O.D.1) | 51 mm |
| Outside Diameter (O.D.2) | 43.4 mm |
| Unit Type | FORD |
| Voltage | 12 V |
Reference Information
81016795 054.001.271.206 054.001.271.208 239797 UD48939SS SND13045 SSF9797 1986SE1555Video/Publications
1325943 1300504 1366473 3M5T11000AE 3M5T11000AB 3M5T11000AC 1151642 3S7T11000AD 3S7T11000AC S9063 1379703 1379702 1386127 6S4T11000AA 2S7T11000DA 4M5T11000AC 1478129 4M5T11000AA 1250901 4M5T11000AB 6G9N11000JB 6G9N11000JA 1477482 2S7T11000AA 1151216 6G9N11000AA 6G9N11000AB 1197912 1233277 1251700 1366986Add Your Number
