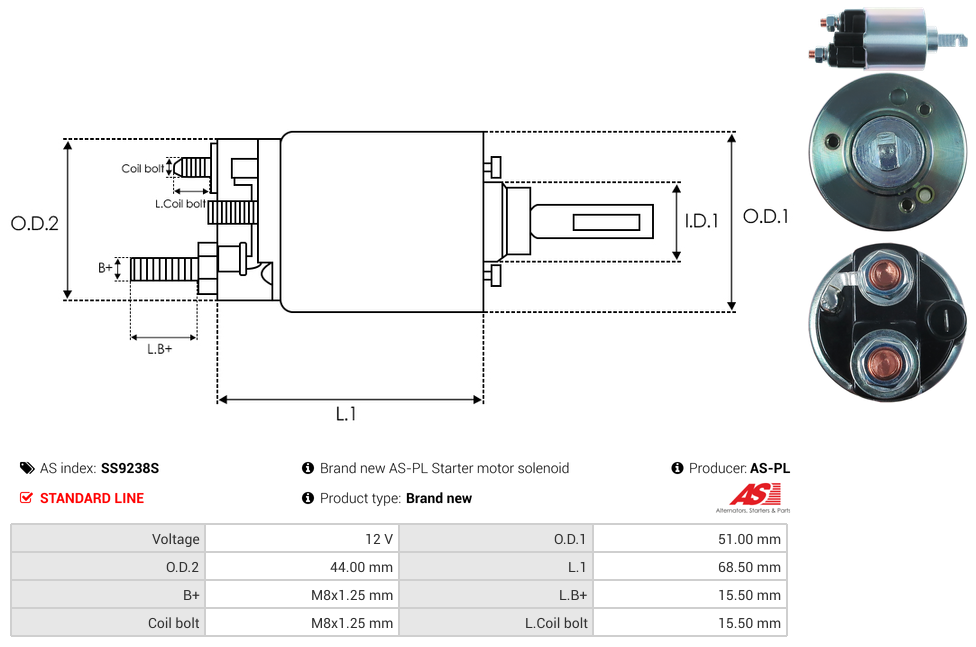

Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 15.5 mm |
| L.B+ | 15.5 mm |
| Length (L.1) | 68.5 mm |
| Outside Diameter (O.D.1) | 51 mm |
| Outside Diameter (O.D.2) | 44 mm |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Reference Information
31210-P2A-004 E4773 CQ2030115 9.40113E+11 CSO33100AS SND1775 133076 31210-P8A-A01 4.6289.9 66-8500 66-8501 AME0149 UD101220SS 20367001BN SSO33100.0 31210-PE1-671 1013112 31210-PC2-006 31210-PE1-171 31210-PC2-026 SOL5980 602 054.000.432.196 SSU3076 ZM602 81013112Video/Publications
SM30204 SM30207 SM30216Add Your Number
Contact Details
Request More Information
Add your number to the message box below and we will add it to our system
View your shopping basket or Browse other items in Starter Solenoid.
