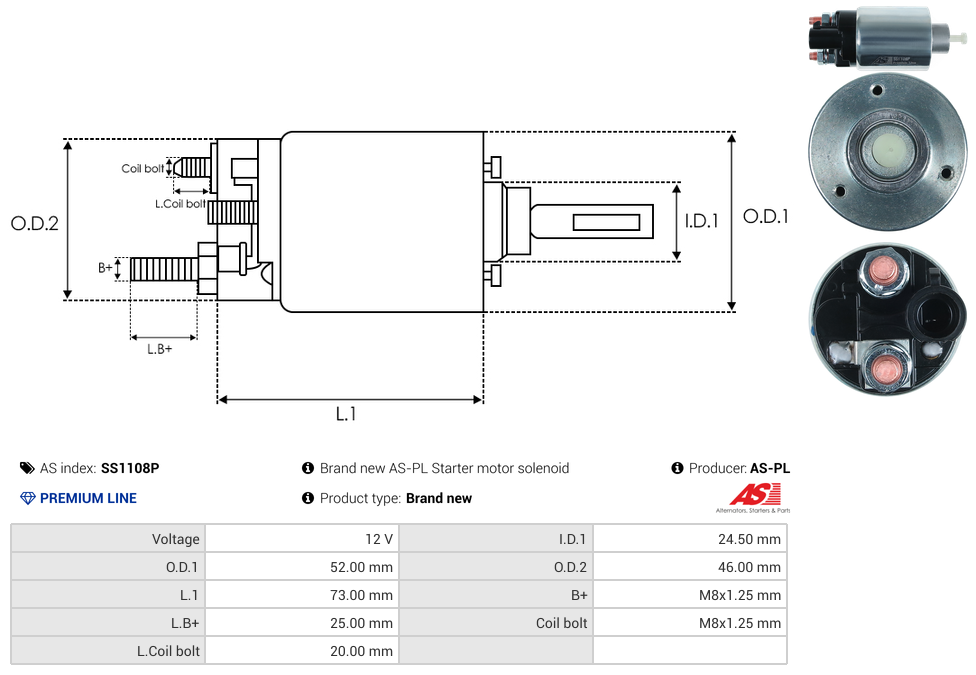

Specifications
B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 .mm |
Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
Coil Bolt Length | 20 mm |
Inside Diameter (I.D.1) | 24.5 mm |
L.B+ | 25 mm |
Length (L.1) | 73 mm |
Outside Diameter (O.D.1) | 52 mm |
Outside Diameter (O.D.2) | 46 mm |
Unit Type | DELCO |
Voltage | 12 V |
Reference Information
6601-1211 66-161 1866 054.001.275.590 ZM1866 SSD0407 SOL2011 227980 SSD6407 10503939 10518568 054.001.275.036 10516636Video/Publications
9000836 8000193 8000073 8000293 S1178S 8000294 8000295 S1158S 8000210 8000211 8000213 8000038 8000214 8000039 8000215 8000216 89017847 8100041 89060407 8200213 8000040 8000063 8000382 8000064 8000065 9000974 19180528Add Your Number
