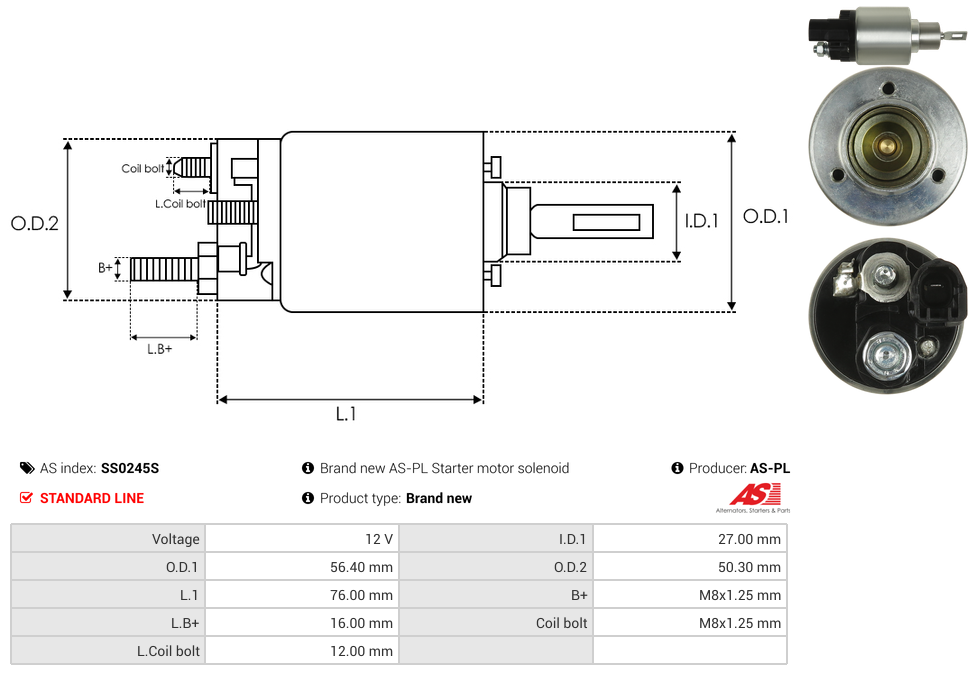

Specifications
B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 .mm |
Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
Coil Bolt Length | 12 mm |
Inside Diameter (I.D.1) | 27 mm |
L.B+ | 16 mm |
Length (L.1) | 76 mm |
Outside Diameter (O.D.1) | 56.4 mm |
Outside Diameter (O.D.2) | 50.3 mm |
Unit Type | BOSCH |
Voltage | 12 V |
Reference Information
46510 SSB3978 SOL1046 333842 054.000.798.016 ZM3978 UD48257SS 28150-0L070 227288 28150-0L071 2339303840 2339303369 3978Video/Publications
S0718S 281000L070 F000AL0111Add Your Number
