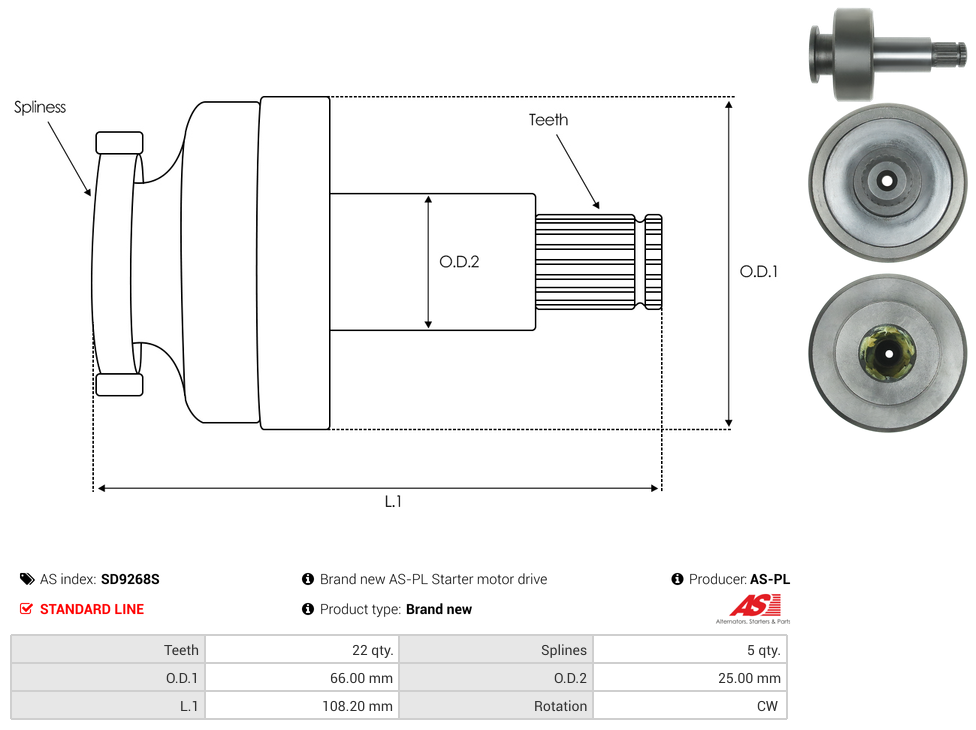

Specifications
Length (L.1) | 108.2 mm |
No./Splines | 5 qty |
No./Teeth | 22 qty |
Outside Diameter (O.D.1) | 66 mm |
Outside Diameter (O.D.2) | 25 mm |
Rotation | CW |
Unit Type | SAWAFUJI |
Reference Information
1995 136300111X9 UD45455SD 2801178111 ZN1995Video/Publications
03655020039 2810078113B S9076 03655020029 03655020023 03655020013 03655020022 28100E0080 3655020039 3656020018 3655020029 3656020014 03656020014 2810078113 3655020022 03656020018 3655020013 3655020023Add Your Number
