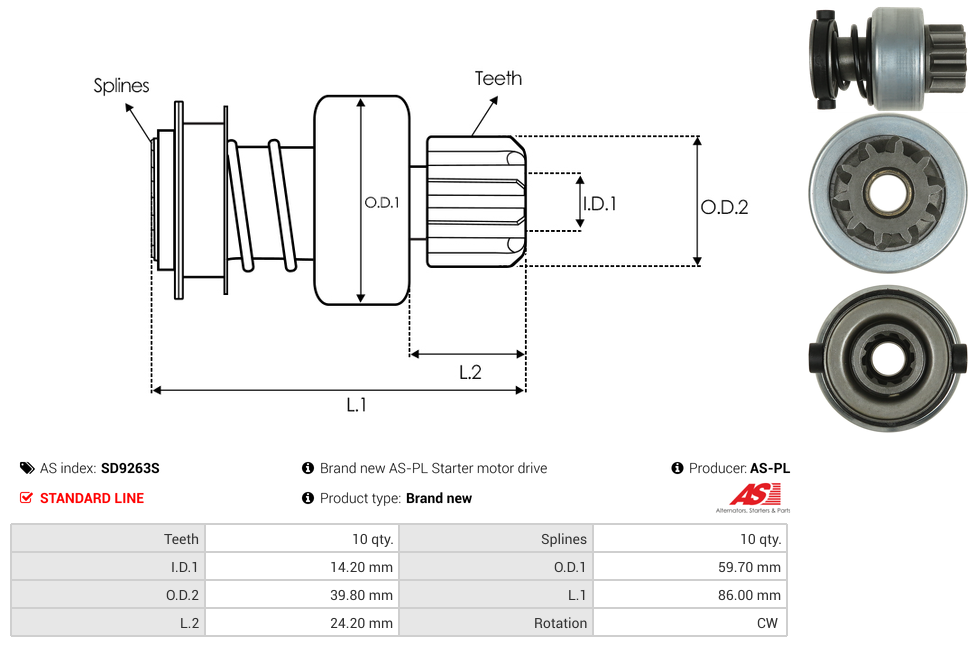

Specifications
Inside Diameter (I.D.1) | 14.2 mm |
Length (L.1) | 86 mm |
Length (L.2) | 24.2 mm |
No./Splines | 10 qty |
No./Teeth | 10 qty |
Outside Diameter (O.D.1) | 59.7 mm |
Outside Diameter (O.D.2) | 39.8 mm |
Rotation | CW |
Unit Type | CUMMINS |
Reference Information
SDM0063 UD49026SDVideo/Publications
5319202 S9340S M81R3001Add Your Number
