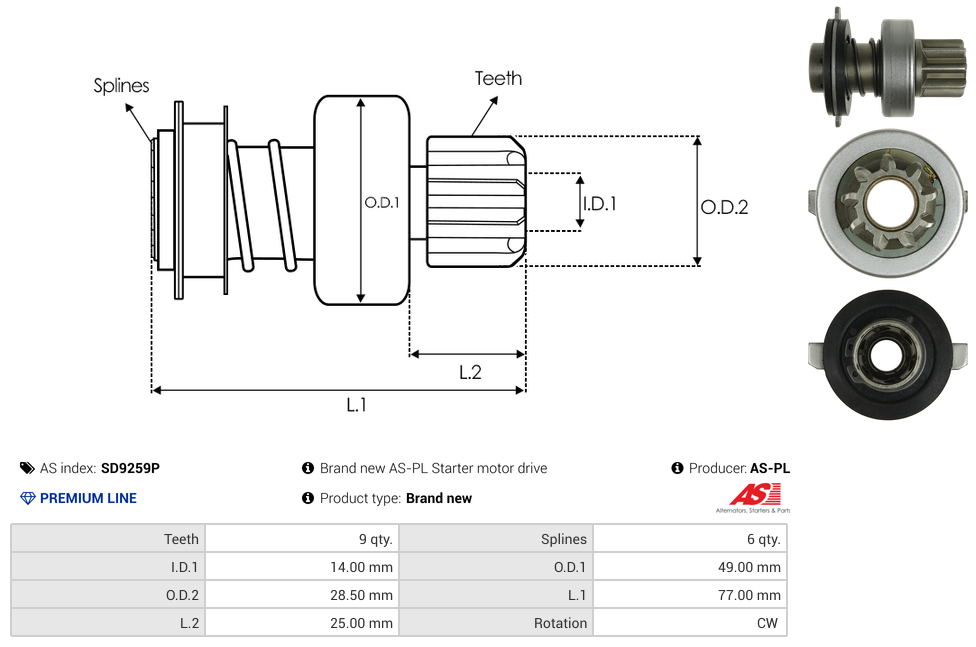

Specifications
| Inside Diameter (I.D.1) | 14 mm |
| Length (L.1) | 77 mm |
| Length (L.2) | 25 mm |
| No./Splines | 6 qty |
| No./Teeth | 9 qty |
| Outside Diameter (O.D.1) | 49 mm |
| Outside Diameter (O.D.2) | 28.5 mm |
| Rotation | CW |
| Unit Type | OTHER |
Reference Information
SDR3372 21093708600 DRVX046 623708600 UD101004SDVideo/Publications
4.22371E+11 60023708000 422370800001 4223708000Add Your Number
