Brand new AS-PL Starter motor drive
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 40.63 including GST
NZ$ 35.33 excluding GST
UOM:
each
Product Code:
SD9073S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

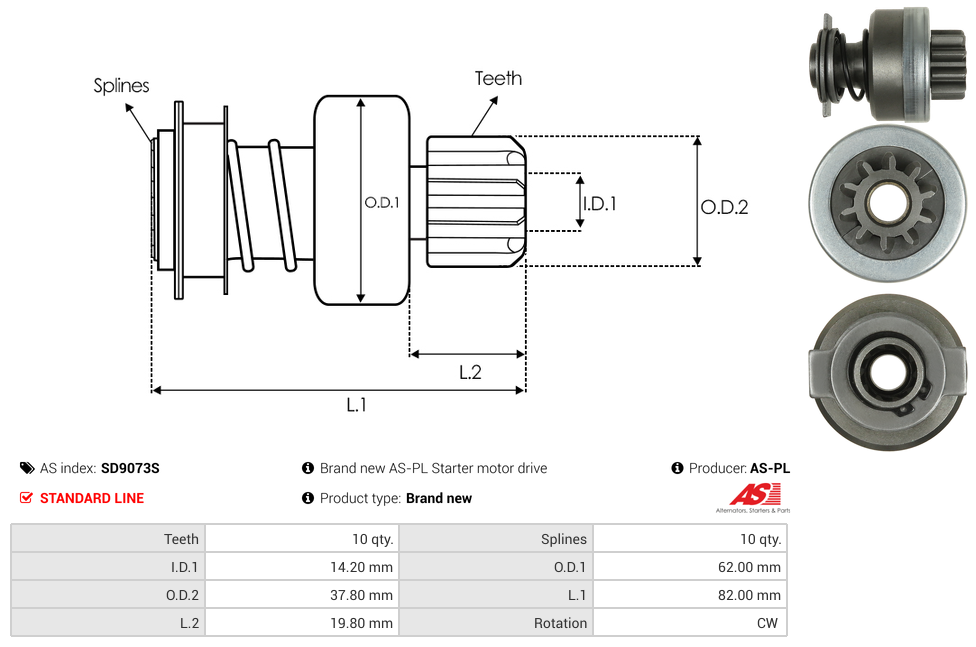

Specifications
| Inside Diameter (I.D.1) | 14.20 mm |
| Length (L.1) | 82 mm |
| Length (L.2) | 19.80 mm |
| No./Splines | 10 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Outside Diameter (O.D.1) | 62 mm |
| Outside Diameter (O.D.2) | 37.80 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Type | Drive |
| Unit Type | ISKRA / LETRIKA |
Reference Information
| 01-032 | STEMOT |
| 060.000.796.310 | PSH |
| 16.902.835 | ISKRA / LETRIKA |
| 16.913.295 | ISKRA / LETRIKA |
| 333756 | CARGO |
| 72466345 | MAHLE |
| 72738713 | MAHLE |
| 81019274 | POWERMAX |
| AM-42856 | AUTO MAGNETO |
| DRV79048 | ELECTROLOG |
| F032333756 | CARGO |
| MAHMSX766 | WOODAUTO |
| MSX1803 | MAHLE |
| MSX766 | MAHLE |
| SDI4346 | KRAUF |
| UD48808SD | AS-PL |
Video/Publications
11130944 11131271 11131357 11131399 11132086 11132094 11132260 11132302 11132348 11132402 11132403 AZF4104 AZF4294 AZF4295 AZF4346 AZF4360 AZF4365 AZF4383 AZF4384 AZF4527 AZF4572 AZF4593 S9232 S9330S S9354S S9365SView your shopping basket or Browse other items in Starter Drives.
