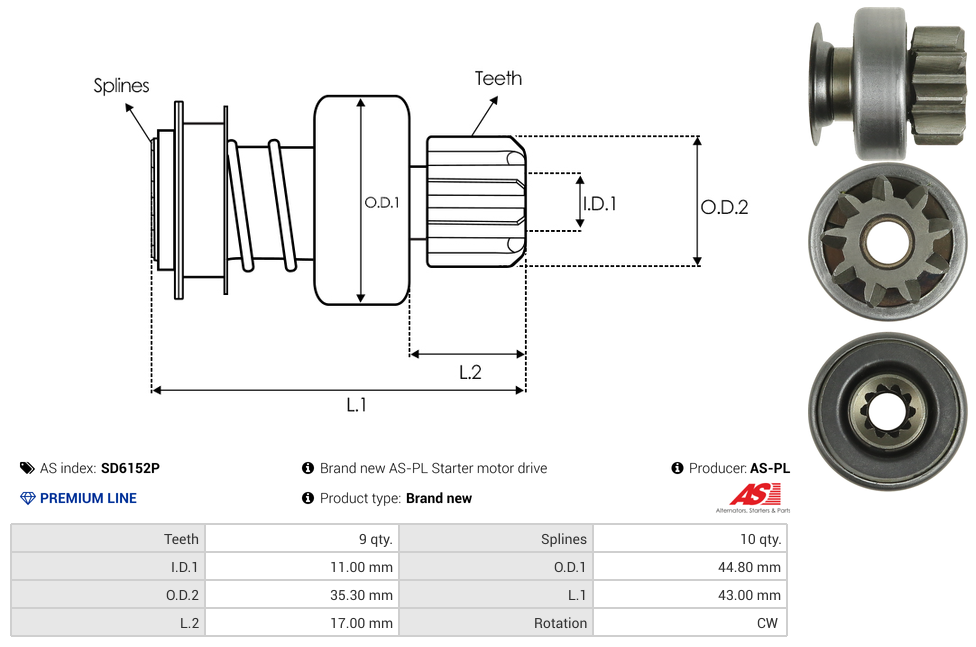

Specifications
| Inside Diameter (I.D.1) | 11 mm |
| Length (L.1) | 43 mm |
| Length (L.2) | 17 mm |
| No./Splines | 10 qty |
| No./Teeth | 9 qty |
| Outside Diameter (O.D.1) | 44.8 mm |
| Outside Diameter (O.D.2) | 35.3 mm |
| Rotation | CW |
| Unit Type | DENSO |
Reference Information
06-041 UD101075SDVideo/Publications
4280009480 S6286S 4280005480 4280009482 4280009481 S6240SAdd Your Number
