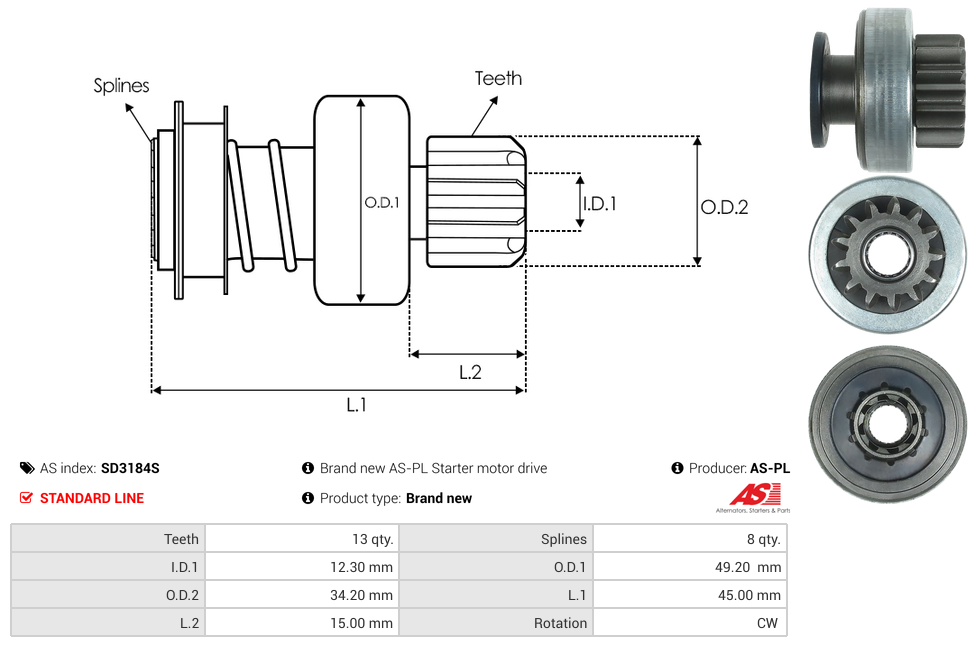

Specifications
Inside Diameter (I.D.1) | 12.3 mm |
Length (L.1) | 45 mm |
Length (L.2) | 15 mm |
No./Splines | 8 qty |
No./Teeth | 13 qty |
Outside Diameter (O.D.1) | 49.2 mm |
Outside Diameter (O.D.2) | 34.2 mm |
Rotation | CW |
Unit Type | VALEO |
Reference Information
05-110 060.001.118.000 SDV1042 69-74-65 UD45668SD 36140-03301 335578Video/Publications
488300 ESW20E18 S3158S CV2T11000AA CV2T11000AB CV2T11000ACAdd Your Number
