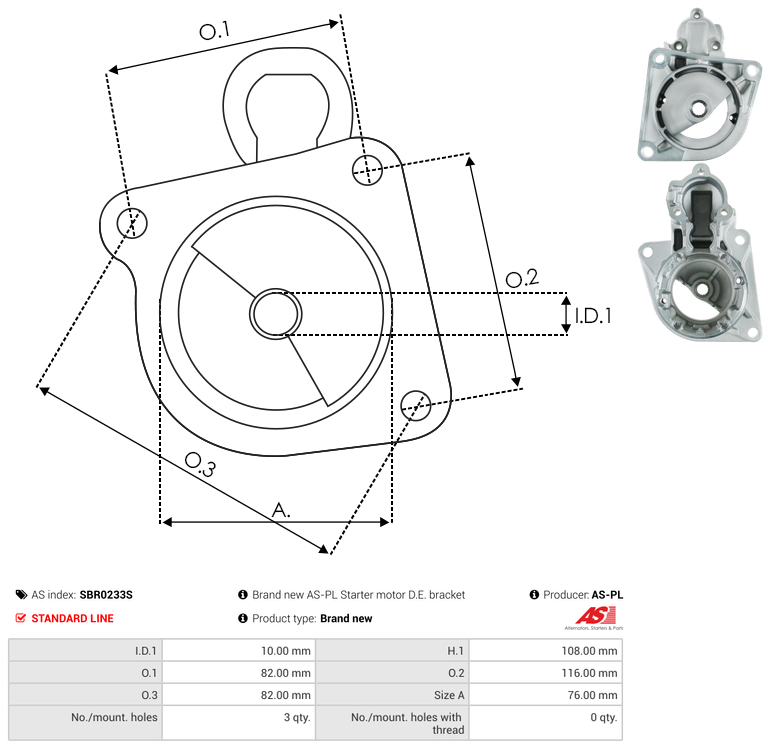

Specifications
Height (H.1) | 108 mm |
Inside Diameter (I.D.1) | 10 mm |
Mount Hole Center - Center (O.1) | 82 mm |
Mount Hole Center - Center (O.2) | 116 mm |
Mount Hole Center - Center (O.3) | 82 mm |
No./Mount holes | 3 qty |
No./Mount holes with thread | 0 qty |
Spigot Diameter (A) | 76 mm |
Unit Type | BOSCH |
Reference Information
UD48126SBRVideo/Publications
S0314 1138009 0001138009Add Your Number
