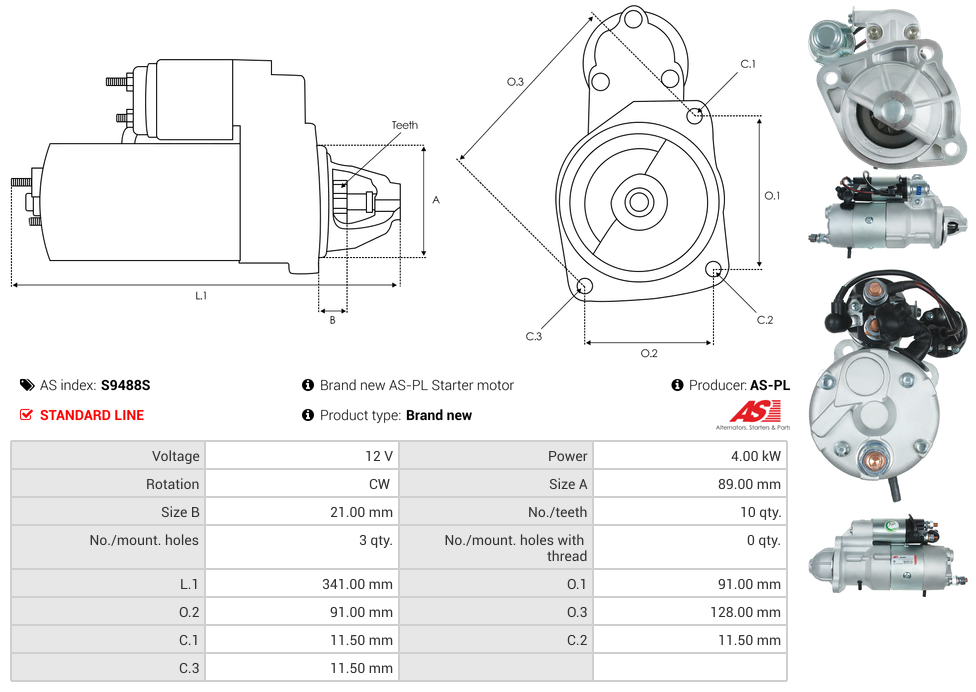

Specifications
Kilowatt | 4 kW |
Length (L.1) | 341 mm |
Mount Hole Center - Center (O.1) | 91 mm |
Mount Hole Center - Center (O.2) | 91 mm |
Mount Hole Center - Center (O.3) | 128 mm |
Mount Hole Diameter (C.1) | 11.5 mm |
Mount Hole Diameter (C.2) | 11.5 mm |
Mount Hole Diameter (C.3) | 11.5 mm |
No./Mount holes | 3 qty |
No./Mount holes with thread | 0 qty |
No./Teeth | 10 qty |
Pinion at Rest (B) | 21 mm |
Rotation | CW |
Spigot Diameter (A) | 89 mm |
Unit Type | PRESTOLITE |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
DEUTZ | Engine | [TBD226B] | |
LIUGONG | Various Models | ||
WEICHAI | Various Models | [TBD226B] |
Reference Information
M100R2005SE 170-10113 UD100856SAdd Your Number
