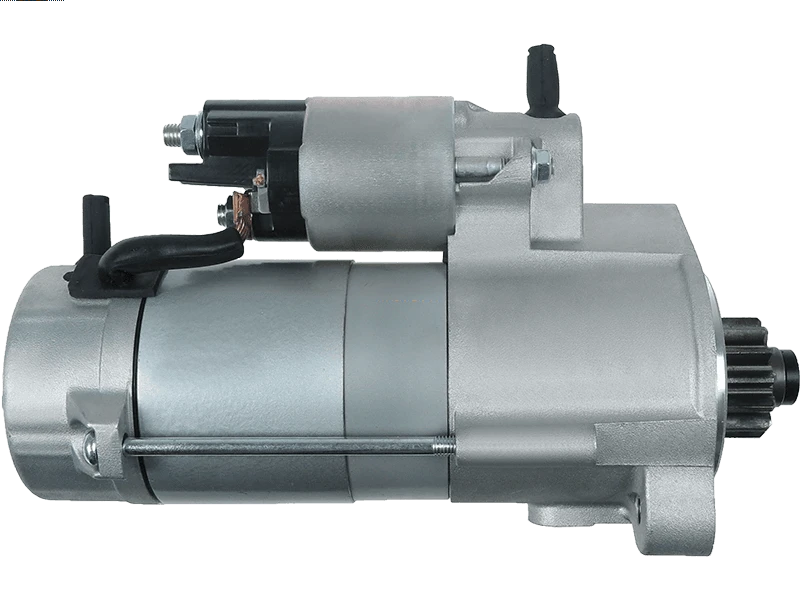

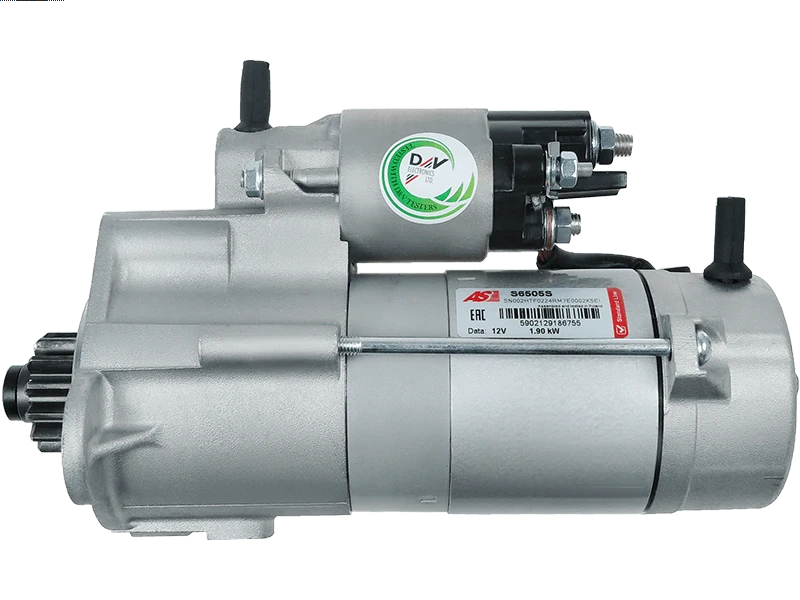

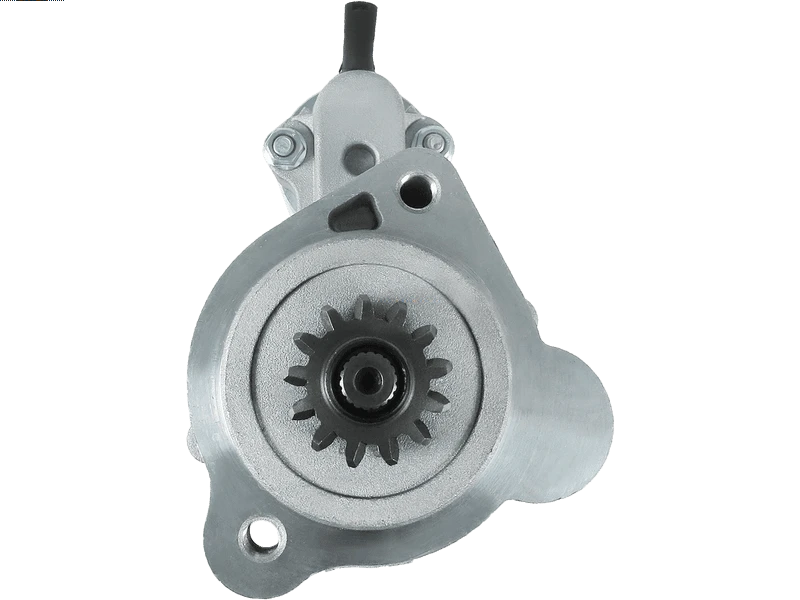

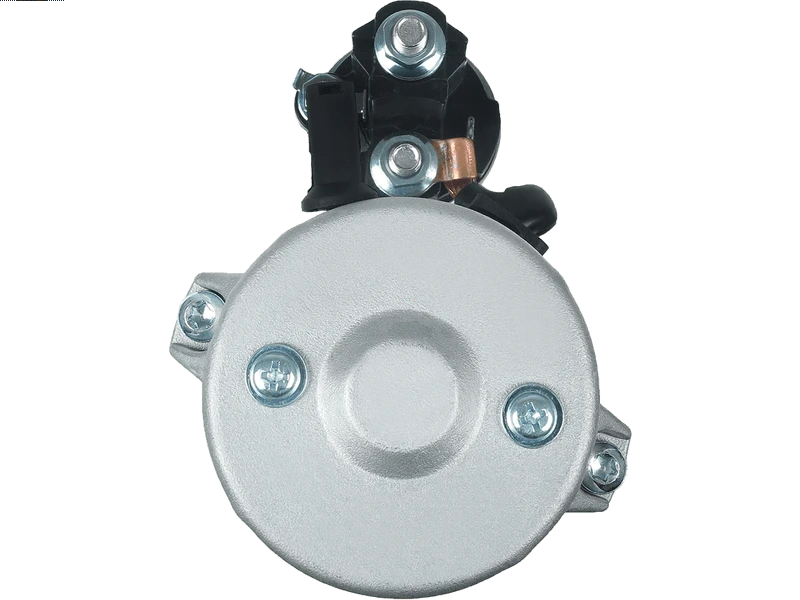

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 509.01 including GST
NZ$ 442.62 excluding GST
or four payments of $127.25
with
Learn More
each
S6505S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
438000-1980Specifications
| Kilowatt | 1.90 kW |
| Length (L.1) | 247 mm |
| Mount Hole Center - Center (O.1) | 92 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 13 qty |
| OEM Product | No |
| Pinion at Rest (B) | 25 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 70 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JAGUAR | F-Pace 2.0 SD4 AWD | [204DTA] | 02.2017- |
| JAGUAR | F-Pace 2.0 TD4 | [204DTD] | 02.2017- |
| JAGUAR | F-Pace 2.0 TD4 | [204DTD] | 09.2015- |
| JAGUAR | F-Pace 2.0 TD4 | [204DTH] | 09.2015- |
| JAGUAR | F-Pace 2.0 TD4 AWD | [204DTD] | 09.2015- |
| JAGUAR | F-Pace 2.0 TD4 AWD | [204DTH] | 09.2015- |
| JAGUAR | F-Pace 2.0 Ti4 AWD | [PT204] | 02.2017- |
| JAGUAR | F-Pace 2.0 Ti4 AWD | [PT204] | 06.2017- |
| JAGUAR | XE 2.0 | [PT204] | 02.2017- |
| JAGUAR | XE 2.0 | [PT204] | 06.2017- |
| JAGUAR | XE 2.0 AWD | [PT204] | 02.2017- |
| JAGUAR | XE 2.0 AWD | [PT204] | 06.2017- |
| JAGUAR | XE 2.0 D | [204DTD] | 03.2015- |
| JAGUAR | XE 2.0 D AWD | [204DTA] | 02.2017- |
| JAGUAR | XE 2.0 D AWD | [204DTD] | 10.2015- |
| JAGUAR | XE P250 2.0 | [204PT] | 09.2022- |
| JAGUAR | XF 2.0 | [PT204] | 03.2017- |
| JAGUAR | XF 2.0 | [PT204] | 06.2017- |
| JAGUAR | XF 2.0 AWD | [PT204] | 03.2017- |
| JAGUAR | XF 2.0 AWD | [PT204] | 09.2017- |
| JAGUAR | XF 2.0 AWD Sportbrake | [PT204] | 08.2018- |
| JAGUAR | XF 2.0 D | [204DTA] | 03.2017- |
| JAGUAR | XF 2.0 D | [204DTD] | 05.2015- |
| JAGUAR | XF 2.0 D | [204DTH] | 05.2015- |
| JAGUAR | XF 2.0 D AWD | [204DTA] | 03.2017- |
| JAGUAR | XF 2.0 D AWD | [204DTD] | 03.2016- |
| JAGUAR | XF 2.0 D AWD | [204DTH] | 03.2016- |
| JAGUAR | XF 2.0 D AWD Sportbrake | [204DTA] | 07.2017- |
| JAGUAR | XF 2.0 D AWD Sportbrake | [204DTD] | 07.2017- |
| JAGUAR | XF 2.0 D Sportbrake | [204DTD] | 07.2017- |
| JAGUAR | XF 2.0 D Sportbrake | [204DTH] | 07.2017- |
| JAGUAR | XF 2.0 Sportbrake | [PT204] | 07.2017- |
Reference Information
| 20432374OE | REAL |
| 25-5259 | ELSTOCK |
| 256294D | KUHNER |
| 3709 | CEVAM |
| 438000-1980 | DENSO |
| 438000-1981 | DENSO |
| 438000-1982 | DENSO |
| 438080-1982 | DENSO |
| 6040473.1 | SANDO |
| 840.514.132.058 | PSH |
| 840.514.132.260 | PSH |
| 88214477 | POWERMAX |
| AEX1357 | AUTOELECTRO |
| CGB-55259 | AINDE |
| CST40473GS | CASCO |
| DENDSN1424 | WOODAUTO |
| DSN1424 | DENSO |
| GX73-11001-BC | FORD |
| GX73-11001-BD | FORD |
| LR126124 | LAND ROVER |
| LRS04096 | LUCAS |
| LRS4096 | LUCAS |
| STN2747 | KRAUF |
| T2H2229 | JAGUAR |
| T2H26803 | JAGUAR |
| UD100986S | AS-PL |
