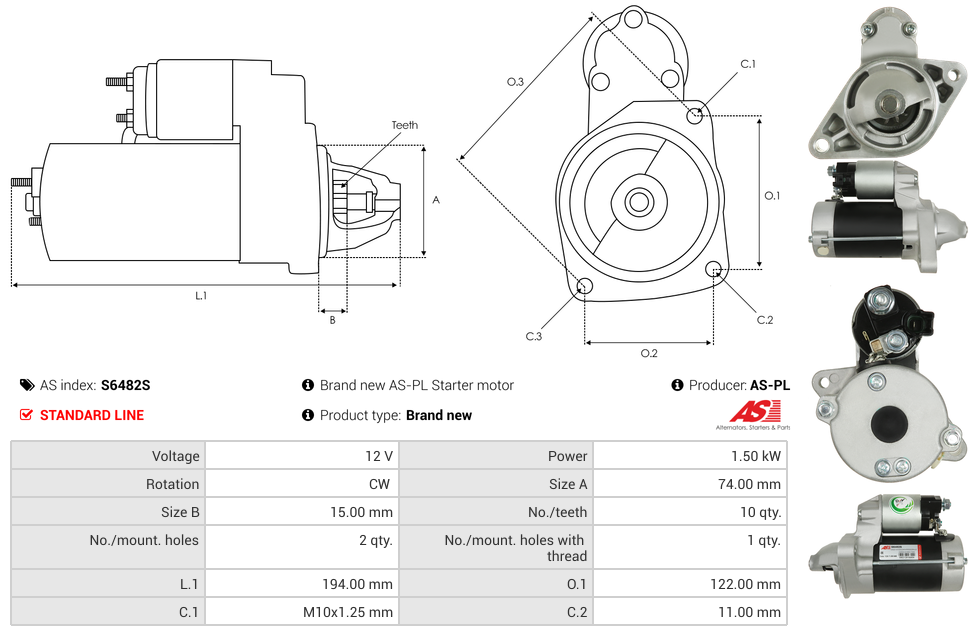

Specifications
Kilowatt | 1.5 kW |
Length (L.1) | 194 mm |
Mount Hole Center - Center (O.1) | 122 mm |
Mount Hole Diameter (C.1) | M10x1.25 mm |
Mount Hole Diameter (C.2) | 11 mm |
No./Mount holes | 2 qty |
No./Mount holes with thread | 1 qty |
No./Teeth | 10 qty |
Pinion at Rest (B) | 15 mm |
Rotation | CW |
Spigot Diameter (A) | 74 mm |
Unit Type | DENSO |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
TOYOTA | Corolla 1.8 | 01.2011-12.2014 |
Reference Information
28100-0T300 UD17278S 438000-1190Add Your Number
